Chapter 2: Pre-installation Guide:
Unpacking & placing of GENIUS Compact optical sorter
2/12
Operators & Maintenance Manual GENIUS Compact Version UK 0.1 © BESTnv
Pulsarr Industrial Research BV, Marinus van Meelweg 20, 5657 EN, EINDHOVEN, THE NETHERLANDS
General tel. +31 (40) 292 2622 - Service tel. +31 (40) 292 2620 - Fax. +31 (40) 292 2633 - Email: service.pulsarr@bestnv.com

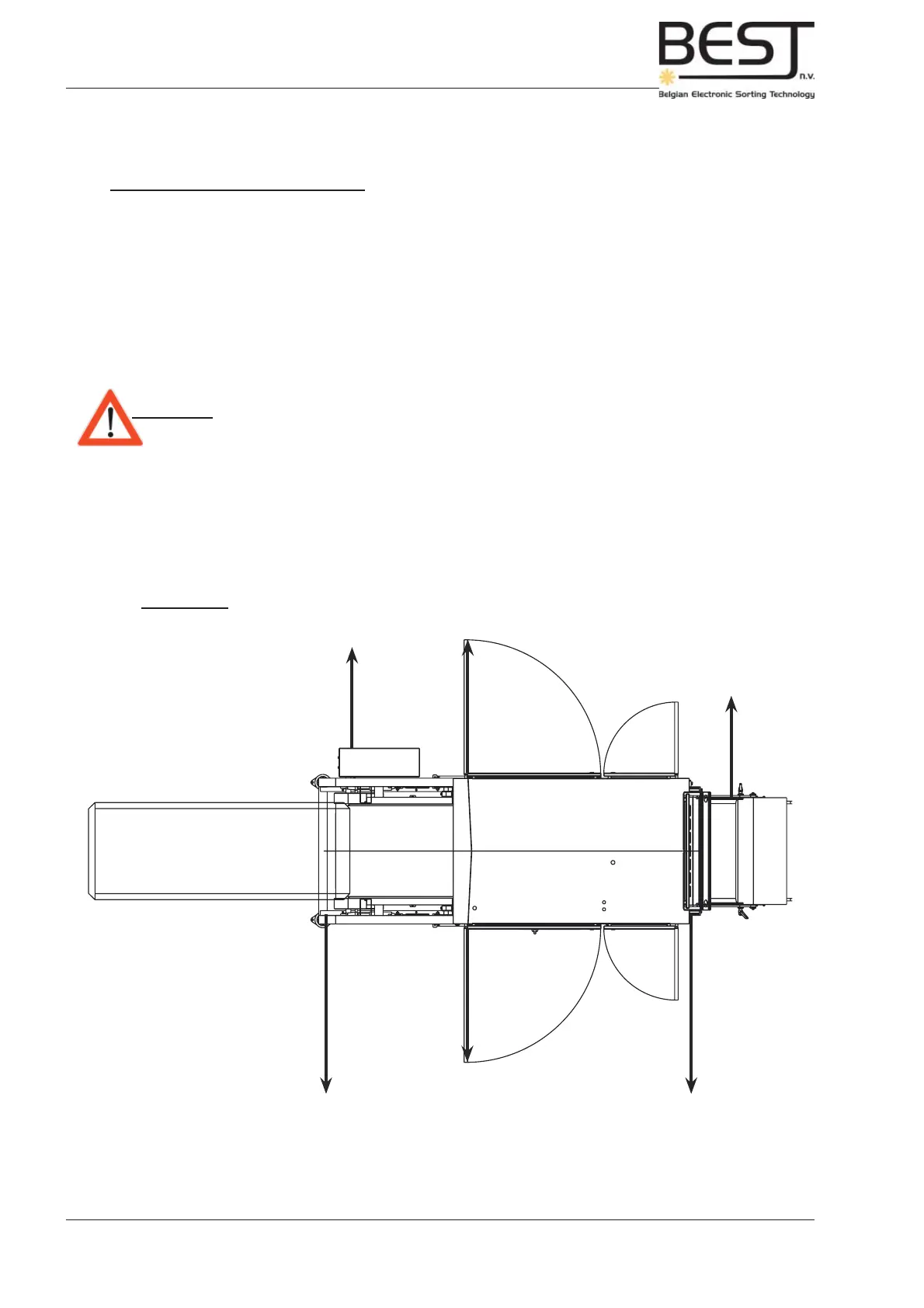

Picture 2.5.1: Top view of GENIUS sorter installation with space for doors and servicing
0.5 m
(20.0”)
0.5 m
(20.0”)
0.8 m
(31.5”)
0.8 m
(31.5”)
0.65 to 1.2 m
(25.6” to 74.3”)
0.65 to 1.2 m
(25.6” to 74.3”)
Laser box
(option)
Control cabinet
Transport
belt
Belt motor
Infeed shaker
2.5. Full Pre-installation list
2.5.1. Preparation of the area
When preparing the area where the GENIUS Compact optical sorter is to be installed, all factors that
might impede its proper functioning should be avoided (vibrating fl oors, contact with other machines,
extreme temperature variations, etc...). The Purchaser therefore has to arrange this with BESTnv in
advance. The Purchaser will be responsible for providing and preparing the area where the optical sorter
unit, the infeed and accept/reject shaker(s)/belt(s) and all other accessories or optional equipment are
to be installed. He will have to prepare this area before the date of delivery. Drawings of the GENIUS
Compact sorter installation will be provided with the order confi rmation by BESTnv after the signing of
the contracts.
Attention: - Make sure to allow enough space (minimum 0.8 m / 31.5”) for the opening of
all cabinet doors on both sides of the GENIUS Compact.
- There also has to be enough free space (minimum 0.5 m / 20”) on both sides
(left and right) of the GENIUS Compact to allow free access to all parts.
- At one side of the GENIUS Compact sorter unit, opposite to the drum drive
motor, it is advisable to leave extra space (min. 0.65 m / 25.6” for the GENIUS
Compact 650 and 1.2 m / 74.3” for the GENIUS Compact 1200) to enable the
replacement of the detection (transport) belt and the reversing axle/bull nose.
