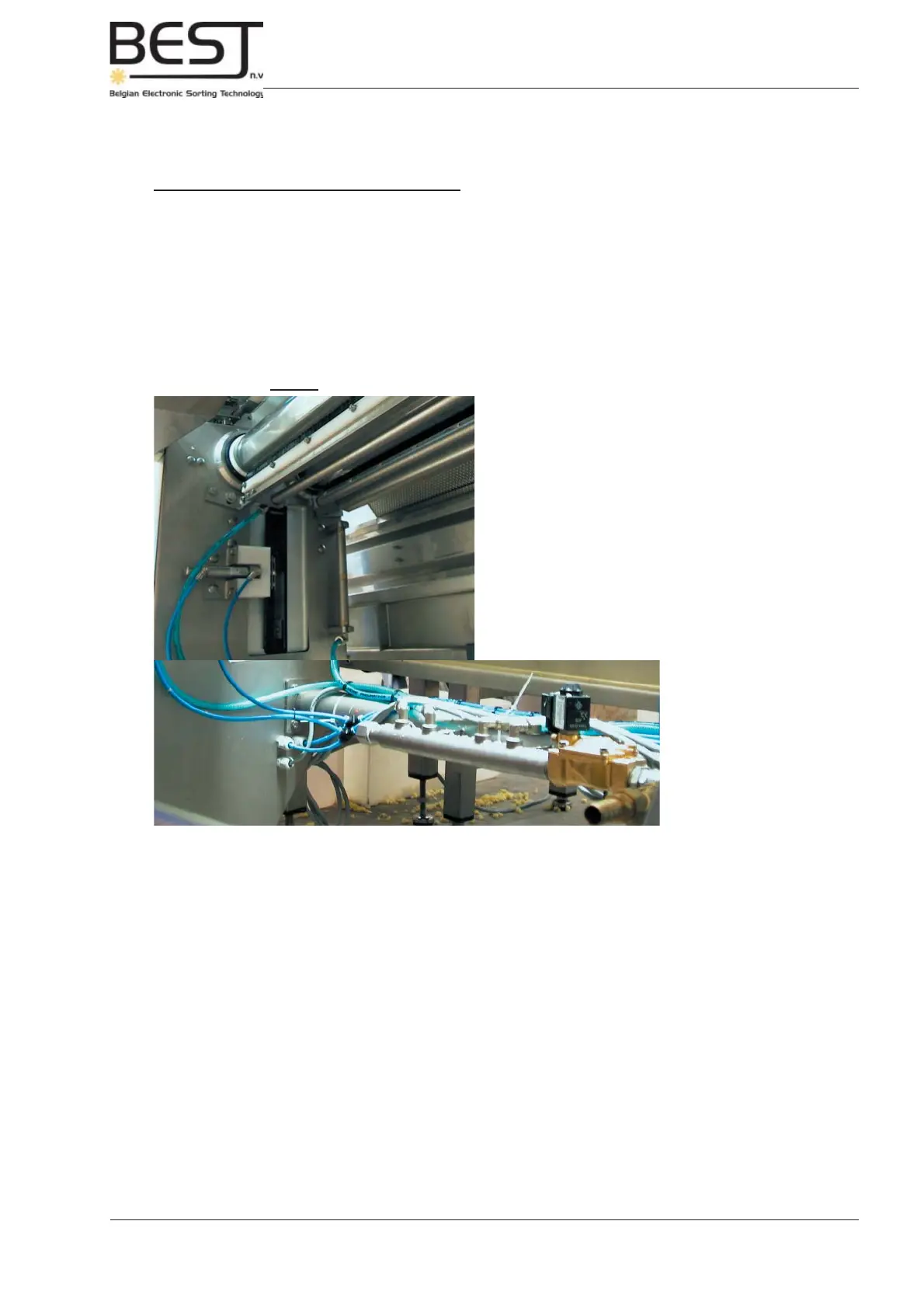

Picture: View underneath GENIUS Compact with FSV-system
A: Input water for CIP-system
B: Wiper for window of left FSV-unit
C: Brushes and Sprinklers for lower rotating light tubes
A
C
B
C
11.4. Cleaning
11.4.1. CIP (Clean In Place)-system
Due to the fact that the camera windows of the FSV-system cameras are below the level product stream,
they are more prone to pollution with dust, dirt and/or spilling water etc. .. than other cameras. To ensure
that the camera windows of the bottom unit stay clean a CIP (Clean In Place) system was developed.
The CIP-system consists of water sprinklers and scrapers to clean the 2 lower light tubes that are
continuously rotating, and wipers in front of each camera window to remove all dust and dirt.
The upper light tube also rotates but is only supplied with a scraper. It is situated above the product
stream and should get less dirty than the lower tubes..
11/5
Chapter 11: FSV-system
Operators & Maintenance Manual GENIUS Compact Version UK 0.1 © BESTnv
