Chapter 2: Pre-installation Guide:
Unpacking & placing of GENIUS Compact optical sorter
2/16
Operators & Maintenance Manual GENIUS Compact Version UK 0.1 © BESTnv
Pulsarr Industrial Research BV, Marinus van Meelweg 20, 5657 EN, EINDHOVEN, THE NETHERLANDS
General tel. +31 (40) 292 2622 - Service tel. +31 (40) 292 2620 - Fax. +31 (40) 292 2633 - Email: service.pulsarr@bestnv.com

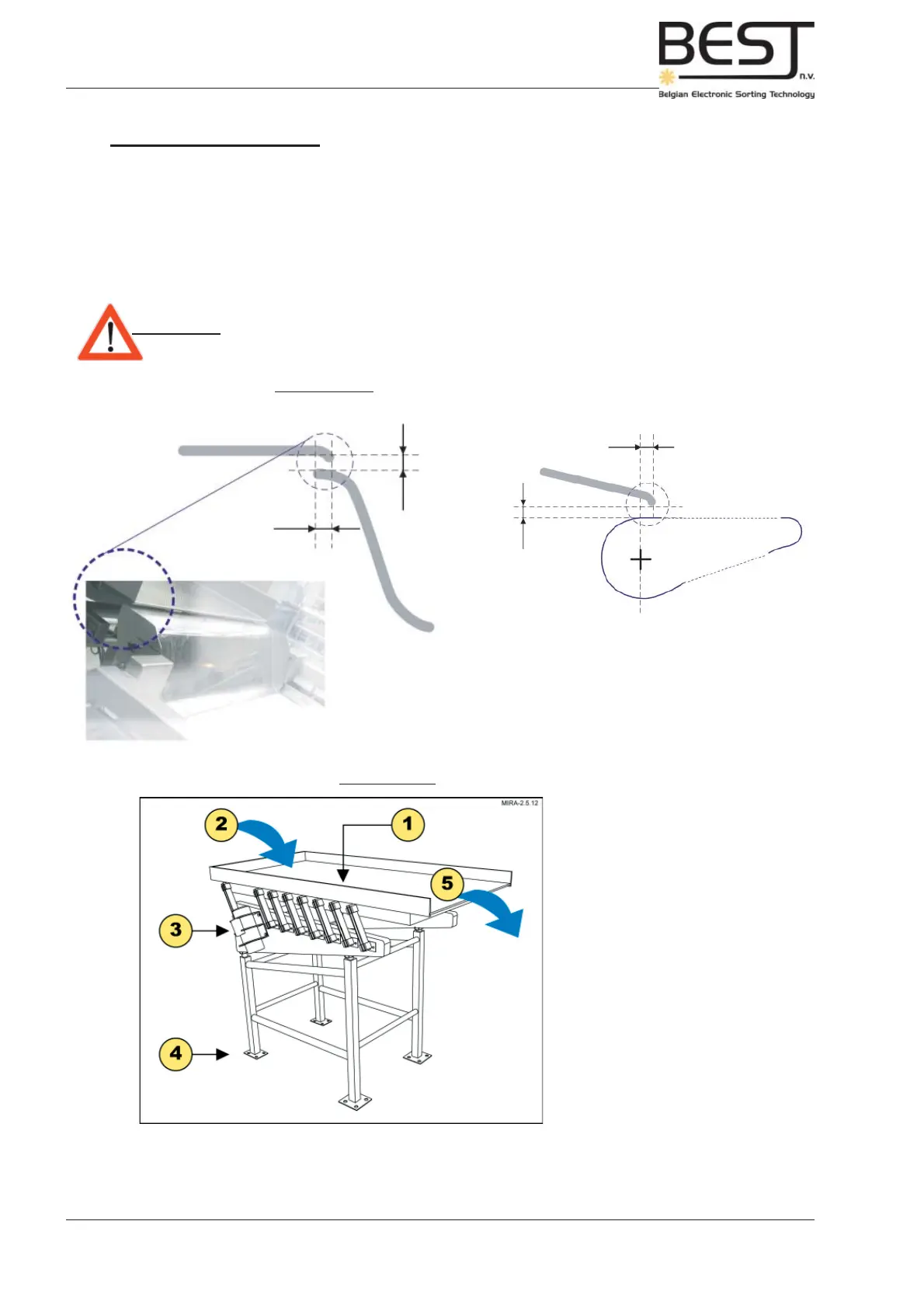

Picture 2.5.11: Relative position of infeed shaker
(sorter without infeed chute)(sorter with infeed chute)
Picture 2.5.12: Infeed Shaker
Infeed
chute
Infeed
shaker
A
B
A = 1.0 cm
(0.4”)
B = 1.0 cm (0.4”)
A
B
Infeed
shaker
Transport belt
2.5.3. The infeed shaker
The infeed shaker arrives on a separate pallet or crate. The Purchaser will take care of the mechanical
mounting of the infeed shaker and put it in position in front of the sorter unit. The distance between the
infeed shaker and the machine should be as indicated in the drawing below. The distance between the
nose of the infeed shaker and the infeed chute of the machine should be approximately 1.0 cm. The fi nal
position of the infeed shaker depends on the product and will be determined by BESTnv’s service engineer
during the installation, therefore it is important not to fi x the shaker or/and sorter unit to the fl oor.
Attention : - Do not fi x the shaker frame to the fl oor before the fi nal position has been
determined by BESTnv’s service engineer during commissioning.
The infeed shaker is electrically controlled by the GENIUS Compact sorter unit, and all wiring has been
provided by BESTnv. The necessary connections will be made by the installation engineer inside the
GENIUS Compact sorter unit.
1. Shaker table
2. Product infeed shaker
3. Shaker motors
4. Adjustable feet
5. Product outfeed (towards
sorter)
