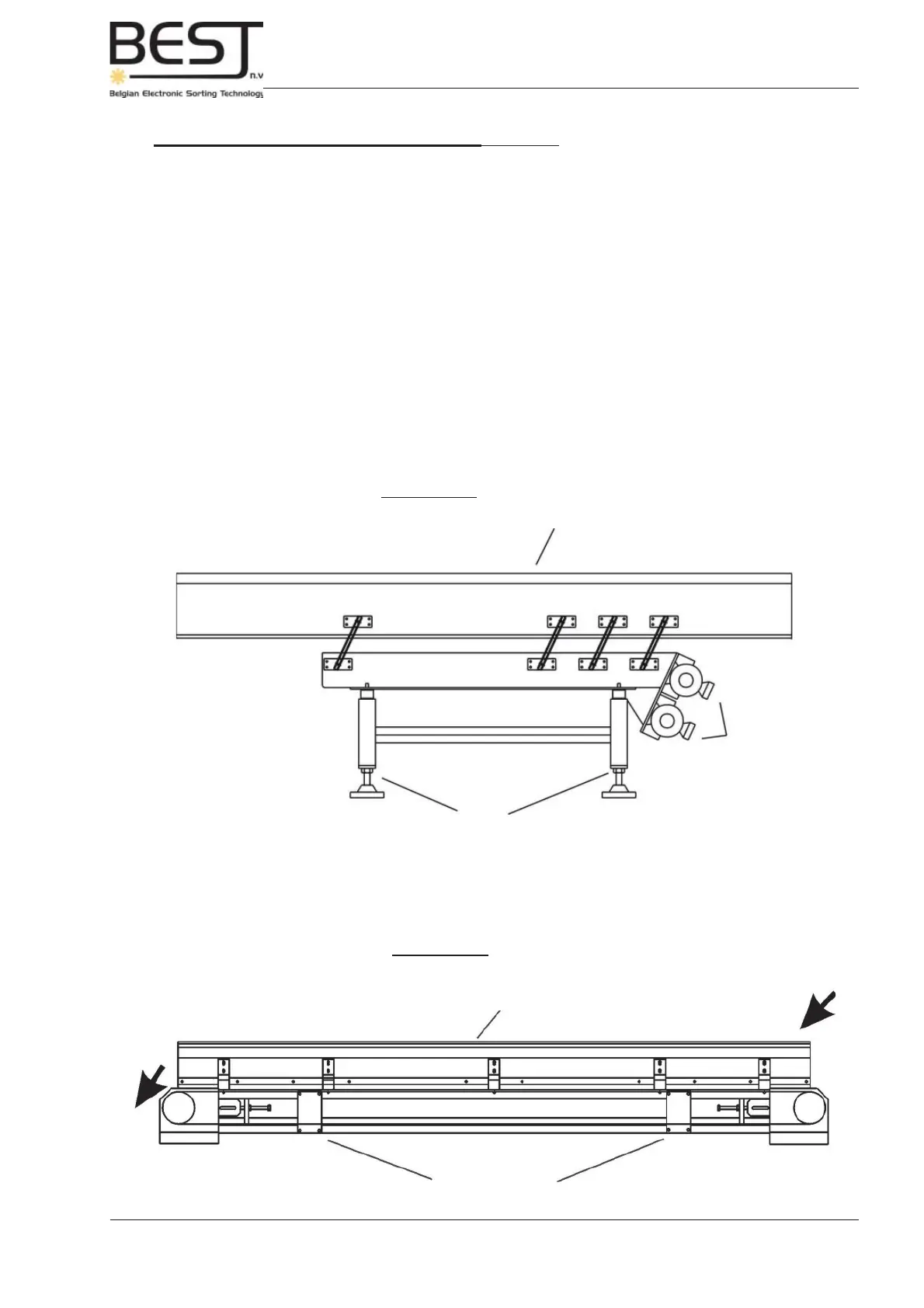

Picture 2.5.17 : Reject Shaker
Picture 2.5.18 : Reject Belt
Adjustable feet
Shaker motors
Shaker table
Conveyor belt
IN
Supports
OUT
2.5.4. Accept/Reject shakers or belts (optional)
- In some cases the accept/reject shakers/belts have already been mounted and fi xed underneath the
sorter unit in the factory before the sorter installation is shipped.
- When the shakers/belts still have to be installed, the customer will take care of the mechanical mounting
without welding or drilling holes in the machine, using clamps or other fastening devices. Please note
that it is always advisable to place the output sides of shakers/belts on the side of the touchscreen, so
as to enable the operators to easily check the accept and the reject (e.g. the percentage of good product
in the reject) while setting the sensitivities.
- The accept/reject shakers or belts are electrically controlled by the GENIUS Compact sorter unit,
and if the shakers/belts were not provided and mounted by BESTnv, the purchaser has to provide the
necessary cables and wiring (+/- 4 m / 13 ft) to enable the installation engineer to connect the shakers/
belts with the sorter unit.
