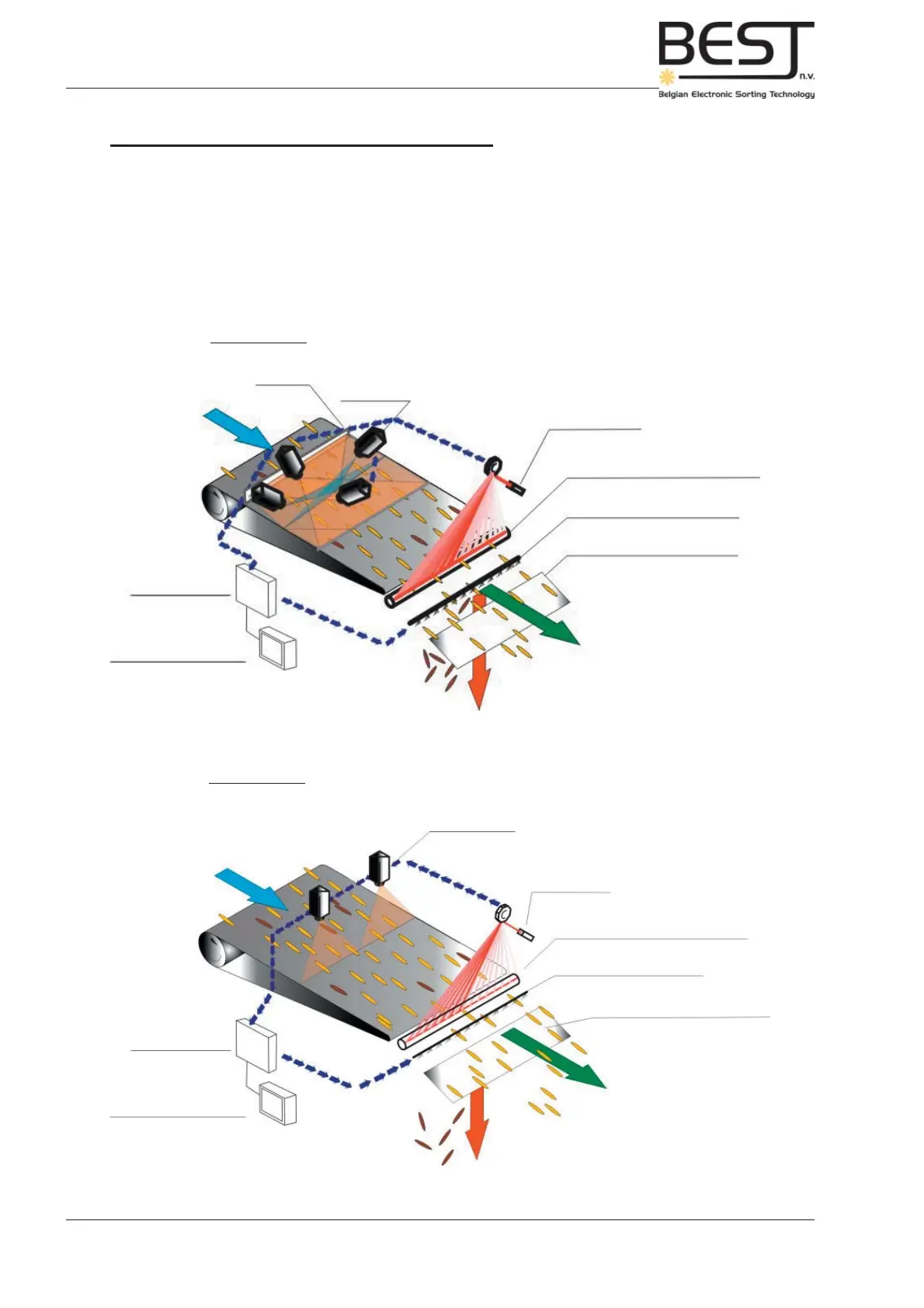

Picture 3.1.6a: GENIUS Compact-D confi guration (with 4 cameras)
Picture 3.1.6b: GENIUS Compact-D confi guration (with 2 camera’s)
Computer
Touchscreen
Ejection unit
Separation plate
Good product
Defects
Cameras
Background drum
Infeed
Mirror
Laser system
Computer
Touchscreen
Ejection unit
Separation plate
Good product
Cameras
Background drum
Infeed
Laser system
Defects
3.1.5. The GENIUS compact-D (Dual) option
In this confi guration cameras are combined with a laser inspection system (L-option). Laser and camera
are two complementary technologies. The cameras allow colour sorting and/or shape recognition, while
the lasers are primarily used for sorting on structure. Integration of ‘FLUO’-technology is optional in this
confi guration.
A combination of the B, S and L options is usually called a Genius Compact-T, for Total, because it
combines almost all the different options and technologies.
