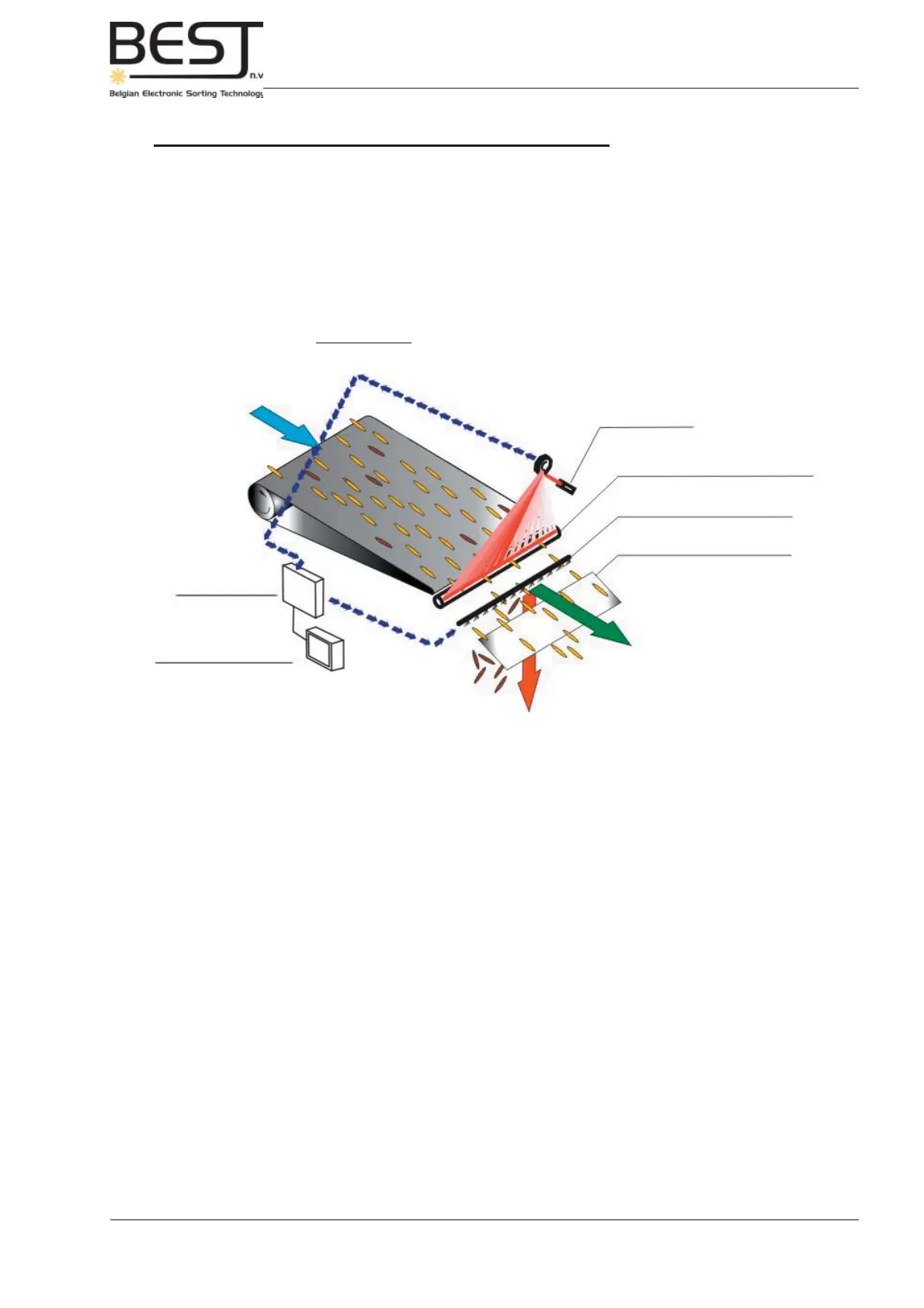

Picture 3.1.5a: GENIUS Compact-L confi guration
Computer
Touchscreen
Ejection unit
Separation plate
Good product
Defects
Background drum
Infeed
Laser system
3.1.4. The GENIUS Compact-L (Laser) confi guration
In this confi guration a laser box containing max 2 lasers will be used to inspect the product in the third
scan zone, just after the belt (scan zone 3). This laser technology is especially suited for structural sorting,
though limited colour sorting is also available using different laser colours.
When an L option is combined with any of the B camera options, this is called a GENIUS Compact-D
(Dual -sorter), see further.
