Chapter 3: Theory
Operators & Maintenance Manual GENIUS Compact Version UK 0.1 © BESTnv
BESTnv Industrial Research BV, Marinus van Meelweg 20, 5657 EN, EINDHOVEN, THE NETHERLANDS
General tel. +31 (40) 292 2622 - Service tel. +31 (40) 292 2620 - Fax. +31 (40) 292 2633 - Email: service.BESTnv@bestnv.com

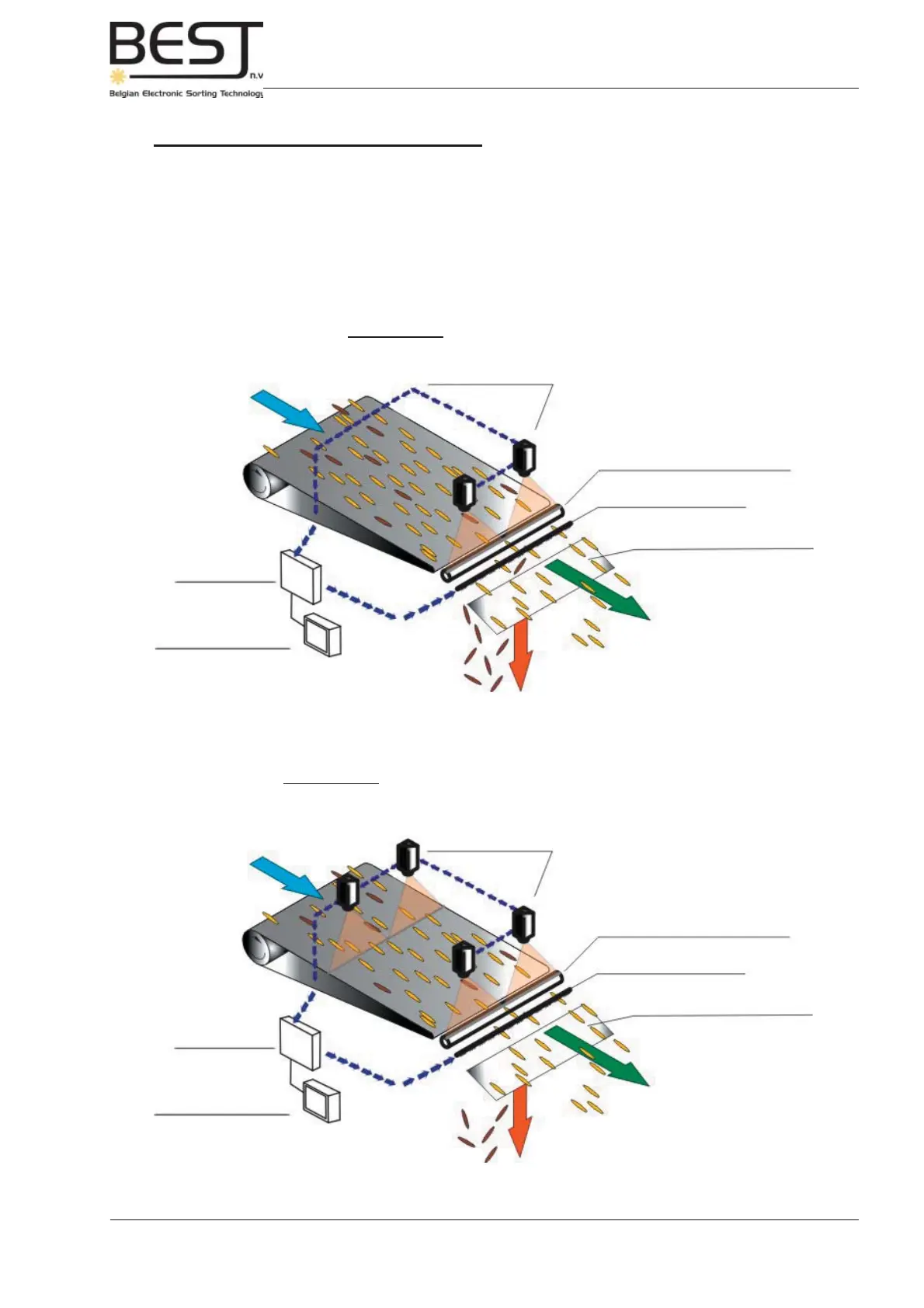

Picture 3.1.3b: GENIUS-N confi guration (combined with B)
Picture 3.1.3a: GENIUS-N confi guration
Computer
Touchscreen
Ejection unit
Separation plate
Good product
Defects
Cameras
Background drum
Infeed
Computer
Touchscreen
Ejection unit
Separation plate
Good product
Defects
Cameras
Background drum
Infeed
3.1.2. The GENIUS Compact-N option
In this confi guration 2 cameras will be used to inspect the product in the second scan zone, just after
the belt (scan zone 2) over a background drum. This confi guration is especially suited for sorting thin
products that are not very stable. Because the product is scanned just before the ejection unit, any
deviations from the normal trajectory are so small they can easily be ignored, thus greatly increasing
the sorting effi ciency.
This option cannot be combined with the L (Laser Box option).
