Chapter 3: Theory
3/4
Operators & Maintenance Manual GENIUS Compact Version UK 0.1 © BESTnv
BESTnv Industrial Research BV, Marinus van Meelweg 20, 5657 EN, EINDHOVEN, THE NETHERLANDS
General tel. +31 (40) 292 2622 - Service tel. +31 (40) 292 2620 - Fax. +31 (40) 292 2633 - Email: service.BESTnv@bestnv.com

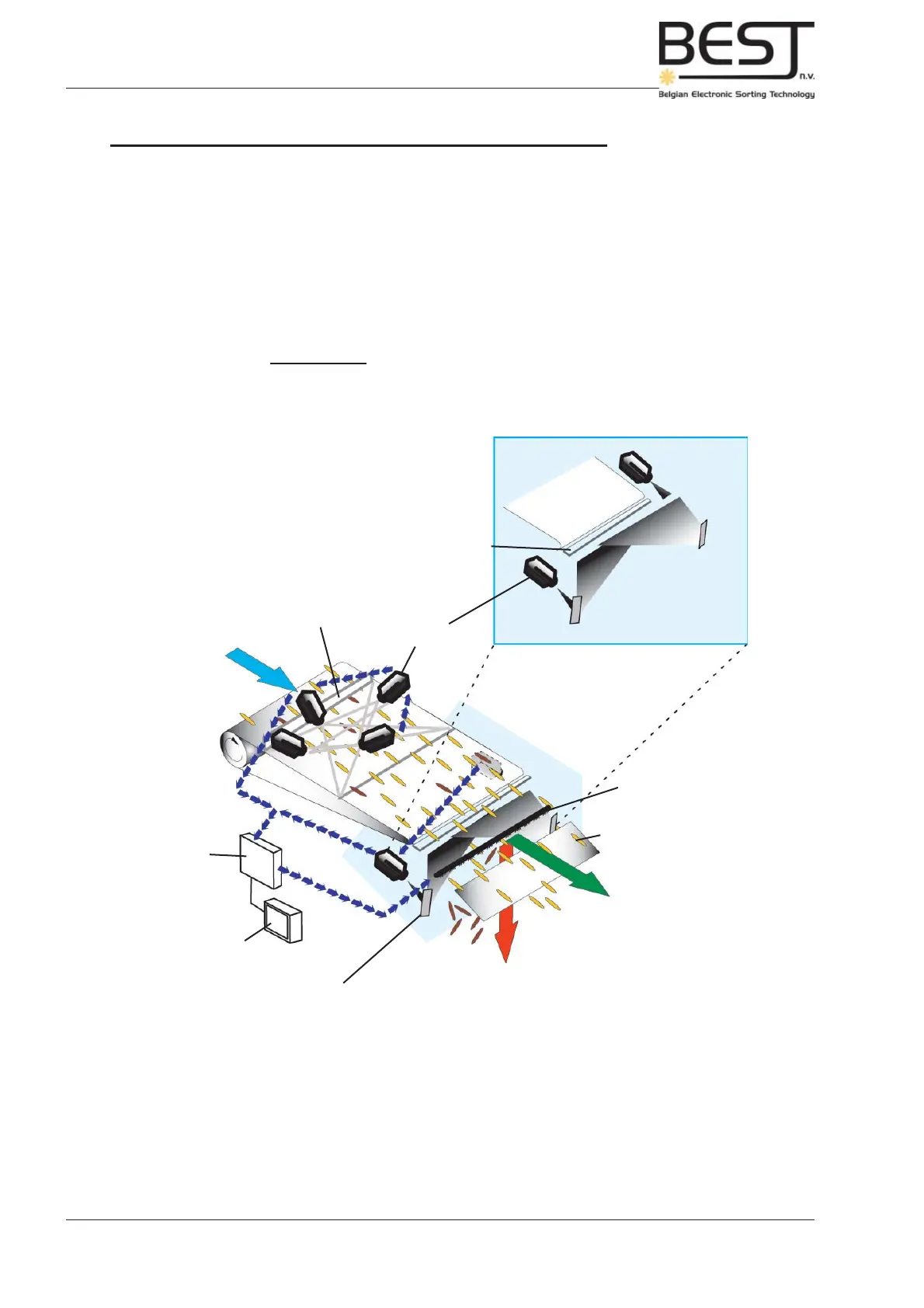

Picture 3.1.4a: GENIUS Compact-S confi guration
Computer
Touchscreen
Ejection unit
Separation plate
Good product
Defects
Cameras
Background strip
Infeed
Mirror
Cleaning In Place (CIP)
system + mirrors
3.1.3. The GENIUS Compact-S (Surround/bottom) option
This option is usually integrated in the FSV (‘full surround view’) inspection system. This system combines
bottom camera inspection (S-option) of the product with the standard top inspection (option B, 4 cameras
under an angle). The product will therefore be viewed from all angles.
For practical reasons the bottom cameras are not placed directly underneath the inspection zone, but on
the side of the machine, using mirrors to inspect the underside of the product with help of a background
strip. Together with the CIP system, this will keep the bottom cameras clean at all times.
