Chapter 3: Theory
3/2
Operators & Maintenance Manual GENIUS Compact Version UK 0.1 © BESTnv
BESTnv Industrial Research BV, Marinus van Meelweg 20, 5657 EN, EINDHOVEN, THE NETHERLANDS
General tel. +31 (40) 292 2622 - Service tel. +31 (40) 292 2620 - Fax. +31 (40) 292 2633 - Email: service.BESTnv@bestnv.com

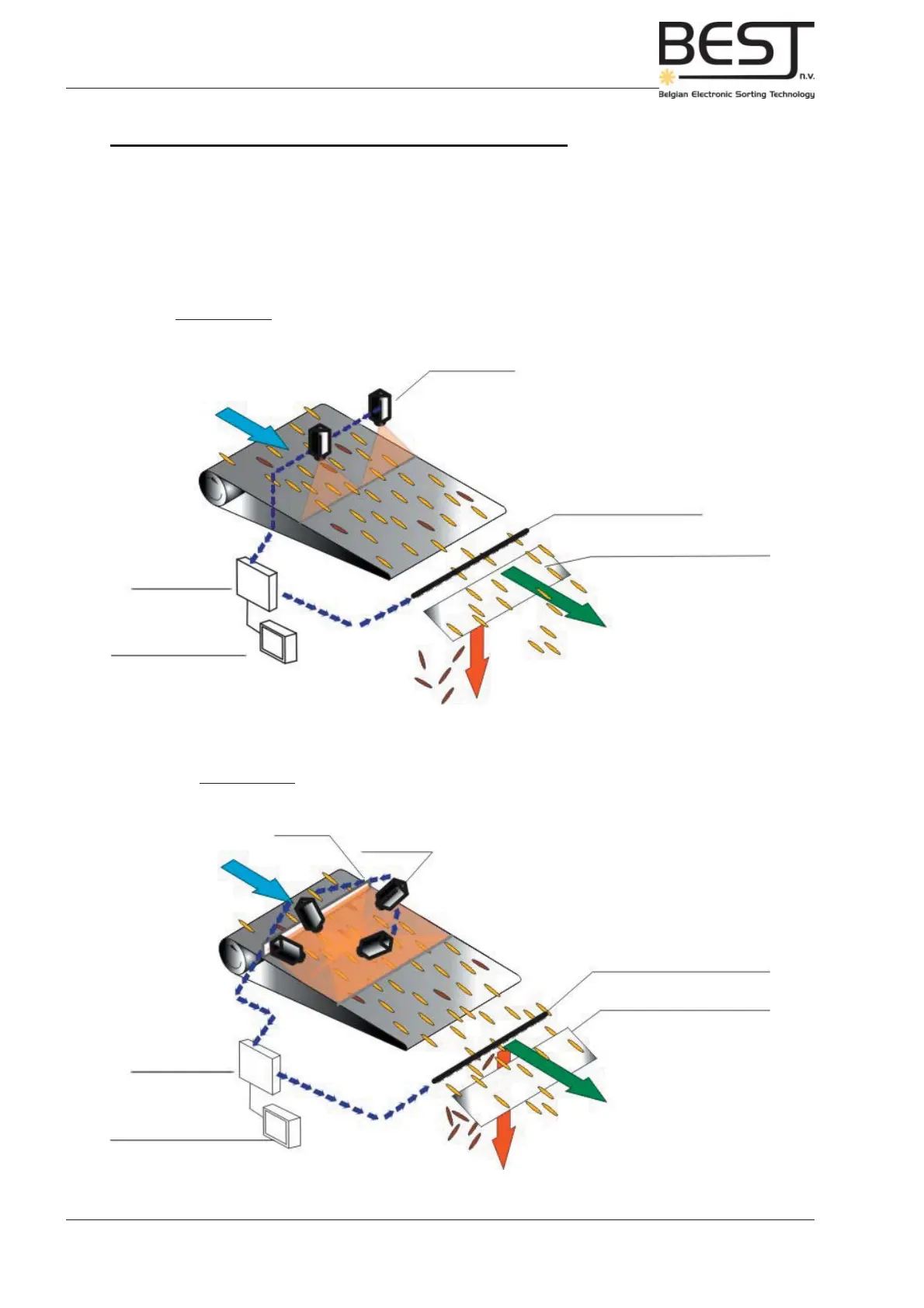

Picture 3.1.1a: GENIUS Compact-B confi guration (2 cameras; perpendicular)
Picture 3.1.1c: GENIUS Compact-B confi guration (4 cameras; angled)
Infeed
Infeed
Cameras
Cameras
Mirror
Computer
Touchscreen
Computer
Touchscreen
Ejection unit
Ejection unit
Separation plate
Separation plate
Good product
Good product
Defects
Defects
3.1.1. The GENIUS Compact-B (Basic) confi guration
In this basic confi guration of the GENIUS Compact several cameras (2, 4 or 6) will be used to inspect
the product in the fi rst scan zone on the belt (scan zone 1). The cameras can be placed perpendicular
to the belt, or looking under an angle or a combination of the 2. Perpendicular cameras can be used to
inspect fl at products or to perform shape sorting (see picture 3.1.1a & b). When the product is rounder,
such as a potatoes, the cameras will be placed under an angle (see picture 3.1.1c), to see as much of
the surface of the product as possible. Cameras can be either monochrome (black and white) or colour
cameras.
