Chapter 9: The Touchscreen program
Operators & Maintenance Manual GENIUS Compact Version UK 0.1 © BESTnv
BESTnv Industrial Research BV, Marinus van Meelweg 20, 5657 EN, EINDHOVEN, THE NETHERLANDS
General tel. +31 (40) 292 2622 - Service tel. +31 (40) 292 2620 - Fax. +31 (40) 292 2633 - Email: service.BESTnv@bestnv.com
Frame Grab Visualisation Submenu
Features:
Main screen: This screen will feature the Frame Grab image.
New Frame Grab button: Press this button to take a new Frame Grab.
(For more info, please check chapter 5: Routine Operation Procedures)
Signal Selection tab: If this Tab is activated, the user can check the effect of the different thresholds
on the Frame Grab image.
Histogram tab: If this Tab is activated, the user can indicate the good product and the defects
on the Frame Grab image.

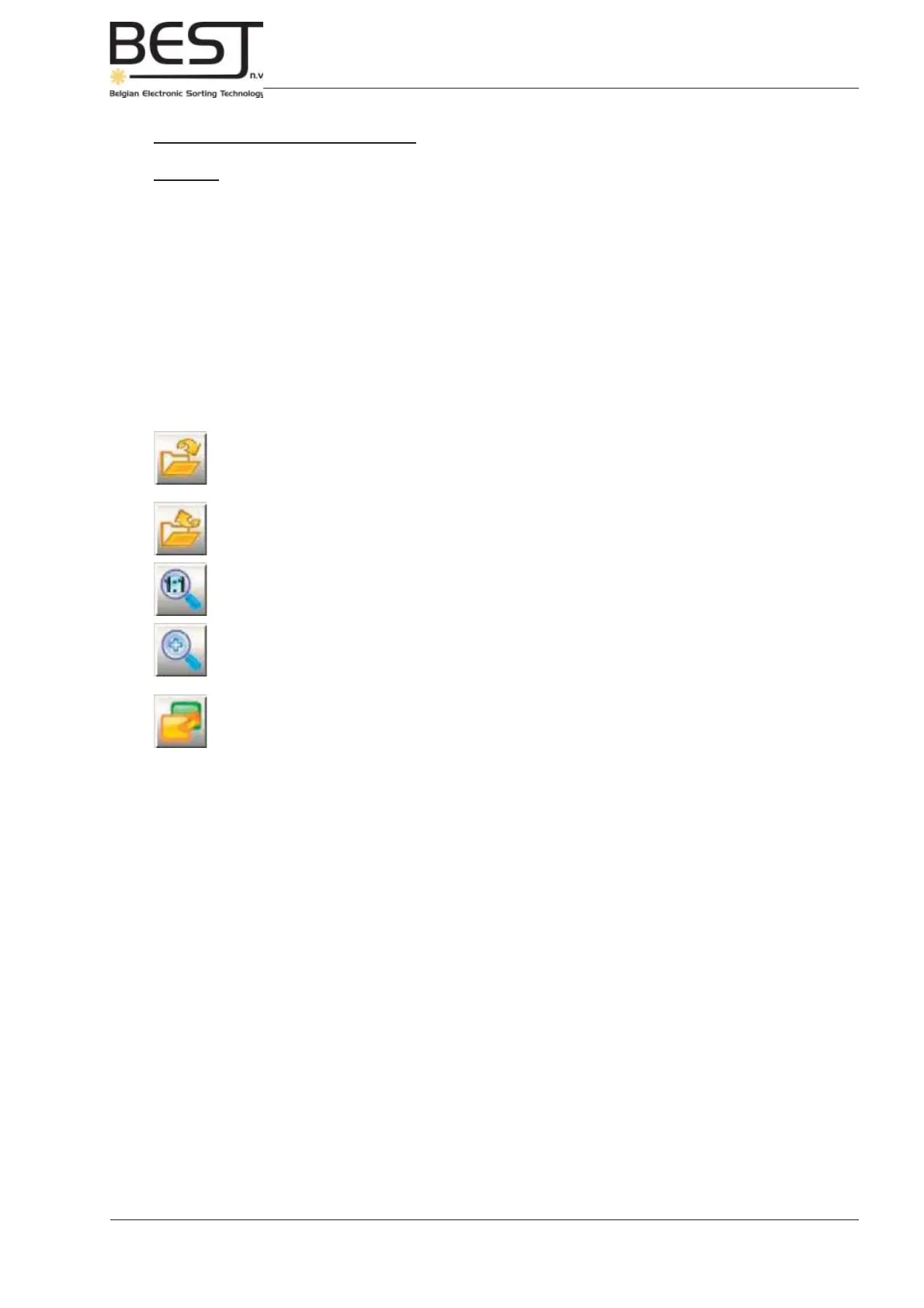

A number of function buttons underneath the Frame Grab image:
- Save Frame Grab image: Press this button to save the Frame Grab image presently on the
screen, a pop-up screen will appear allowing you to choose a slot where
you want to save the image.
- Load Frame Grab image: Press this button to load a Frame Grab image, a pop-up screen
will appear allowing you to choose the image(slot) you want to load.
- Show entire Frame Grab Image: When this button is pressed, the complete Frame Grab
image will be shown on the screen.
- Zoom in Frame Grab image: Press this button to zoom in on a specifi c detail of the Frame
Grab image. Use the sliding bars next to and underneath the image to
navigate in the image.
- Mask Frame Grab image: When this button is pressed, a grey mask will be put over the
Frame Grab image. This makes it easier to see which objects are detected
by the different threshold fi lters, because this makes the different fi lter
colours more obvious.
