Best GENIUS Compact - XI. FSV-System (continued); 11.2. Safety; 11.2.1. Interlock system FSV-system

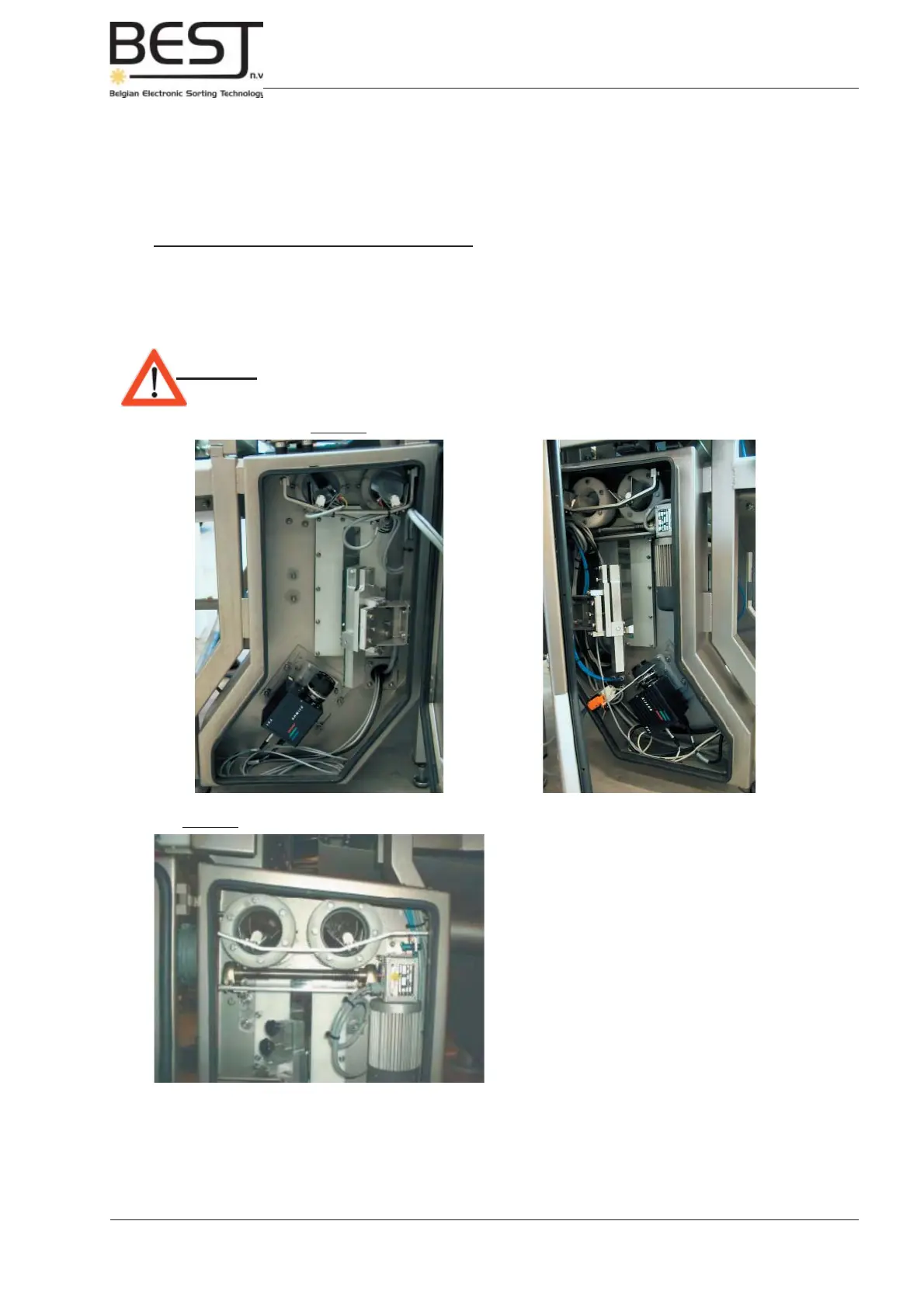

Pictures: inside view right and left unit FSV-system
Pictures: detail upper part FSV-system
A
A
B
B
C
C
D
D
A
A
A
A
E
E
F
F
G
G
G
G
11.2. Safety
Apart from the safety features that are valid for the entire installation (such as emergency buttons and
main power switch) the FSV-unit is also equipped with a separate Interlock system.
11.2.1. Interlock system FSV-system
Whenever someone opens the left door of the FSV-unit, an interlock switch will immediately switch off
the drive motor of the rotating light tubes to prevent people from getting hurt by rotating elements. The
lights in the light tubes will be switched off as well, for if they stop rotating the tubes may bend because
of the heat.
Attention! - When working on the electrical installation, make sure to switch of the sorter
using the main power switch.
A: Lower light tube openings
B: Right bottom camera
C: Left bottom camera
D: Rotating axle for lower light tubes
E: Drive motor for axle
F: Interlock switch in left unit
G: Mirrors
11/3
Chapter 11: FSV-system
Operators & Maintenance Manual GENIUS Compact Version UK 0.1 © BESTnv
