Chapter 2: Pre-installation Guide:
Unpacking & placing of GENIUS Compact optical sorter
2/20
Operators & Maintenance Manual GENIUS Compact Version UK 0.1 © BESTnv
Pulsarr Industrial Research BV, Marinus van Meelweg 20, 5657 EN, EINDHOVEN, THE NETHERLANDS
General tel. +31 (40) 292 2622 - Service tel. +31 (40) 292 2620 - Fax. +31 (40) 292 2633 - Email: service.pulsarr@bestnv.com

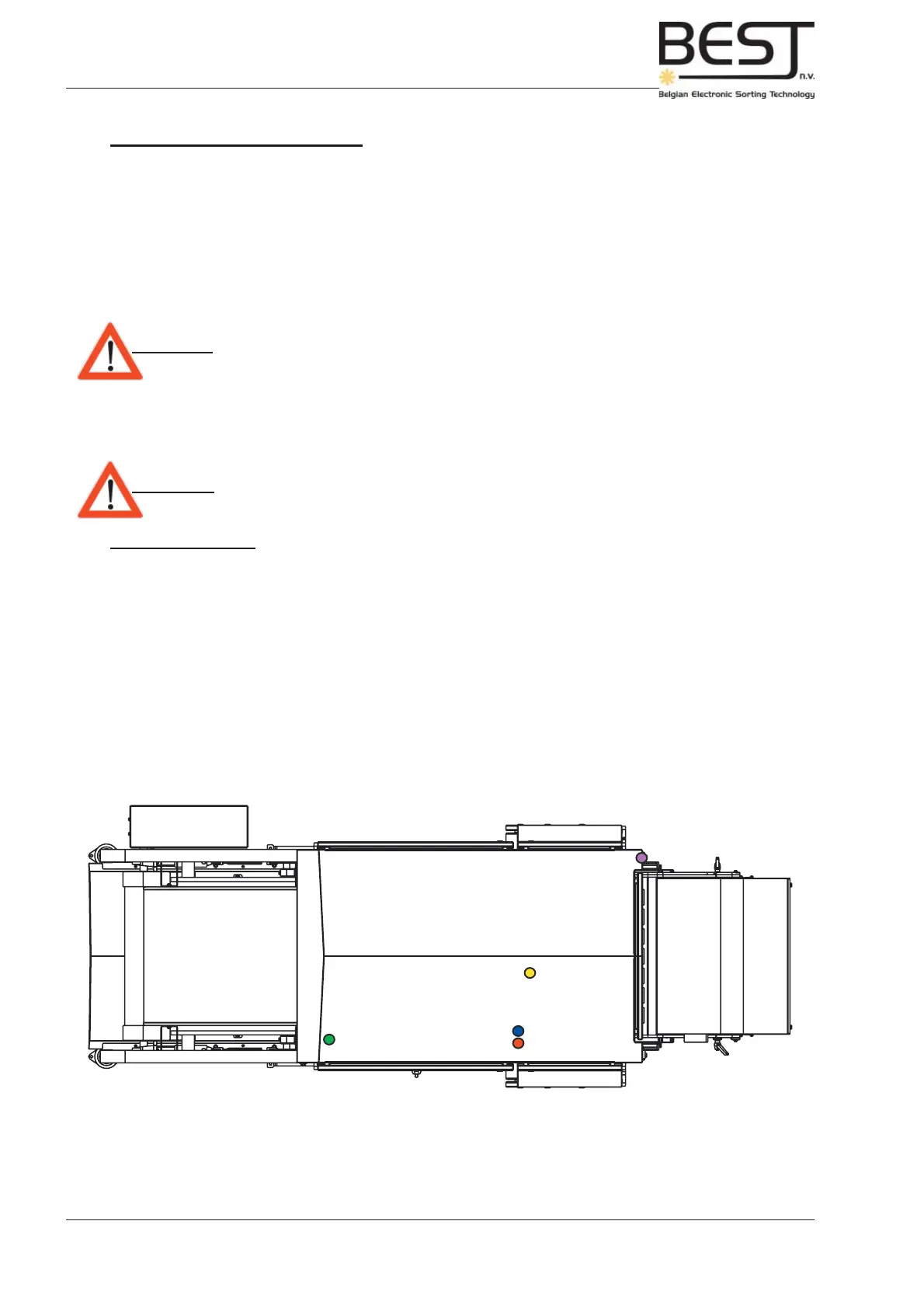

Picture: Cooling water connections on top of sorter unit
B
A
2.5.6. Cooling Unit (optional)
- The optional cooling unit is to be installed by the Purchaser at a dry and secure place and should be
installed at the same ground level as the GENIUS Compact optical sorter. The water moves in a closed
loop from the cooling unit to the sorter and back. Minor differences in height between sorter and cooling
unit should be no problem, but if placed too low, the cooling unit might lose water due to the overfl ow
mechanism. The tubing - for warm and cold water - between cooling unit and the sorter (minimum ½
inch tubing) and the electric wiring is to be provided and installed by the Purchaser (see pictures ...). The
standard cooling unit for the GENIUS Compact needs a separate electrical supply.
Attention: - The Purchaser is responsible for pressure safe piping.
- The cooling unit must be installed at least 40 cm /16” from the nearest
object, to ensure adequate air fl ow.
- Try to avoid major differences in height.
- The Cooling unit will require a separate power supply.
- It is always advisable to place the Cooling Unit in a clean setting.
WARNING : - This device will generate heat.
Water requirements
Water pressure : between 1 and 3 bar (15 to 45 psi)
Temperature : between 5°C and 12°C (41°F to 54°F)
Max. consumption : +/- 500 l/h (132 gal/h)
Connection : 14 mm (0.55”) inside, inlet and outlet
Quality : lime-free and reusable (add glycol if necessary, see cooling manual).
When using distilled or demineralized water, please pay attention to the
compatibility with the materials and to the minimum conductivity that lever
sensor may relieve (80 µS). See Cooling Manual in Attachments.
A: Water input; from cooling unit
B: Water exit; to cooling unit
