Chapter 2: Pre-installation Guide:
Unpacking & placing of GENIUS Compact optical sorter
Operators & Maintenance Manual GENIUS Compact Version UK 0.1 ©
BESTnv
Pulsarr Industrial Research BV, Marinus van Meelweg 20, 5657 EN, EINDHOVEN, THE NETHERLANDS
General tel. +31 (40) 292 2622 - Service tel. +31 (40) 292 2620 - Fax. +31 (40) 292 2633 - Email: service.pulsarr@bestnv.com

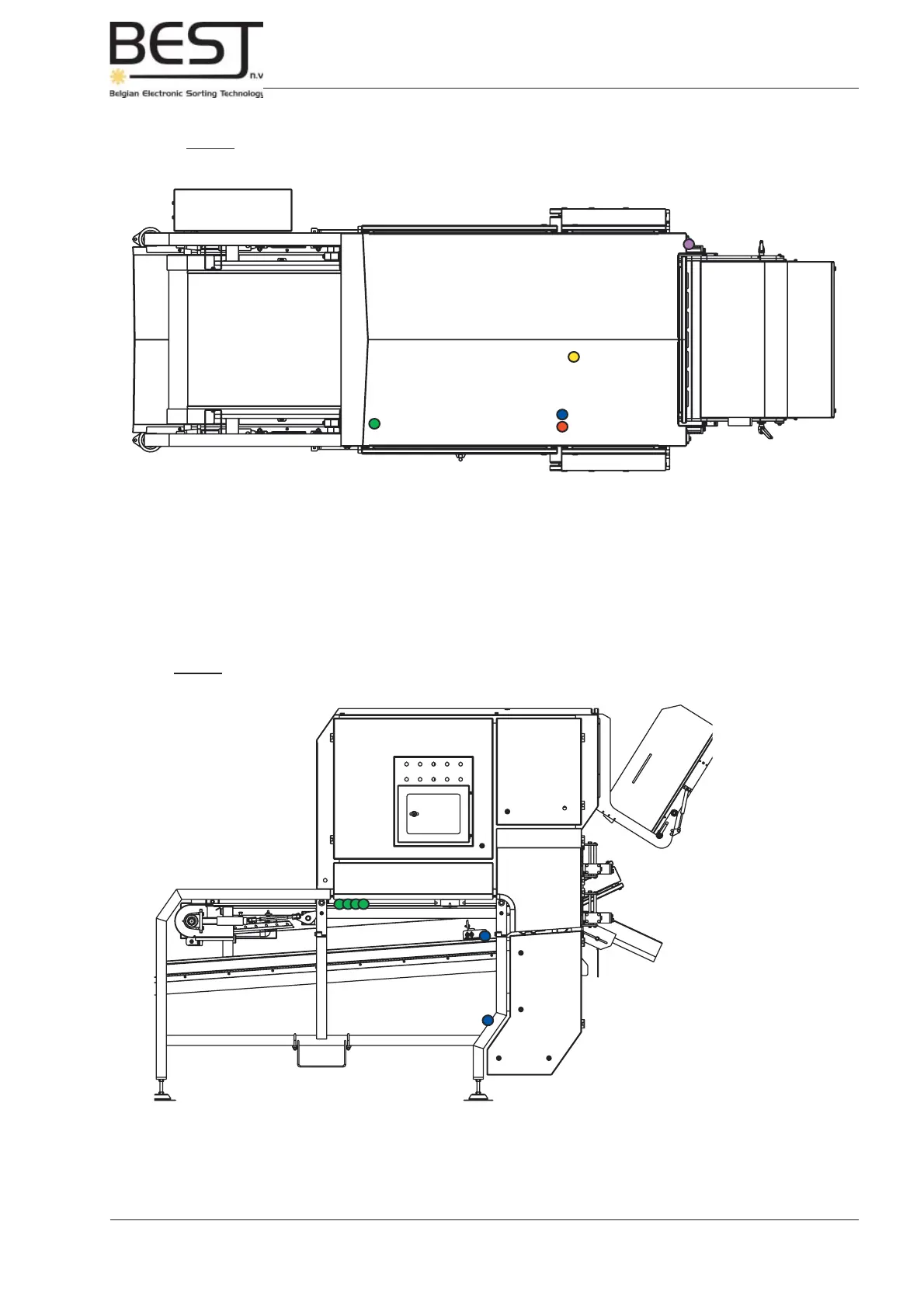

Picture: Top view Genius 640: water, electricity, nitrogen & compressed air connections
Picture: Side view Genius 640 water for cleaning & connections for belt and shaker motors
C
C
D
D
E
E
B
B
A
A
A
A
B
B
C
C
A: Water input; from cooling unit (14 mm / 0.55” inside)
B: Water exit; to cooling unit (14 mm / 0.55” inside)
C: Compressed air supply (3/4” Gaz)
D: Electricity supply sorter
E: Nitrogen connections (only with laser box option)
A: Connections to Belt motor & Shaker motors (usually on same side as belt motor).
B: Water connection for belt cleaning system
C: Water connection for cleaning syst. FSV unit (option) underneath sorter (3/4” Gaz)
