Technical / Programming Manual
FT128 Rev 2.2
56
mechanical lock (screw attached), if required. 4400 has slightly different design to
the 4300 detector and the smoke chamber net has even made with smaller holes,
this will keep insects and particles
larger than smoke particles out of the
chamber.
The COM loop address (Technical address) is set with the Address setting tool
3314 / 4414. The detector has an address label on which the programmed technical
address can be written.
The Address setting tool is also used for mode setting:
Advanced mode: Only the new Address setting tool 4414 can be used to set 4400
to “Advanced” mode. Note, the Address setting tool 3314 cannot be used to set
“Advanced” mode!
In Advanced mode, 4400 will use an algorithms in the detector for fire alarm
evaluation. It can be set to a Learning function or via EBLWin to one of five area
alarm algorithms (Normal, Clean, Smoke/Steam, Cooking/Welding or Heater area),
see Section Advanced Mode, page 127.
An alternative smoke and/or heat algorithm can be used via one or two time
channels. 4400 has a green polling LED. Via EBLWin, the green polling LED can
be set to blink when the detector is polled or never blink. Note, the LED will not be
blinking if the detector is in Test mode.
In “Advanced” mode, only one COM loop address will be occupied for the multi
detector.
NORMAL mode: 4400 in this mode has to be programmed in EBLWin as a 4300
detector, i.e. the 4400 detector will work as a replacement for the Analogue multi
detector 4300 and two COM loop addresses will be occupied, see 4300 above.
The smoke detector part has to be set to one of six alarm algorithms H-15, H-35,
L-15, L-35, N-15 or N-35 and the heat detector part has to be set to one of three
alarm algorithms for class A1 (static response temp. 54-65°C), A2 S (54-70°C) or
B S (69-85°C). An alternative smoke and/or heat algorithm can be used via one or
two time channels.

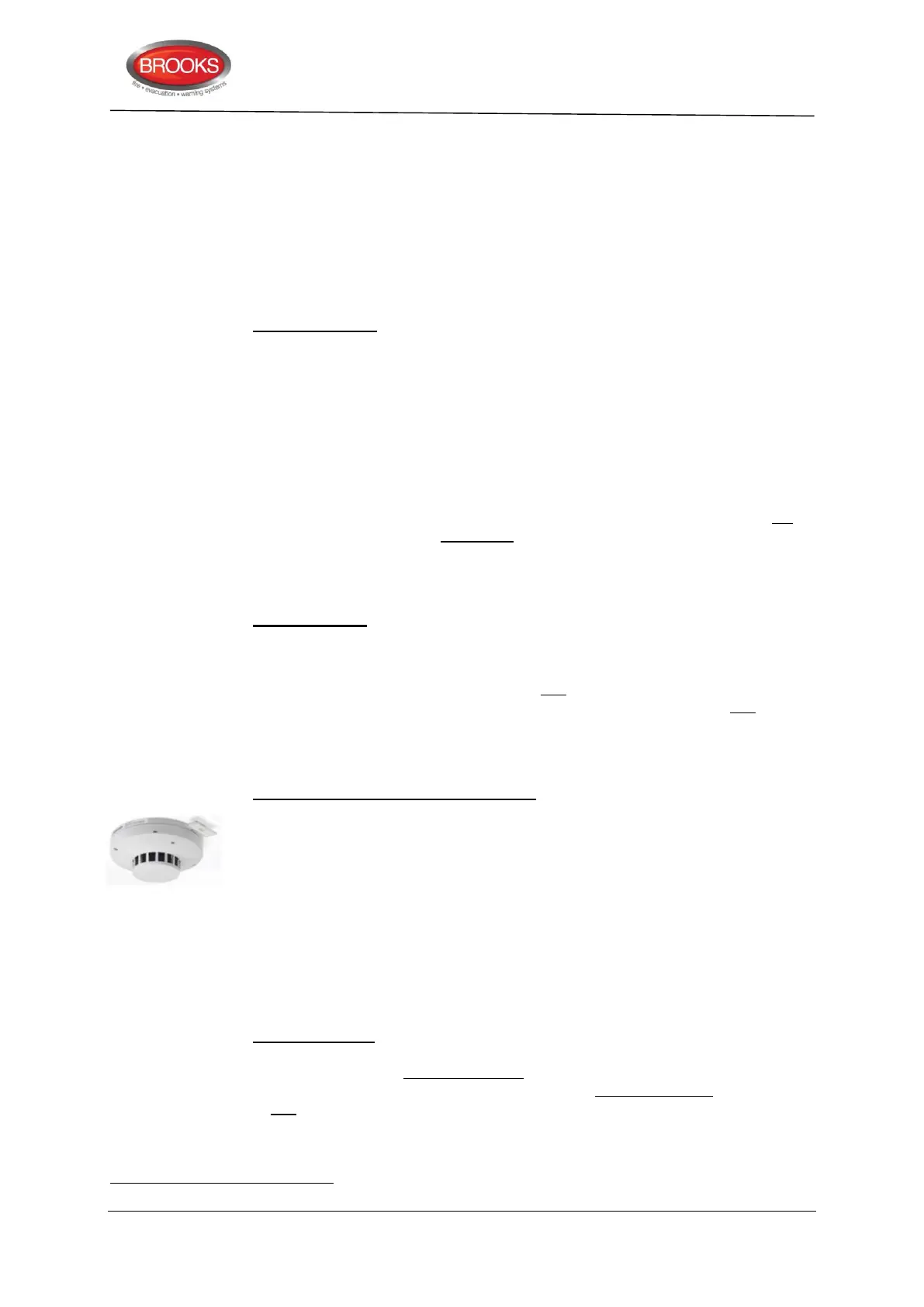

4401 Analogue photo electric smoke detector. Replaces 4301 in Normal mode, see
above. Scattered light (i.e. reflection of infrared light) is used to detect smoke. To
be plugged in an Analogue base (3312 / 4313 / 3379). Built-in LEDs are blinking
to indicate that the detector has activated fire alarm. Prepared for mechanical lock
(screw attached) if required.
4401 has slightly different design to the 4301 detector and the smoke chamber net
has even made smaller with holes that will keep insects and particles
52
larger than
smoke particles out of the chamber. The technical address is set with Address
setting tool 3314 / 4414. The detector has an address label on which the
programmed technical address can be written.
The Address setting tool is also used for mode setting:
Advanced mode: 4401 has to be set to Advanced mode via only the Address
setting tool 4414. Note, the Address setting tool 3314 cannot be used to set
Advanced mode! In Advanced mode, this detector will use algorithms in the
detector for fire alarm evaluation. It can be set to a Learning function or via EBLWin
to one of three area alarm algorithms (Normal, Clean or Smoke/Steam area), see
Section “Advanced Mode”, page 127.
For example dust, steam, etc.
