MONITOR ExTERNAL INPUTS
Return ports for the LS monitor insert are
patched on this screen. The send ports
are patched on the I/O - Outputs - Mon
TB & Osc Screen. The LS monitor insert
is switched in and out using the button
on the monitor LS panel. When using the
traditional style monitor panels, the LS
monitor insert can be switched in and out
on the States Screen in addition.
The main line monitor inputs are
applicable when the main line output
monitor is set to be returned into the desk
via an external distribution. Otherwise, the
main line monitor points are taken from
the main outputs within the desk, before
they have passed though the output ports.

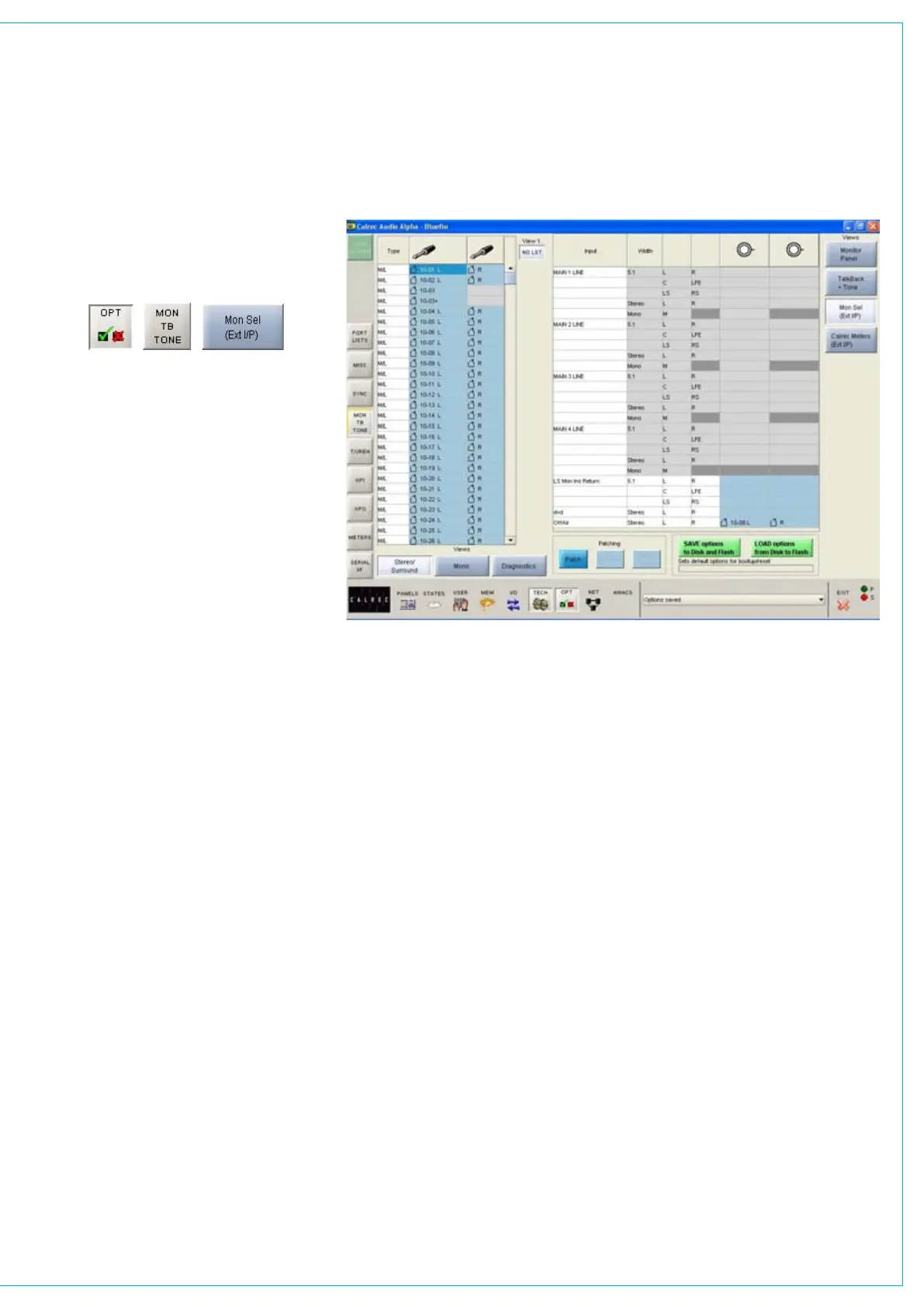

External monitor input ports are selected
from the lists in just the same way
as channel inputs. Different lists are
accessed using the selection buttons.
The sources can be viewed as pairs (for
patching to stereo or surround paths),
individual (for patching to mono paths),
or individual with the actual rack number,
card slot and input shown (for diagnostic
purposes).
Assignment is made by selecting a source
and a monitor input, and selecting Patch.
