This screen not only provides alternative
controls to the routing buttons on
the control surface, it also gives a
comprehensive visual representation of
the surround channel routes made in the
system, and allows the user to evaluate
and control the routing more effectively.
Making Routes

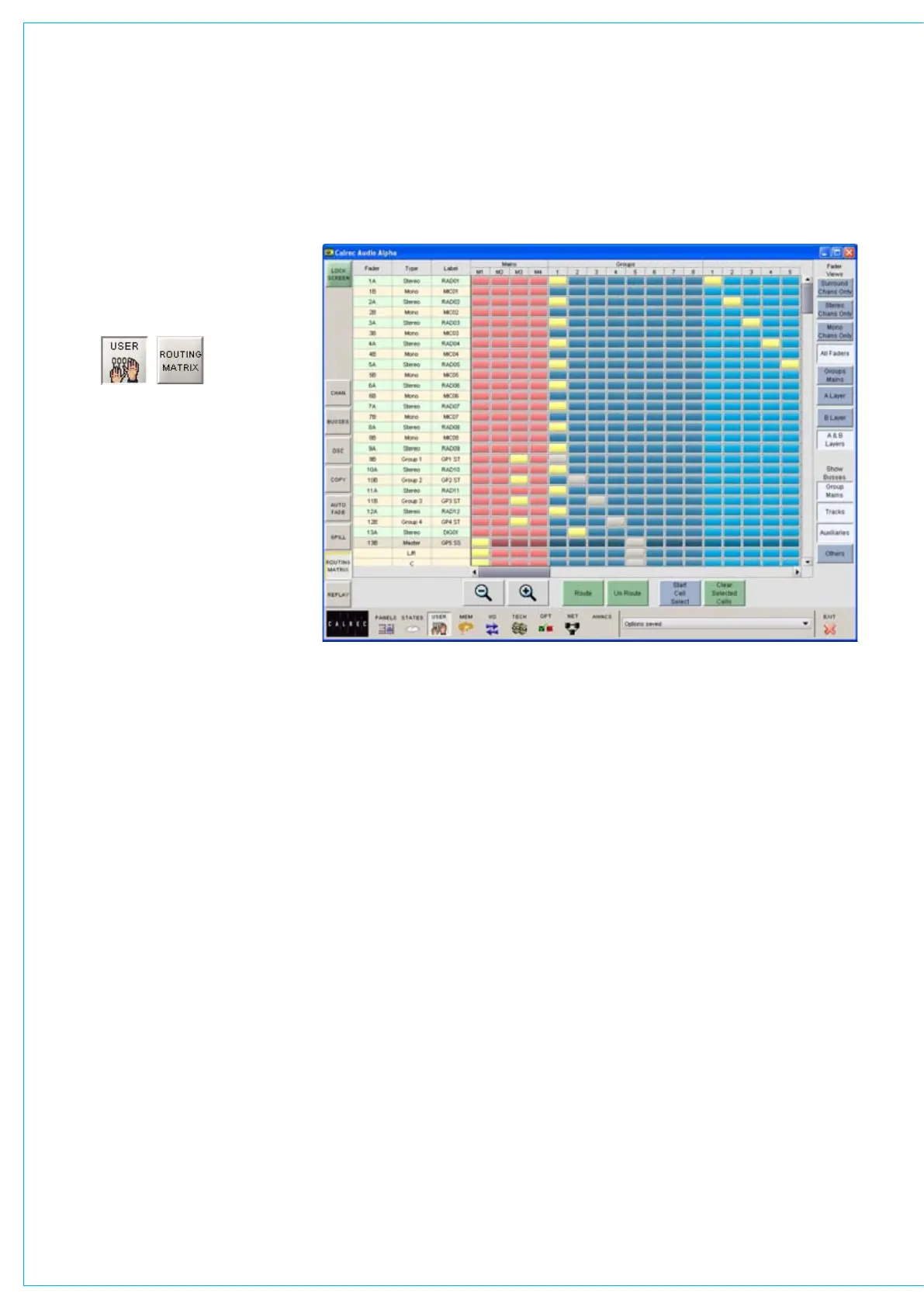

The channels are listed on the left side
of the screen, and the destinations are
shown across the top. Routes are made
by selecting the intersecting cells, which
change colour to show the route is made.
If a route is made on the surround master,
its spill paths are also routed, and their
cells also change colour to show this. De-
selecting the cell will remove the route.
ROUTINg MATRIx
If surround channels and groups are
routed to surround busses, all the spill
legs will be routed. If surround channels
and groups are routed to mono or stereo
busses, only the LR, C and Ls/Rs spill
legs will be routed. Individual legs can
always be routed separately, using the spill
panel and routing buttons or spill screen.
A surround master cannot route to the
mix minus bus, the spills are routed
individually.
Mains Routing
It is also possible to route mains to other
mains using this screen.
