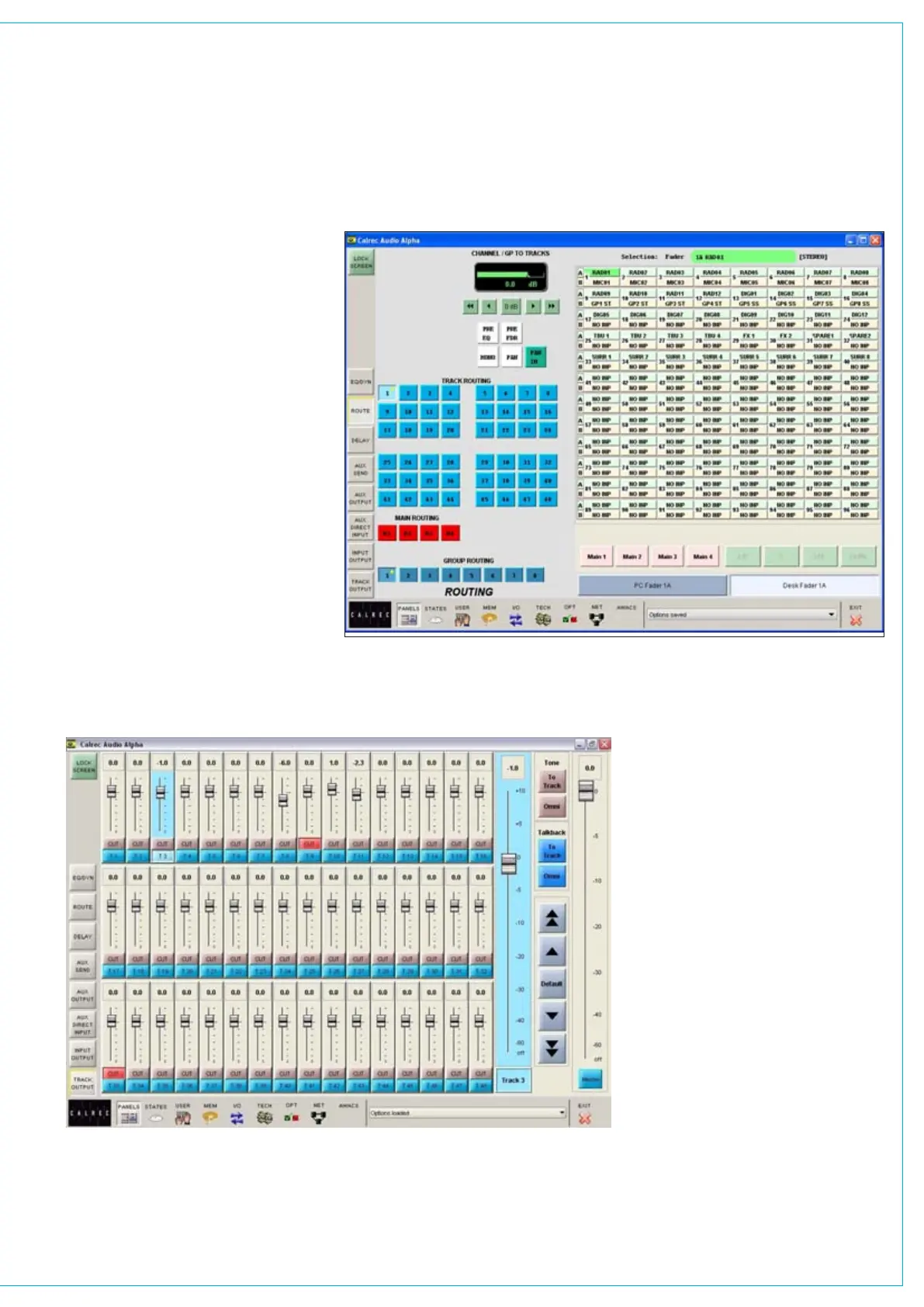

Panels-route screen
This screen provides an alternative to the
hardware buttons. In addition, the user
can choose whether to control the routing
of the currently assigned fader path, or to
select a different fader, known as the “PC
Fader” to which settings can be applied
independently of the current assignment.
Control is chosen using the selection
buttons “PC Fader” and “Desk Fader”.
The right side of the screen has buttons
for channel paths A and B, and Mains 1-4.
To make changes, select the required path
and use the buttons on the left side of the
screen to choose the routing.
The track output being controlled is
selected by the Track Sel button plus the
track routing buttons 1-48. ALL makes
the control a master, controlling all the
tracks at once.
Tone or Talkback can be fed to the
selected track output. The OMNI buttons
feed tone or talkback to all the track
outputs.
Panels - Track Output Screen
The Panels-Track Output screen allows
the user to control each of the 48 track
output levels using virtual faders.
Each track output has its own screen-
based fader, which can be adjusted by
dragging the fader using the touch screen
or trackball. In addition, the selected
track output can be adjusted using a
larger fader at the side of the screen, or
using the coarse or fine nudge buttons.
The default button can be used to set the
selected track output to 0dB.
A master fader allows the level of all the
tracks to be controlled simultaneously.
Tone or Talkback can be fed to the
selected track or all at once using the
selection buttons.
