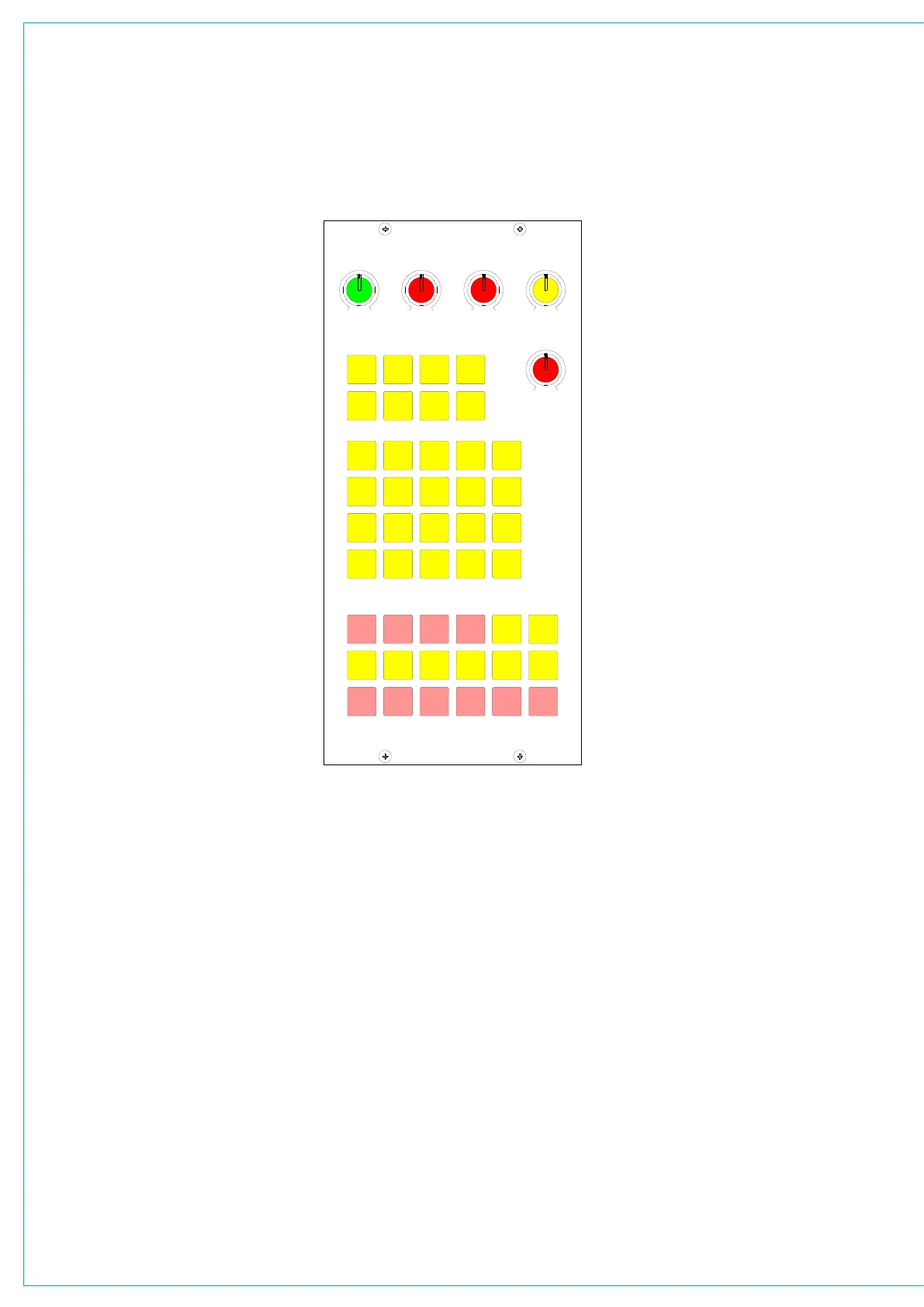

Talkback is available to all groups, mains,
auxes and 8 external sources (via relay
switching) using the buttons on this panel.
Talkback is also available to direct outputs
and individual tracks using the buttons on
the channel control panels, Input/Output
panel and Routing panel.
MASTER 1 and 2 operate all the TB
buttons which have been pre-selected by
the respective PRESEL button.
Talkback inputs are patched using the
Options - Mon I/P & TB screen.
All Talkback buttons are subject to On-Air
inhibits, set up on the Options - TX/REH
screen.
The GAIN control sets the level of the
talkback microphone.
TB1 to TB4 set the level of 4 RTB
(Reverse Talkback) signals.
There can be a mix of all four signals to
feed a single loudspeaker. This can mix
with the PFL feed to the PFL loudspeaker.
TALkbACk
