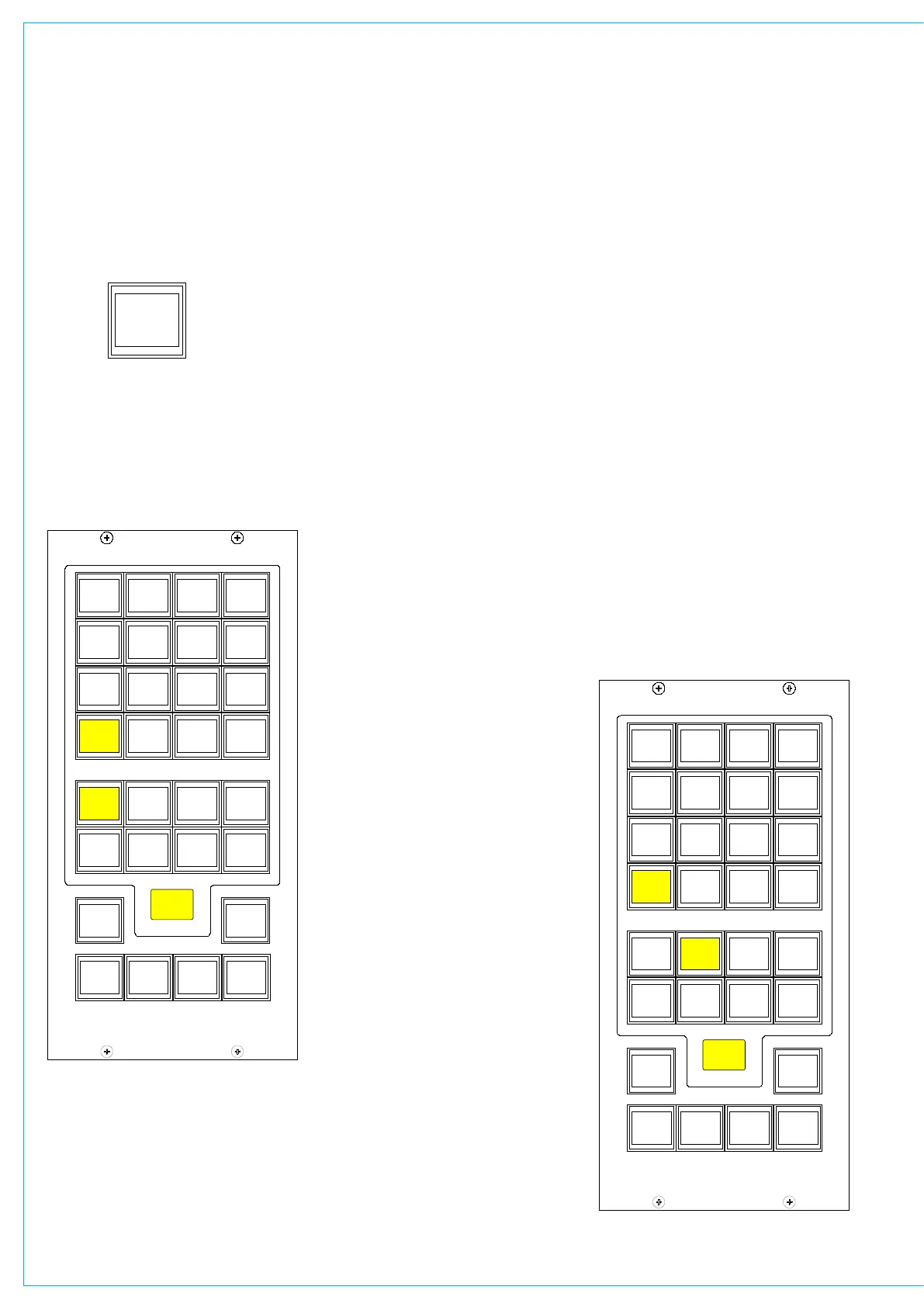

Pressing this button gives access to
functions displayed on the Monitor
Selections panel. The Listen Modes
and APFL functions are located in two
separate banks, and are chosen in the
same way as monitor sources.
MY5403
MONITOR SEL
PHAN
CENTRE
ASSIGNMENT
SELECTION TYPE
SELECTION
SOLO
L
CR MON
MISC
FUNCTION
LISTEN
MODES
APFL
SOLO
C
SOLO
R
LFE
OFF
SOLO
LS
SOLO
LFE
SOLO
RS
L + R > L L > L + R R > L + R
PH
REV R
FULL
3
STEREO
STEREO MONO
SURR
MAIN 1
METER 1
CR MON
FOLLOW
METER 2
SURR
MAIN 2
METER 3 METER 4
STEREO
EXT 1
MY5403
MONITOR SEL
PFL TO
O/P 3
ASSIGNMENT
SELECTION TYPE
SELECTION
PFL TO
O/P 4
CR MON
MISC
FUNCTION
LISTEN
MODES
APFL
PFL TO
O/P 5
PFL TO
O/P 6
PFL TO
O/P 1
PFL TO
O/P 2
PFL TO
MON
PFL
CLEAR
AFL
CLEAR
APFL
FLASH
SURR
MAIN 1
METER 1
CR MON
FOLLOW
METER 2
SURR
MAIN 2
METER 3 METER 4
STEREO
EXT 1
MP5405
SMALL LS
LEVEL
L R
BALANCE
DIM
CLEAR
DIRECT
INPUT
CHANGE
OVER
STEREO
MONO
SURR
MAIN 1
MISC OP5
STEREO
MAIN 1
MISC OP6
PFL
MISC OP4
STEREO
MAIN 1
MISC OP1
SURR
MAIN 1
MISC OP2
SURR
MAIN 1
PRE-SEL1
LS RS
LFE OFF
L C R
MISC FUNCTIONS
SURR
MAIN 2
PRE-SEL2
STEREO
VTR1/1
PRE-SEL3
AUX 3
PRE-SEL4
IN
LS MON
INSERT
NO COMP
FULL
DP570
DECODERS
DIM
CUT
MUTE
CR MON
FOLLOW
MISC OP3
MUTE MUTE MUTE
MUTE MUTE
0
PFL/LIST AFL
CONTROL
ROOM
MONITOR
1 2
3 4
5 6
0
1
HEAR
2
HEAR
3
HEAR
4
INPUT
DIRECT
HEAR
CONTROL ROOM MISC fUNCTIONS
Listen Modes
The default listen mode is mono, stereo
3 stereo or full surround depending on
the LS arrangement set in the Set up
application.
The selection buttons are as follows:
Selection buttons to switch PHAN
CENTRE on, and LFE off.
6 solo buttons allow solo monitoring of
each component of a surround signal.
4 stereo option buttons: L+R to L, L to
L+R, R to L+R and PH REV R. These will
work in any mode, but are really designed
for use in stereo mode or when monitoring
stereo sources.
4 Listen mode selection buttons, allow
the Control Room to monitor its selected
source signal in Full surround, 3 STEREO,
STEREO or MONO.
3 STEREO with Phan Centre ON is the
same as STEREO except the LFE is
optional.
If the source being monitored is surround,
the STEREO button will create a stereo
downmix of that source. If the source is
stereo, the surround monitor buttons for
that main output will have no effect.
MONO feeds L, C, R, LS and RS to Center.
APFL
There are selection buttons for:
PFL to override each misc output 1-6
PFL to MON - Feeds the Control Room
LS outputs overriding the current LS
selection.
PFL clear and AFL clear, clear any latched
buttons.
APFL Flash sets the APFL light to flash
when any of the AFL or PFL buttons are
latched.
PFL from surround mains is a stereo
downmix of the surround signal.
If PFL to MON is not selected, PFL
can override the small LS (if it has been
set to do this in the setup application).
Alternatively, there can be a separate
stereo PFL LS output. An external RTB
input can mix with PFL to the PFL LS
output.
