Stereo and surround panning controls are
strengthened with the inclusion of the
optional motorized joystick panel.
AFL can be heard in surround, post the
pan controls, provided that the monitoring
is surround.
Front Pan
The Front Pan allows the front signal to be
panned from left, through centre, to right.
On stereo channels and groups, the L-R
PAN acts as a balance control.
Front/Back Pan
The Front/Back pan control pans the
signal between Front and Back.
When Rear Level is switched IN, the
levels to the rear and front are controlled
separately. This allows signal to be fed to
the rear without affecting the balance of
the mix in the front speakers. Also, the
front signal can be turned off and a level
set to the rear which is different to that
being sent to any stereo groups or mains
which the path is feeding.
Rear Pan
The Rear Pan allows the rear signal to be
panned from Ls to Rs.
LFE and 5.0 Level Control
The LFE ON button allows the rotary
control to adjust the level of the LFE
independently of the rest of a surround
signal.
With 5.0 LEVEL selected, the control
adjusts the level of all the surround legs
except for the LFE. The 5.0 level is
<< >>
LB RB
OL
/ /
OR
2
48L 48R
TONE M/S
IN
EQ
PRE
EQ
PRE
BUS
TONE
TB
MIX
MINUS
IN IN
GAIN
INPUT SELECTION
STEREO WIDTH
FRONT/BACK PAN REAR PAN DIVERGENCE
FRONT PAN
BALANCE
DIRECT OUTPUT
SURROUND SOUND
ININ
REAR
LEVEL
1
LFE
L-C-R
ON
INPUT
INSERT
FDR
PRE
FDR
PRE
INPUT
PY4885
OUTPUT
DIRECT OUTPUT
AFL
SRC
MAIN
GP
DIRECT
C
ONLY
- 9.0 dB LS >RS - 7.5 dB L 4 R
FDR19A
Drums
- 4.6 dB
+56.0 dB
MIC L R M S >W L C >R
5.0
LEVEL
IN
AUTO
FDR
<< >>
LB RB
OL
/ /
OR
2
48L 48R
TONE M/S
IN
EQ
PRE
EQ
PRE
BUS
TONE
TB
MIX
MINUS
IN IN
GAIN
INPUT SELECTION
STEREO WIDTH
FRONT/BACK PAN REAR PAN DIVERGENCE
FRONT PAN
BALANCE
DIRECT OUTPUT
SURROUND SOUND
ININ
REAR
LEVEL
1
LFE
L-C-R
ON
INPUT
INSERT
FDR
PRE
FDR
PRE
INPUT
PY4885
OUTPUT
DIRECT OUTPUT
AFL
SRC
MAIN
GP
DIRECT
C
ONLY
- 9.0 dB LS >RS - 7.5 dB L 4 R
FDR19A
Drums
- 4.6 dB
+56.0 dB
MIC L R M S >W L C >R
5.0
LEVEL
IN
AUTO
FDR

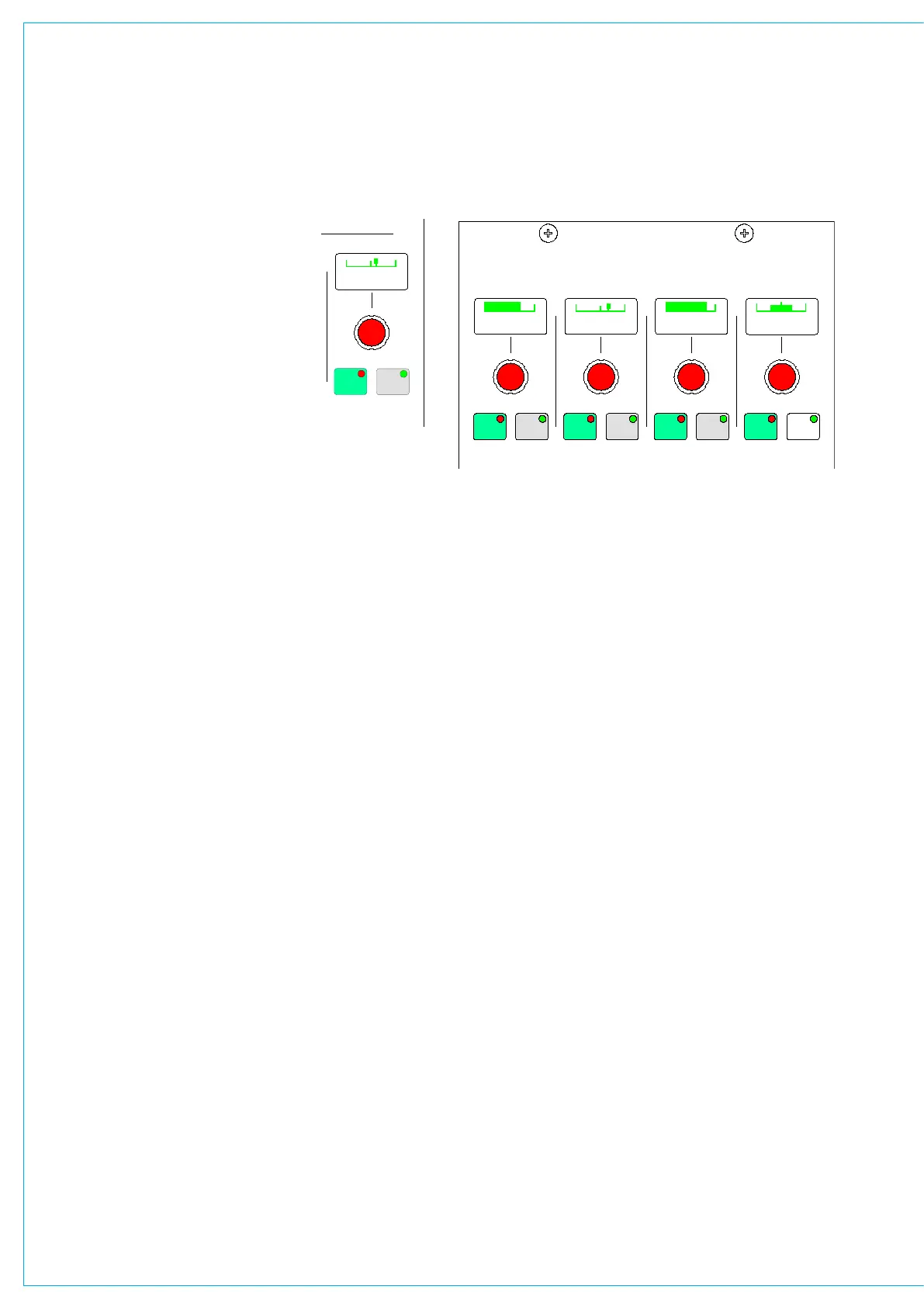

STEREO AND SURROUND PANNINg
independent of the LFE level.
Divergence
On mono channels, the divergence control
sets an amount of the centre signal to also
feed to the left and right.
Divergence is switched in, using the IN
button.
The divergence control on a stereo
channel determines its left, centre and
right contribution to a surround path.
When the divergence control is fully anti-
clockwise the signal will be present only
in the centre, and “MONO” is shown in
the display. The pan control balances the
mono mix of left and right into the centre.
As the divergence control is rotated
clockwise the level of audio in the left
and right increases and the level in the
centre decreases. The display shows a
bar of increasing width. Adjusting the pan
control balances the left and right mix to
the centre, and simultaneously balances
the left and right audio.
When the pan control is fully clockwise
the signal is present only in the left and
right, and “STEREO” is shown in the
display. The pan control acts as a balance
for the left and right levels.
The overall audio level reduces as the pan
position approaches the centre.
When LCR is switched out the divergence
in of a mono channel is switched out.
The C ONLY button connects the channel
output to the centre bus only. All other
panning controls are disabled. The
channel is fed to both left and right of
stereo busses. On stereo channels and
groups, C ONLY feeds a mono reduction
of the stereo signal to the centre bus only.
