MAIN INSERT SENDS

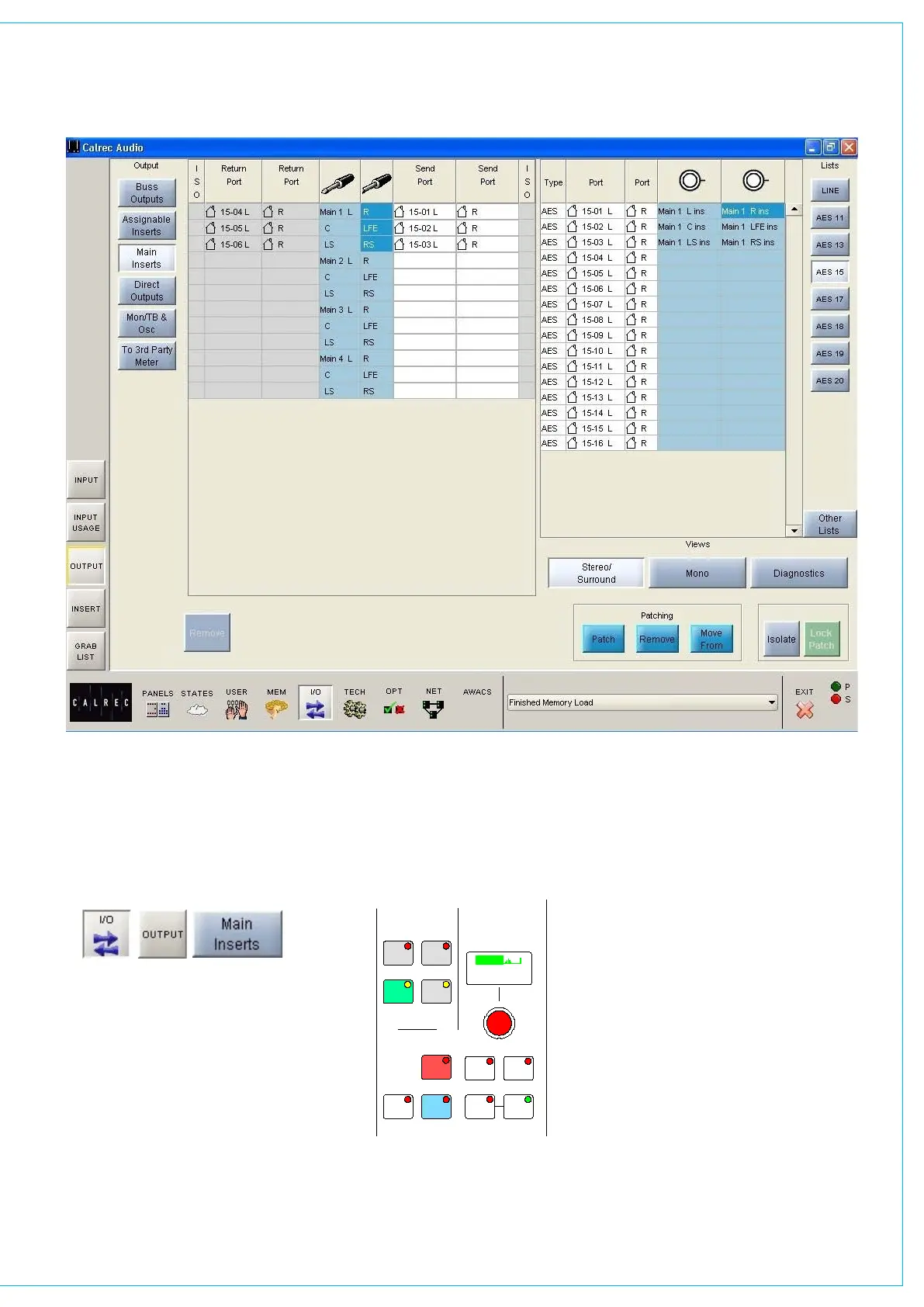

The main insert sends are set up on the
I/O - Output screen, by selecting “Main
Inserts” from the list of output views. The
output ports for main insert sends can
be patched, moved and removed here
in the same way as buss outputs are
patched.
The input ports connected to the insert
return can also be seen. These are set
up on the I/O - INPUT screen.
<< >>
LB RB
OL
/ /
OR
2
48L 48R
TONE M/S
IN
EQ
PRE
EQ
PRE
BUS
TONE
TB
MIX
MINUS
IN IN
GAIN
INPUT SELECTION
STEREO WIDTH
FRONT/BACK PAN REAR PAN DIVERGENCE
FRONT PAN
BALANCE
DIRECT OUTPUT
SURROUND SOUND
IN
IN
REAR
LEVEL
1
LFE
L-C-R
ON
INPUT
INSERT
FDR
PRE
FDR
PRE
INPUT
PY4885
OUTPUT
DIRECT OUTPUT
AFL
SRC
MAIN
GP
DIRECT
C
ONLY
- 9.0 dB LS >RS - 7.5 dB L 4 R
FDR19A
Drums
- 4.6 dB
+56.0 dB
MIC L R M S >W L C >R
5.0
LEVEL
IN
AUTO
FDR
The main inserts are dedicated to the
main outputs. Once the ports have been
set up the insert can be switched into the
main path using the buttons on the Input/
Output panel (shown below).
