Example 3

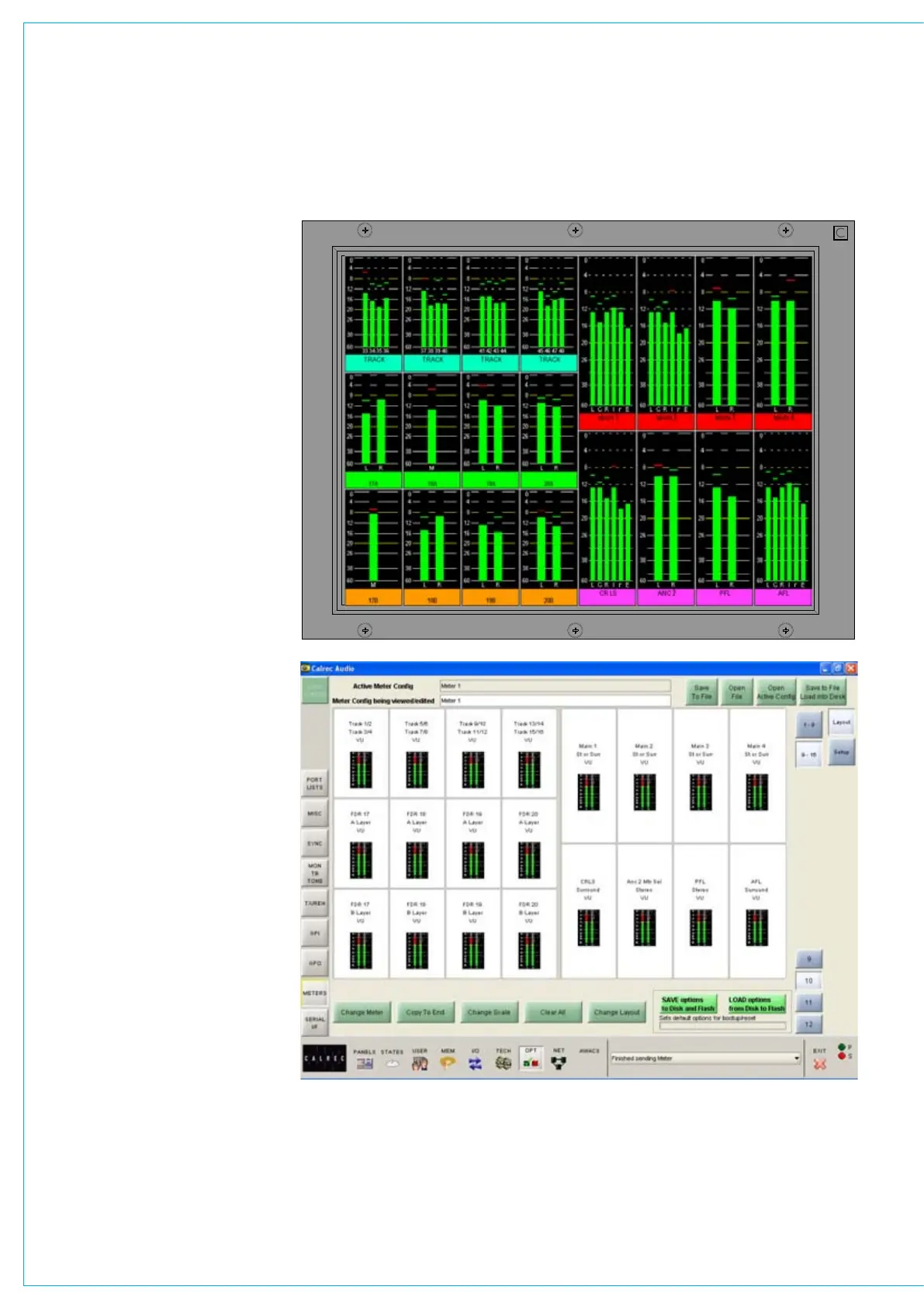

In the example below, the TFT meter
screen has different row sizes on each
half. In the first half, the top row houses
graphs showing four tracks, allowing 16
tracks across half of the screen.
The middle and bottom rows display
channel inputs for A and B paths
respectively.
The second half of the screen has been
split into two rows, each taking up half
of the screen’s height. Across the top
half are the Main output meters, and the
bottom half displays CRLS, Ancillary 2,
PFL and AFL.
