08 Brake System
08-5
Repeat the procedures until there is clean
brake fluid in the hose and the fluid does
not have air.
Tighten the bleed screw and keep the uid
level according to requirement after system
bleeding or uid replacement.
Inspect brake effect after operation to
make sure the brake function works and
brake pedal free play is qualied.
Repeat the procedures as necessary until
all brake lines and calipers do not have air.
Installation
Reverse the removal procedures for
installation.

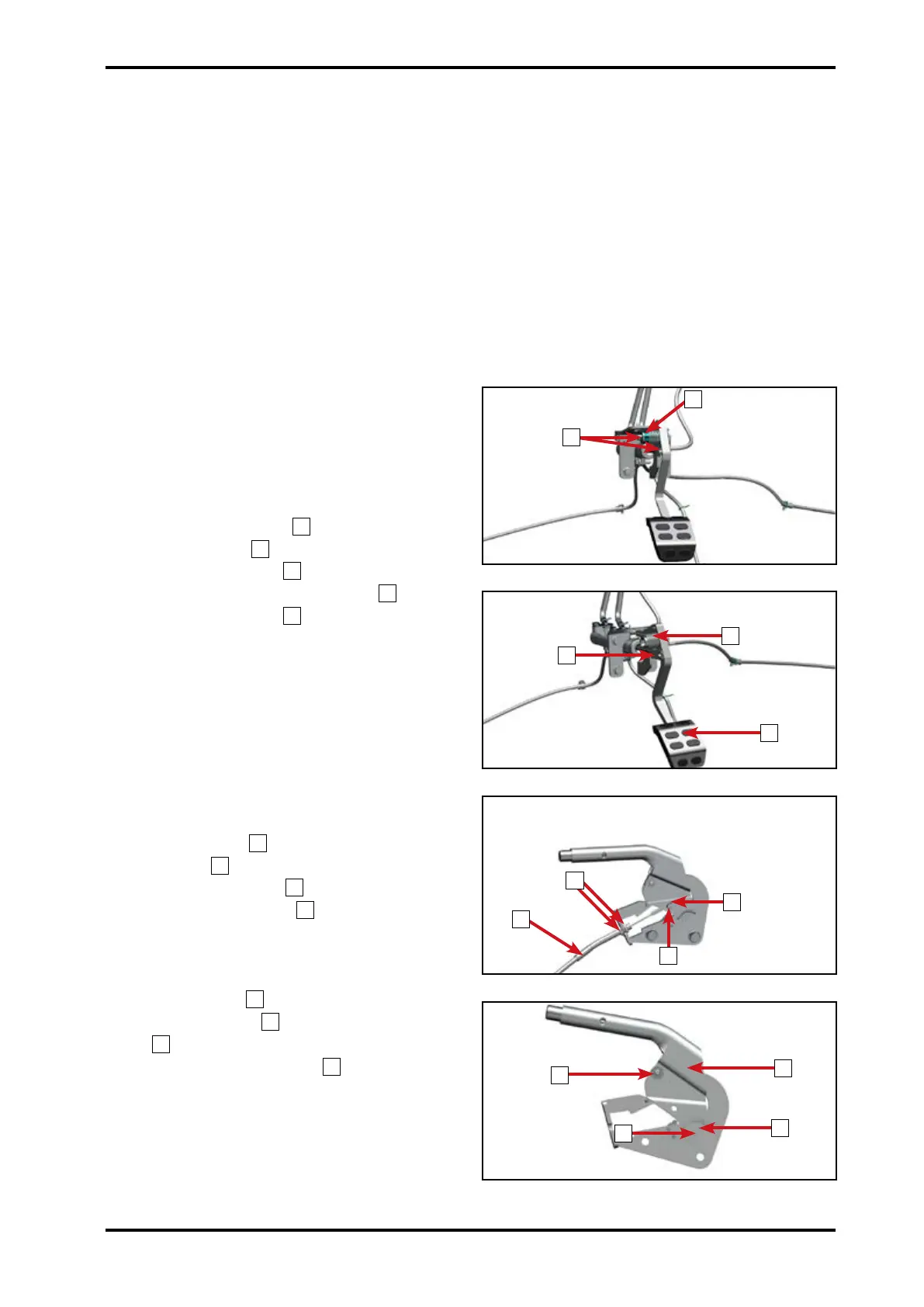

8.4 Brake Pedal
Removal
Remove two retainers
1
.
Remove bushing
2
.
Remove pushrod pin
3
.
Remove foot brake return spring
4
.
Remove brake pedal
5
.
Installation
Reverse the removal procedures for
installation.
8.5 Parking Brake
Removal
Remove retainer
1
.
Remove pin
2
.
Loosen two lock nuts
3
.
Remove parking cable
4
.
Remove washer
5
.
Remove washer
6
and hand lever pin
shaft
7
.
Remove hand brake assy
8
.
1
2
3
4
7
5
6
8
1
2
5
4
3
080501
080502
080503
080504
