23 - SUSPENSION
23–15
23
Disassembly
HINT:
 Use the same procedures for the right side and left side.
 Procedures listed below are for the left side.

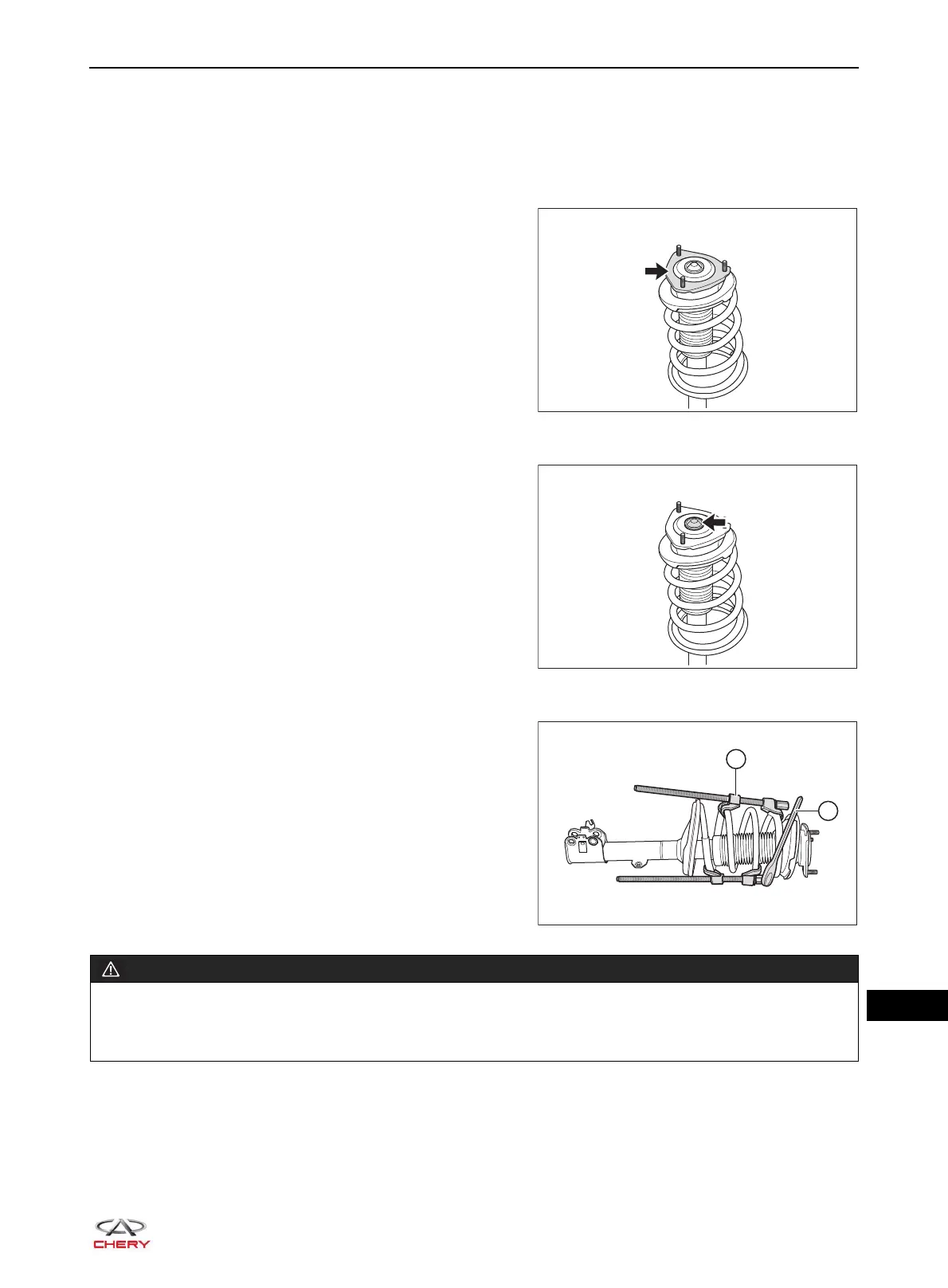

1. Remove the front shock absorber cushion.
a. Remove the front cushion (arrow) from front left shock
absorber assembly.
2. Remove the front shock absorber upper cover.
a. Remove the front shock absorber upper cover (arrow)
from front left shock absorber assembly.
3. Remove the locking nut from front shock absorber assembly.
a. Install the spring compressor (1), and tighten the end
lever of spring compressor with a wrench (2) to
compress the front coil spring.
RT21230070
RT21230080
RT21230090
1
2
WARNING
 When removing front coil spring, compress spring until locking nut can be rotated. DO NOT compress
the coil spring more than necessary, avoid damaging the spring and personal injury.
