Chery Automobile Co., Ltd.
27 - PARKING BRAKE
27–11
27
Parking Brake Control Mechanism Assembly
Removal
1. Fix the tire and wheel assembly.
2. Remove the auxiliary fascia console assembly (See page 45-9).
3. Remove the parking brake switch assembly (See page 27-9).

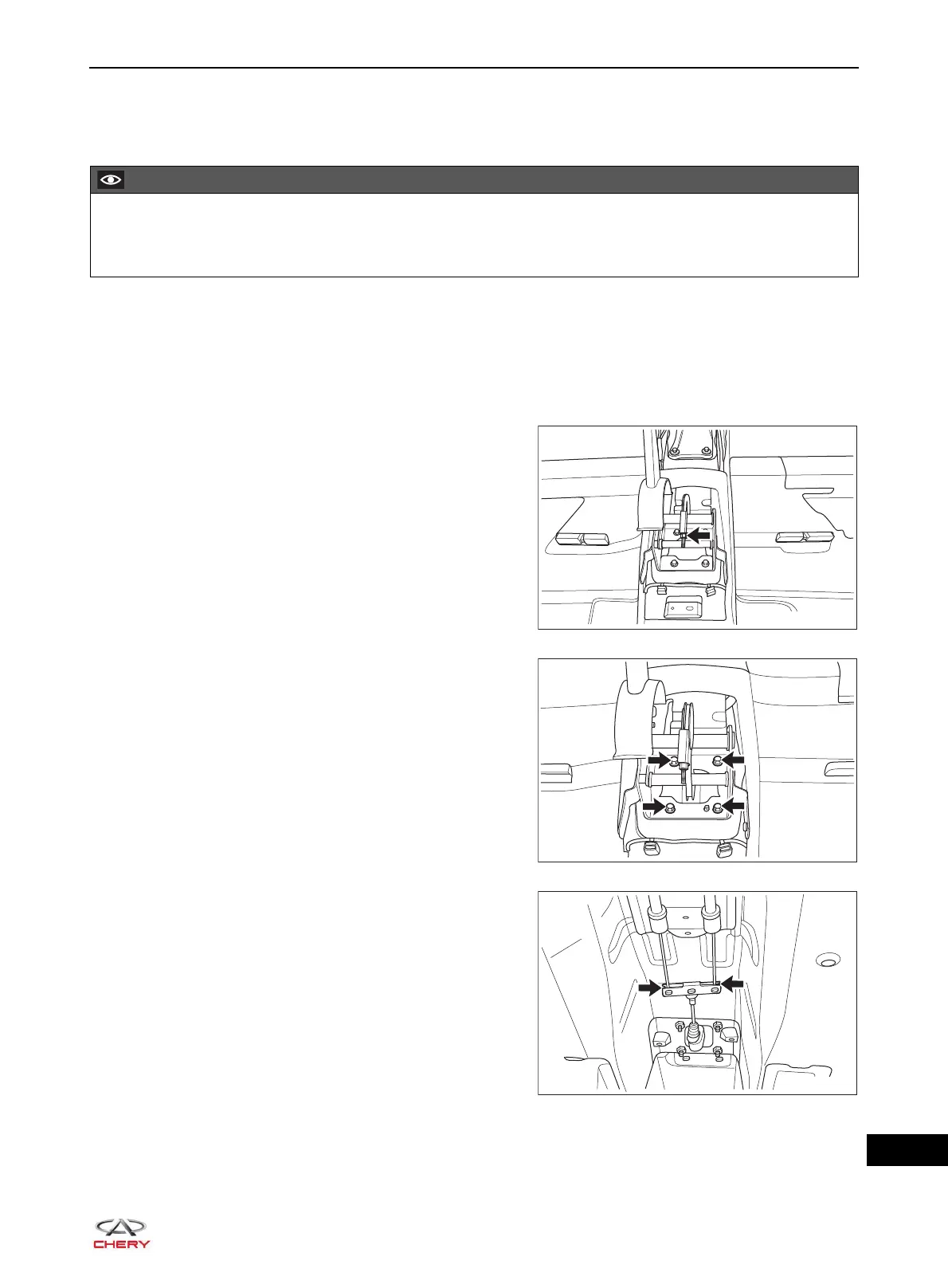

4. Remove the parking brake control mechanism assembly.
a. Fully release the parking brake control mechanism.
b. Loosen the locking nut (arrow) of parking brake
control mechanism assembly to release the tension of
parking brake cable assembly as shown in the
illustration.
c. Remove 4 coupling bolts (arrow) between parking
brake control mechanism assembly and body.
(Tightening torque: 23 ± 2 N·m)
d. Disengage the parking brake rear cable assembly
from two grooves (arrow) on the rear of parking brake
control mechanism assembly.
e. Remove the parking brake control mechanism assembly.
Be sure to wear necessary safety equipment to prevent accidents when repairing.
Try to prevent body paint surface from being scratched during removal and installation.
