Antenna Assembly (w/ Antenna Amplifier)
Removal
1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the roof assembly (See page 49-30).
HINT:
It is not necessary to completely remove the roof assembly during removal, but it is necessary to lower the
rear part of roof assembly so that antenna can be removed.
4. Remove the antenna assembly (w/ antenna amplifier).

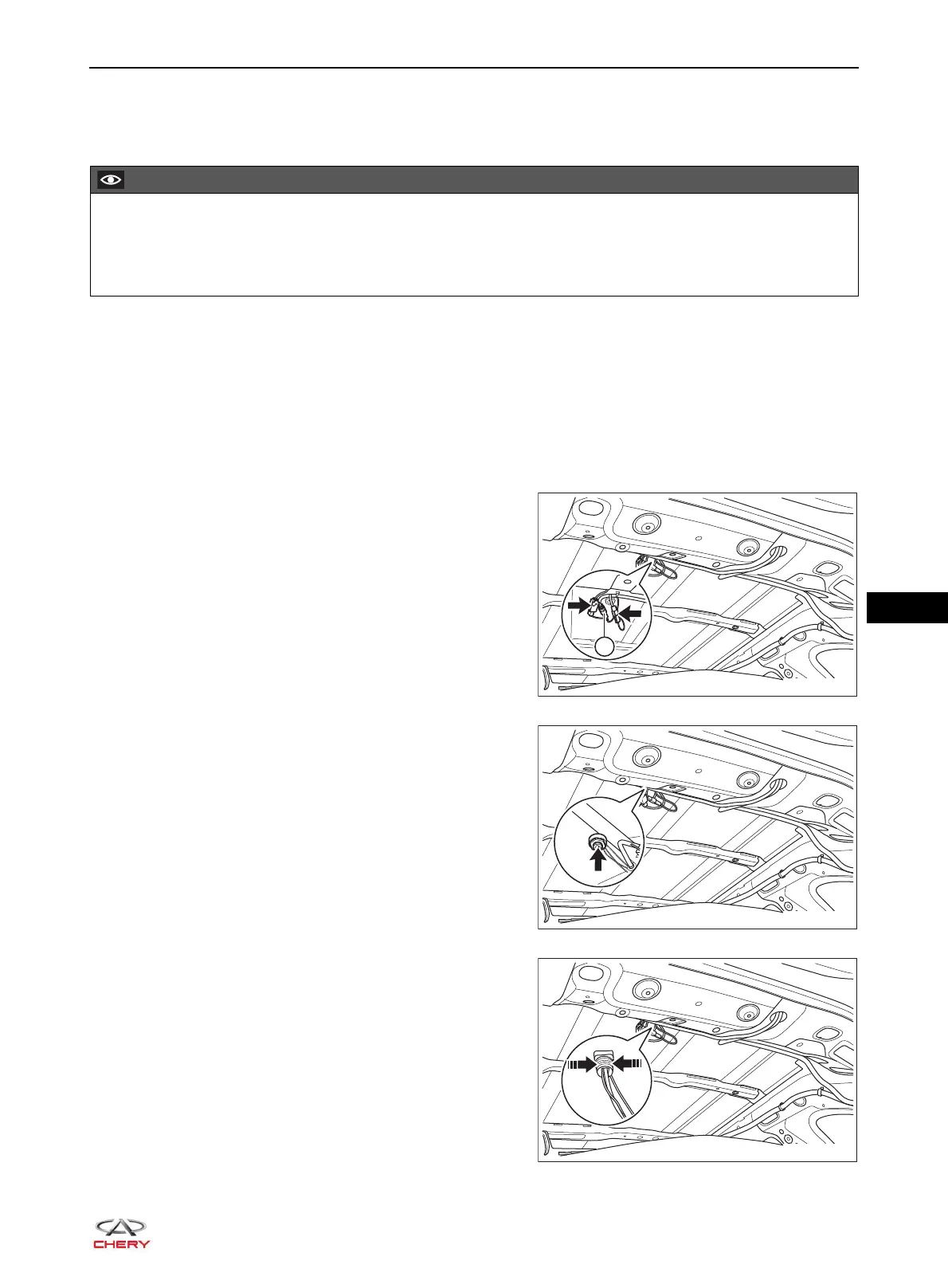

a. Disconnect the antenna (1) and connectors (arrow)
from antenna assembly.
b. Remove the fixing nut (arrow) from antenna assembly.
(Tightening torque: 5 ± 1 N·m)
c. Detach the attachment part between antenna
assembly and body in the direction of arrow as shown
in the illustration.
Be sure to wear safety equipment to prevent accidents when removing antenna assembly.
Appropriate force should be applied when removing antenna assembly. Be careful not to operate
roughly.
