Chery T21 2014 - Assembly

Chery Automobile Co., Ltd.
17 - QR525MHE TRANSMISSION
17–52
17
Assembly

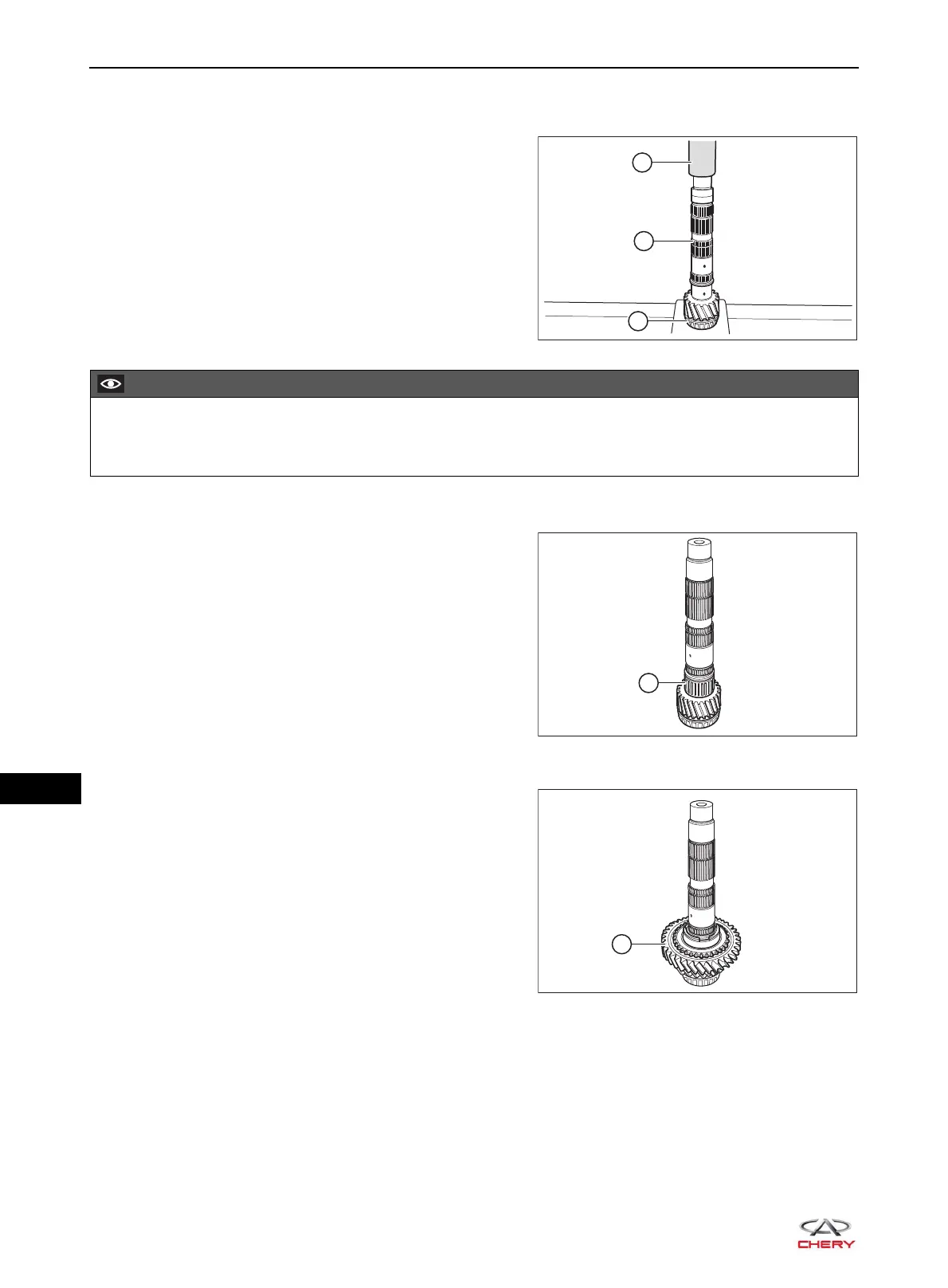

1. Install the output shaft front bearing.
a. Using a hydraulic press (1), press the output shaft
front bearing (3) into the output shaft (2).
2. Install the 1st needle roller bearing.
a. Apply transmission oil to the 1st needle roller bearing
(1), and install it to the output shaft.
3. Install the 1st driven gear.
a. Apply transmission oil to the 1st driven gear (1), and
install it to the output shaft.
RT21170960
1
2
3
CAUTION
 When pressing the bearing, make sure that pressure is applied to bearing inner race as the bearing may
be damaged due to uneven force.
1
RT21170930
1
RT21170970
