Chery Automobile Co., Ltd.
48 - EXTERIOR
48–35
48

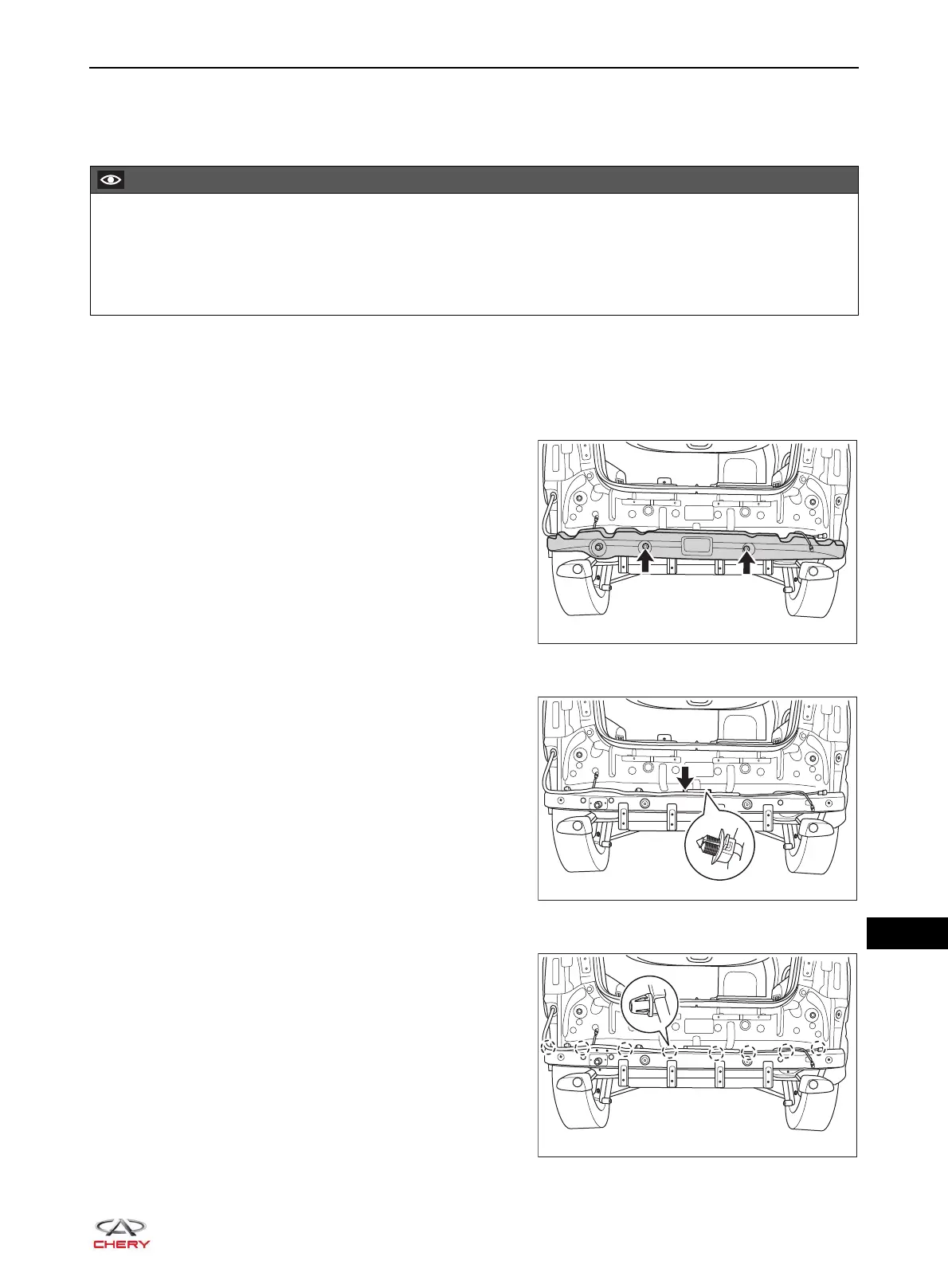

Rear Bumper Crossmember Assembly
Removal
1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the rear bumper assembly (See page 48-30).
4. Remove the rear bumper energy absorber.
a. Remove 2 fixing bolts (arrow) from the rear bumper
energy absorber, and remove the rear bumper energy
absorber.
(Tightening torque: 1.5 ± 0.5 N·m)
5. Remove the back door handle sensor.
a. Disconnect the back door handle sensor (arrow).
b. Using a screwdriver wrapped with protective tape, pry
up the clip and remove the back door handle sensor.
6. Remove the rear bumper crossmember assembly.
a. Using a screwdriver wrapped with protective tape, pry
up the wire harness clips.
Be sure to wear safety equipment to prevent accidents when removing rear bumper crossmember
assembly.
Try to prevent body paint surface from being scratched when removing rear bumper crossmember
assembly.
To Next Page
