Chery Automobile Co., Ltd.
07 - SQR484F ENGINE MECHANICAL
07–66
07

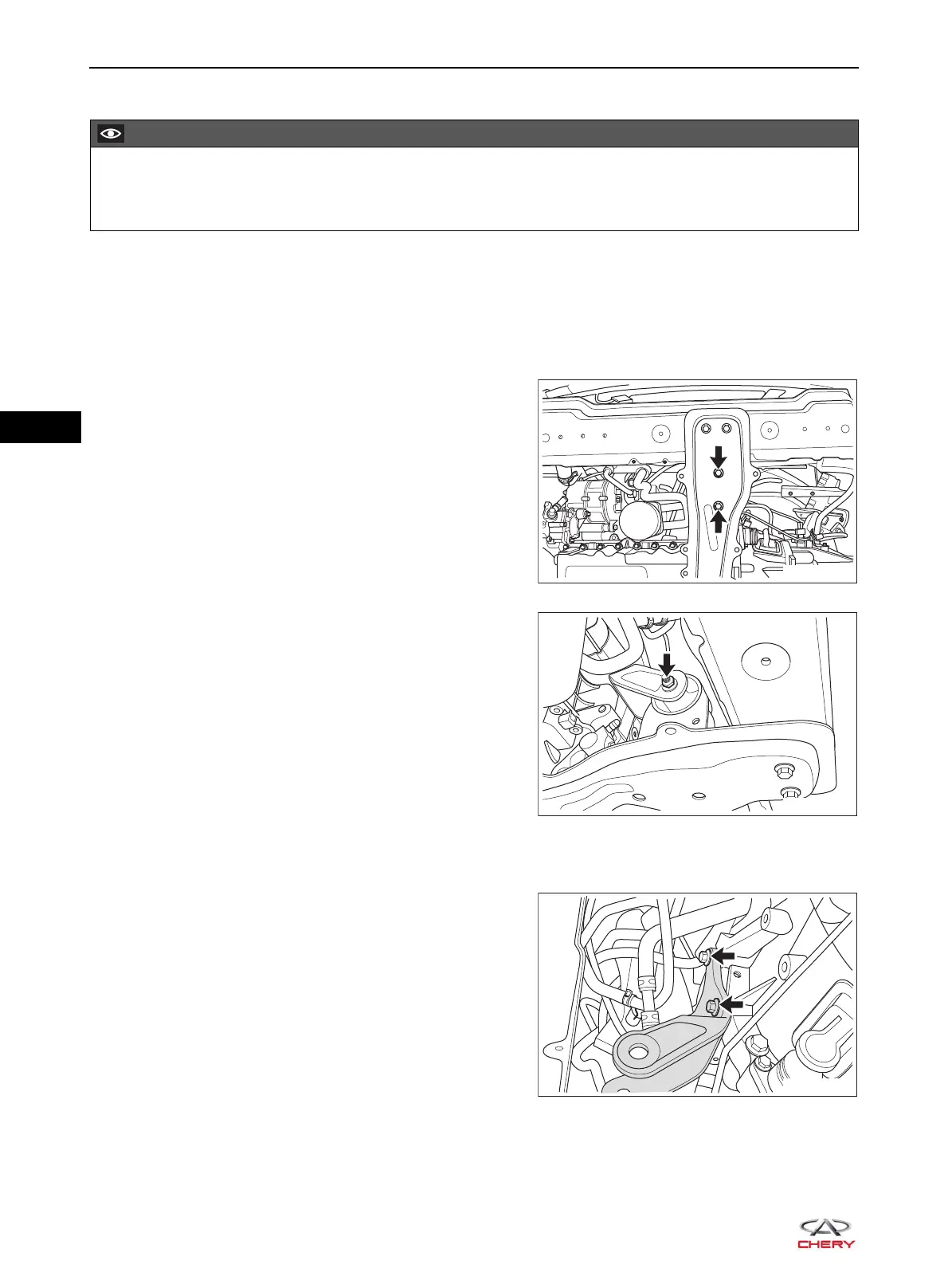

Removal & Installation - Front Mounting Assembly
1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the engine lower protector assembly (See page 48-29).
4. Support the transmission with a transmission carrier.
5. Remove the engine front mounting cushion assembly.
a. Remove 2 coupling bolts (arrow) between front
mounting cushion assembly and side rail welding
assembly.
(Tightening torque: 70 ± 5 N·m)
b. Remove the locking nut (arrow) for through bolt
between front mounting cushion assembly and front
mounting bracket, and remove the through bolt.
(Tightening torque: 70 ± 5 N·m)
c. Remove the engine front mounting cushion assembly.
6. Remove the engine front mounting bracket.
a. Remove 2 coupling bolts (arrow) between front
mounting bracket and transmission case.
(Tightening torque: 55 ± 5 N·m)
b. Remove the engine front mounting bracket from transmission case.
7. Installation is in the reverse order of removal.
Be sure to wear necessary safety equipment when repairing to prevent accidents.
Try to prevent body paint surface from being scratched during removal and installation.
