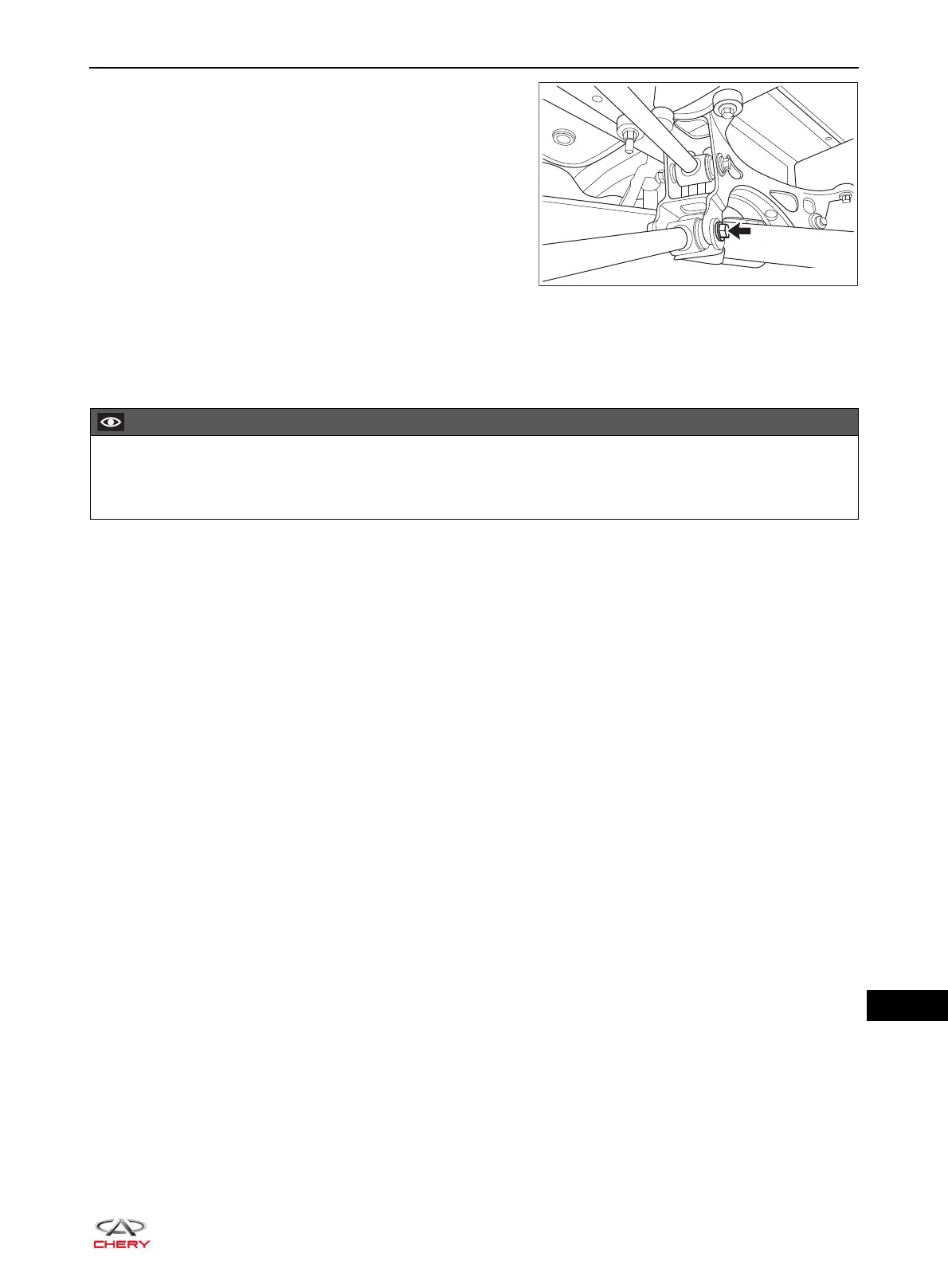

d. Remove the coupling bolt and nut (arrow) between
upper part of rear suspension upper left swing arm
assembly and rear sub frame assembly.
(Tightening torque: 120 ± 10 N·m)
e. Remove the rear suspension lower left swing arm assembly.
Installation
Installation is in the reverse order of removal.
Always tighten coupling bolts and nuts to the specified torque.
Check and adjust wheel alignment after installation.
