15 - SQR484F STARTING SYSTEM
15–68
15
Inspection

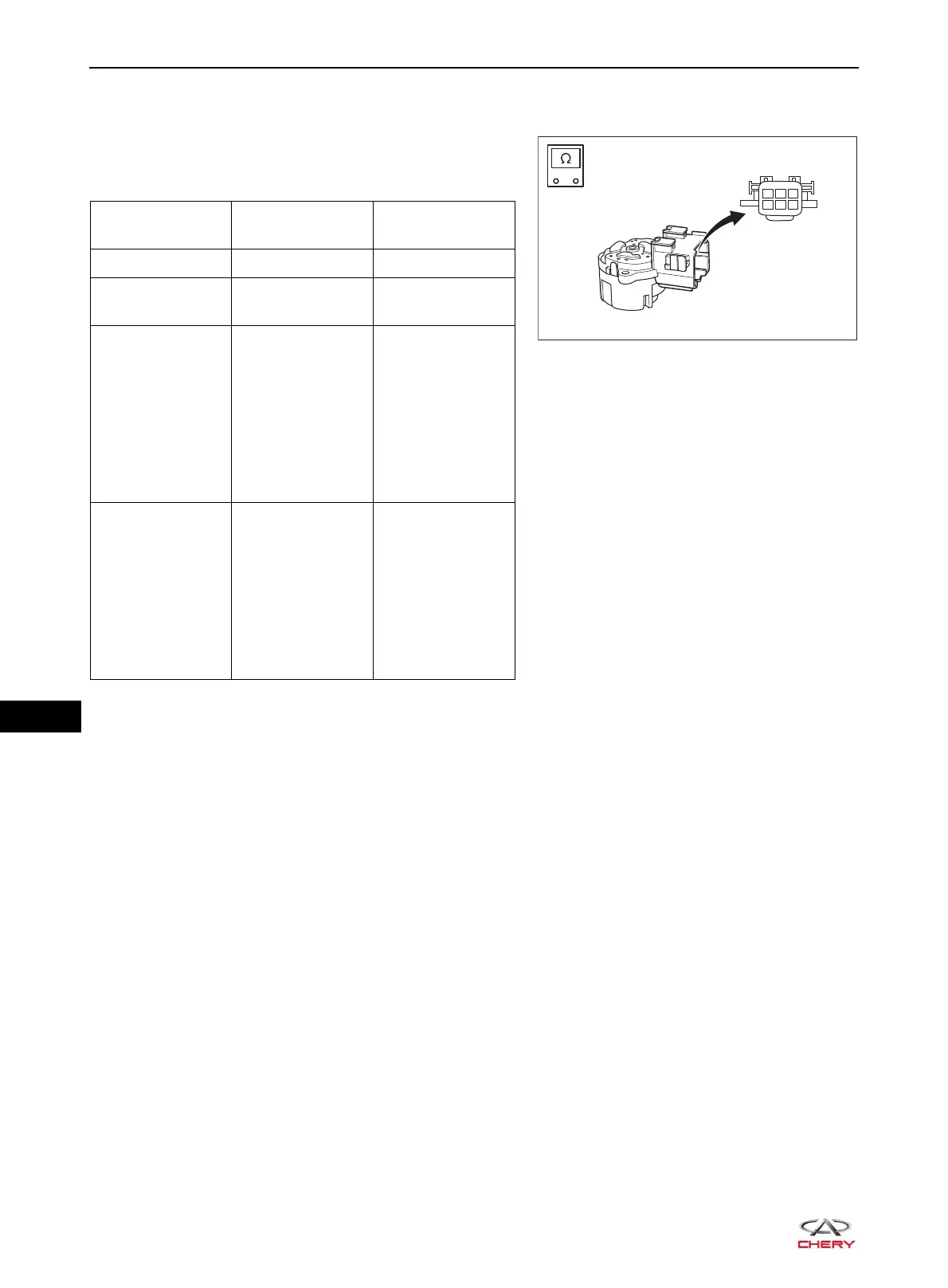

1. Check for continuity of ignition starting switch.
Using ohm band of the digital multimeter, check for
continuity of ignition starting switch according to the table
below.
If result is not as specified, replace the ignition starting switch.
Installation
Installation is in the reverse order of removal.
123
456
-+
RT21150160
Multimeter
Connection
Switch
Condition
Specified
Condition
All terminals LOCK No continuity
Ter mi n a l 1 -
Ter mi na l 3
ACC Continuity
Ter mi n a l 1 -
Ter mi na l 2
Ter mi n a l 1 -
Ter mi na l 3
Ter mi n a l 2 -
Ter mi na l 3
Ter mi n a l 5 -
Ter mi na l 6
ON Continuity
Ter mi n a l 1 -
Ter mi na l 2
Ter mi n a l 4 -
Ter mi na l 5
Ter mi n a l 4 -
Ter mi na l 6
Ter mi n a l 5 -
Ter mi na l 6
START Continuity
