Chery T21 2014 - ON-VEHICLE SERVICE; Accessory Drive Belt; Description

Chery Automobile Co., Ltd.
07 - SQR484F ENGINE MECHANICAL
07–23
07
ON-VEHICLE SERVICE
Accessory Drive Belt
Description

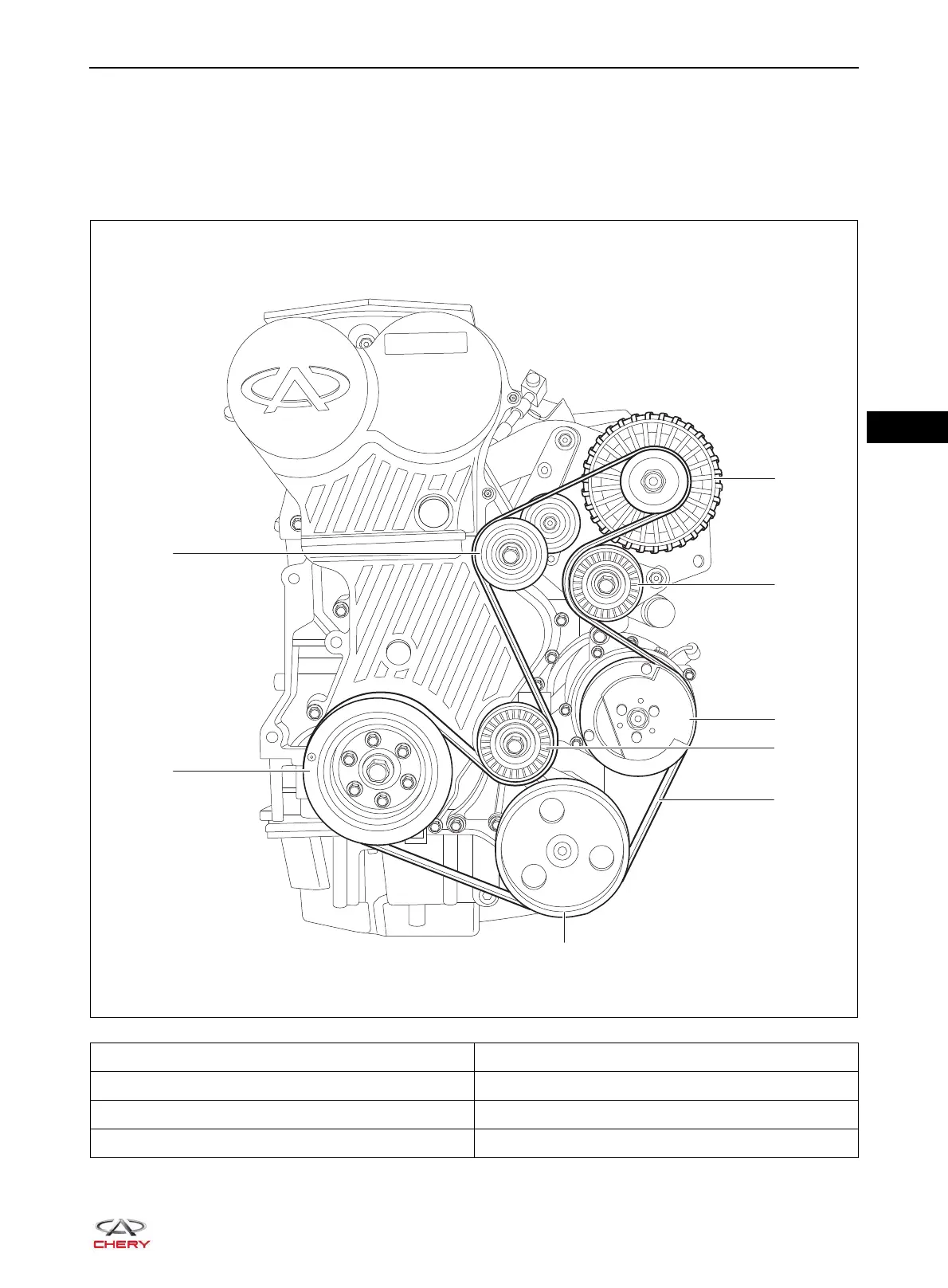

1 - Alternator 2 - Upper Idler Pulley
3 - A/C Compressor 4 - Lower Idler Pulley
5 - Accessory Drive Belt 6 - Power Steering Pump Pulley
7 - Crankshaft Pulley 8 - Accessory Drive Belt Tensioner
RT21070020
5
3
1
4
2
7
8
6
