Chery Automobile Co., Ltd.
40 - REVERSING RADAR SYSTEM
40–4
40

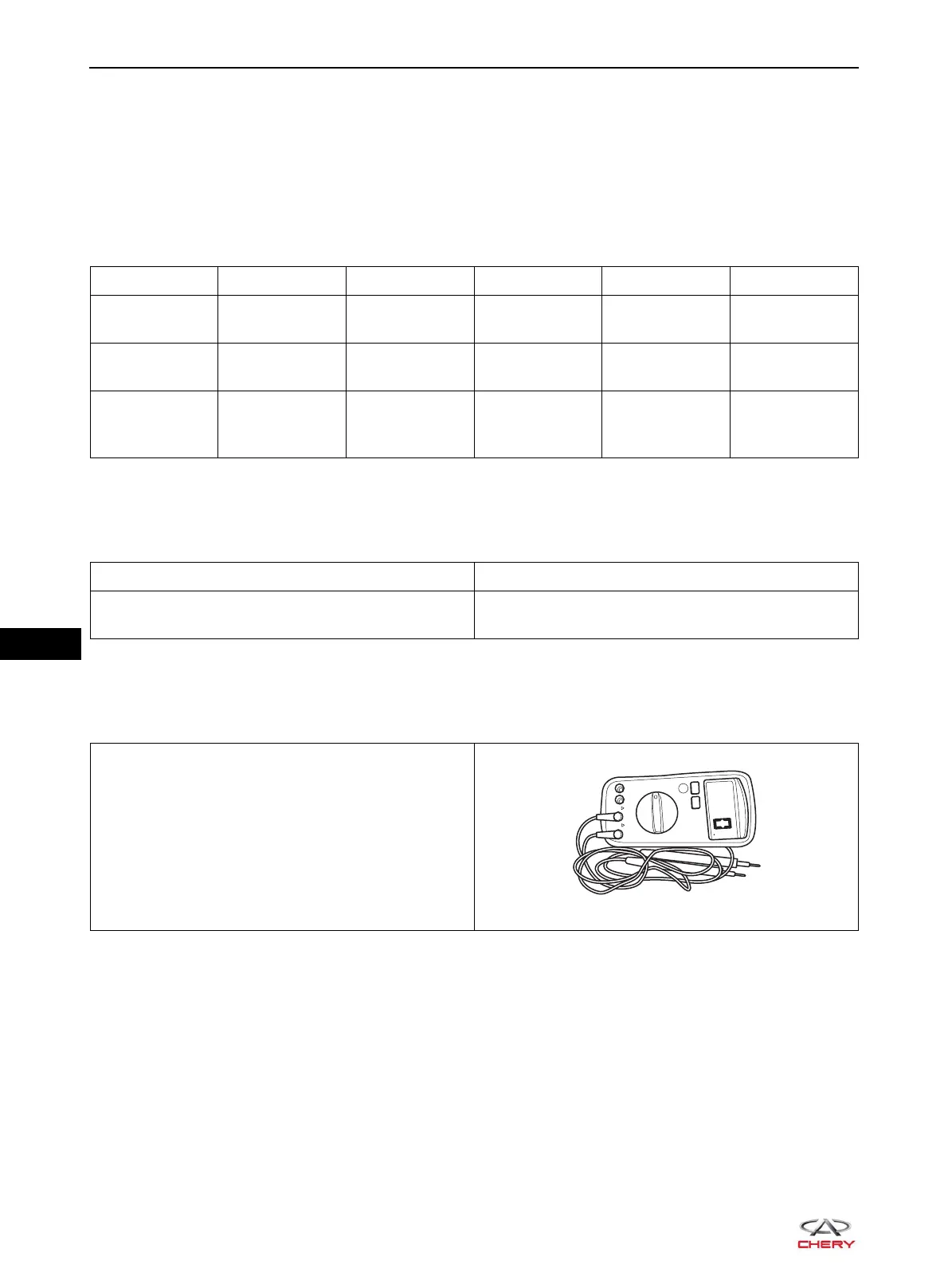

Reversing Radar Normal Alarm Display
Reversing radar system consists of four reversing radar sensors and one reversing radar control module
assembly.
It is activated when the shift lever is shifted to R and reversing at the speed below 5 km/h with ignition switch
ON. The corresponding measured message will be displayed on multi-information display and alarm with
buzzer in instrument cluster.
The response way of reversing radar system is buzzer response. The table below shows the correspondence
between buzzer response frequency and actual obstacle distance:
Specification
Torque Specification
Tool
General Tool
Alarm Type 1st Section 2nd Section 3rd Section 4th Section 5th Section
Displayed Area Safe Area
Pre-warning
Area
Amble Area Park Area Park Area
Alarm Distance
(cm)
> 150 95 - 150 65 - 90 35 - 60 ≤ 35
Buzzer Sound
Frequency
No Sound
(OFF)
1Hz (ON
500ms/OFF
500ms)
2Hz (ON
250ms/OFF
250ms)
4Hz (ON
125ms/OFF
125ms)
Continuous
Sound
Description Torque (N·m)
Fixing Bolt Between Reversing Radar Control
Module Assembly and Body
5 ± 1
Digital Multimeter
To Next Page
