Chery Automobile Co., Ltd.
18 - QR019CHB CVT
18–22
18

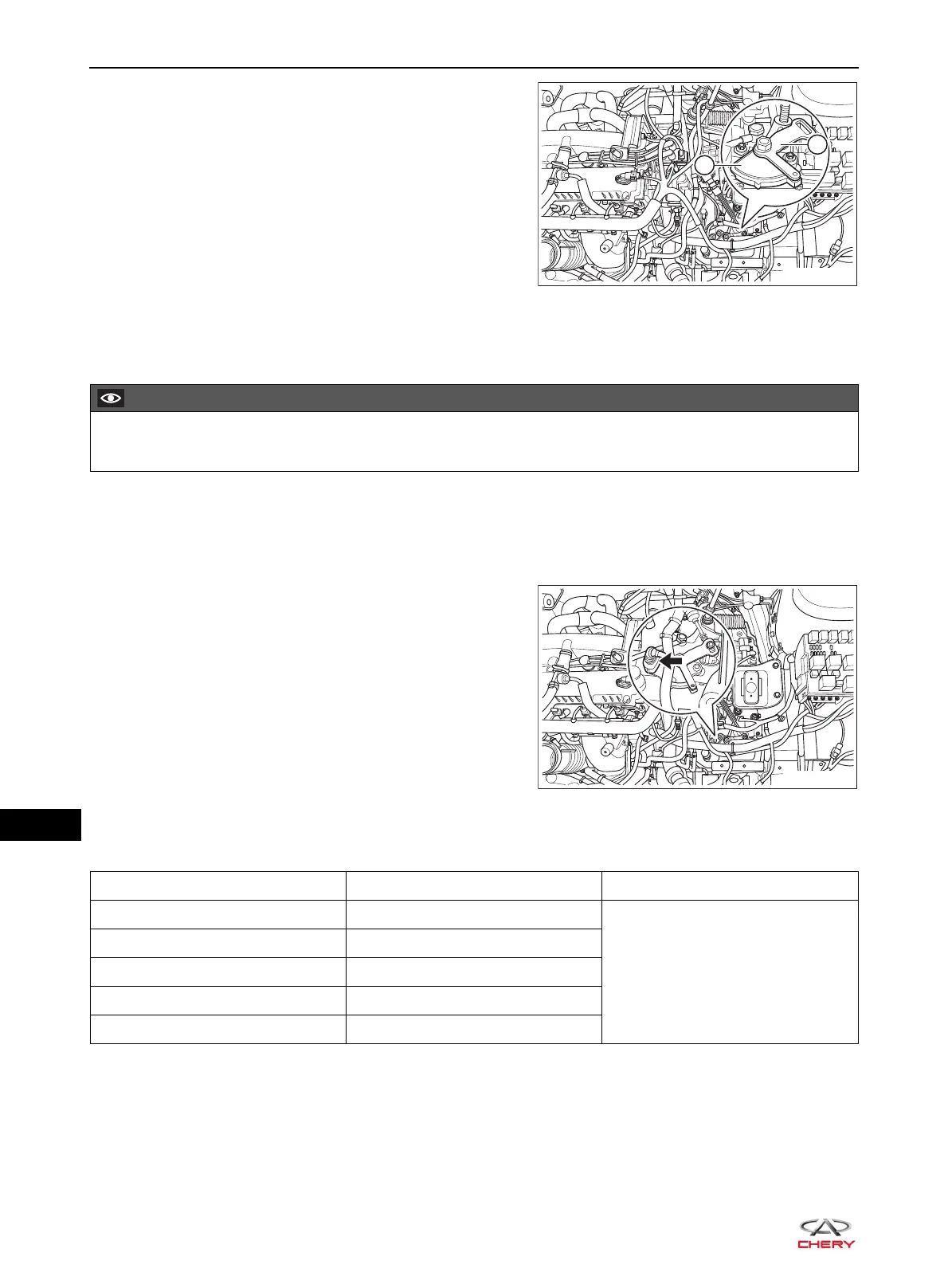

7. Loosen the transmission range sensor fixing bolts, and
adjust the relative position of the transmission range
sensor and shift arm to make the holes of gear shift arm
(1) and transmission range sensor (2) coincident.
8. Use a proper tool to fix the gear shift arm and transmission range sensor, and then tighten the bolts to the
specified torque.
9. Start engine only when the gear lever is at the "P" or "N" gear.
Transmission Range Sensor Inspection
1. Turn off all the electrical devices and ignition switch.
2. Disconnect the negative battery cable.
3. Disconnect the transmission range sensor wire harness
connector.
4. Check for continuity between the terminals of transmission range sensor wire harness connector
according to the table below.
If result is not as specified, replace the transmission range sensor.
The ledge of the gear shift cable must be placed into the slot of shift arm.
Gearshift Position Terminal Specified Condition
P 1 - 7, 9 - 10
Continuity
R 7 - 8
N 2 - 7, 9 - 10
D 3 - 7
L 4 - 7
