30 - ELECTRONIC POWER STEERING
30–25
30

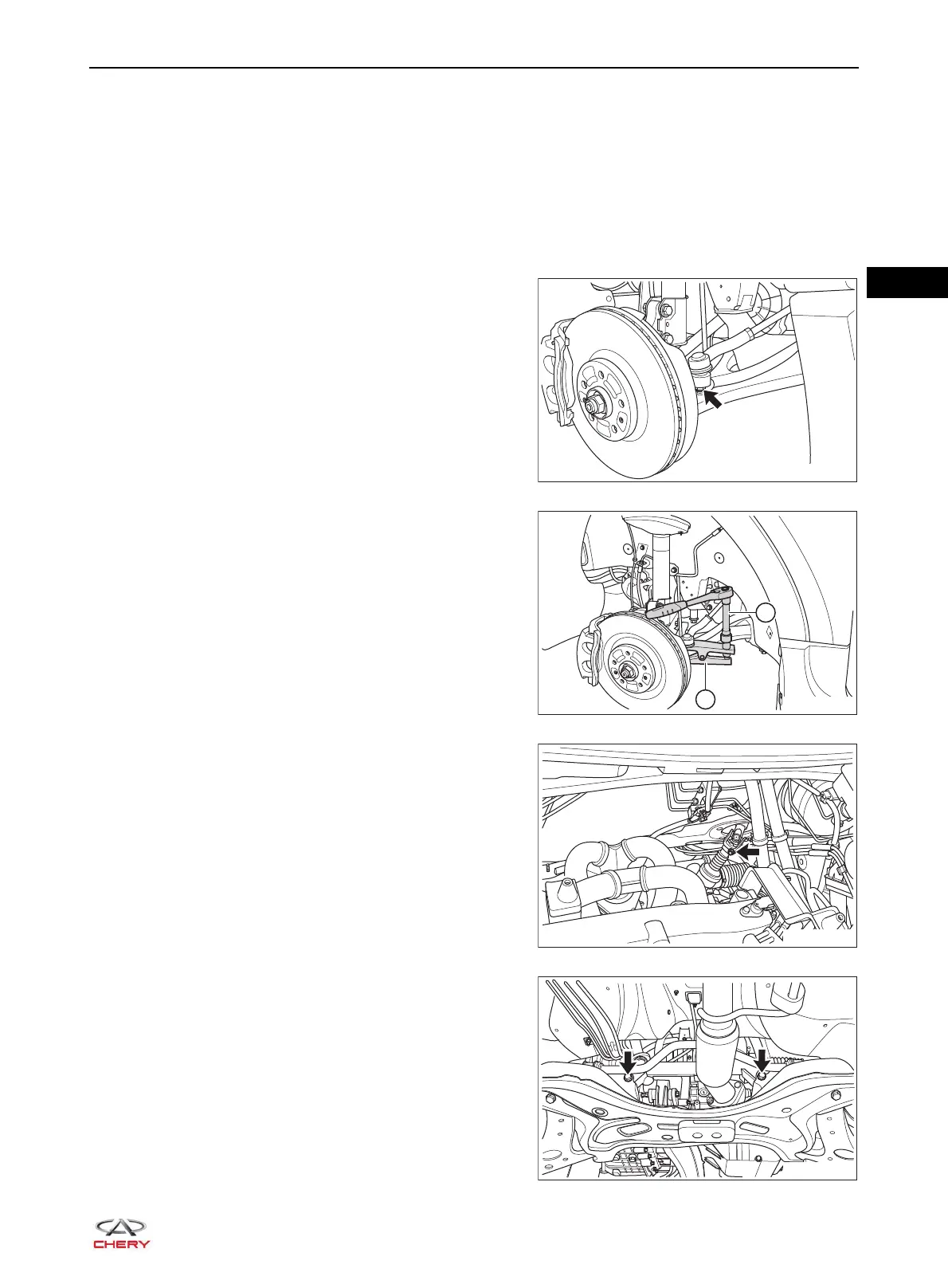

Steering Gear Assembly
Removal
1. Turn the steering wheel to the straight ahead position.
2. Turn off all the electrical equipment and ignition switch.
3. Disconnect the negative battery cable.
4. Remove the front wheels (See page 24-9).
5. Remove steering tie rod ball pin.
a. Remove the left side steering tie rod assembly ball pin
and locking nut (arrow) of front left steering knuckle
assembly.
ï€
(Tightening torque: 35 ± 3 N·m)
b. Install ball pin separator (1), and tighten ball pin
separator bolt with wrench (2), then separate the tie
rod ball pin from the steering knuckle assembly.
6. Remove the coupling bolt (arrow) between steering
column with intermediate shaft assembly and steering
gear input shaft.
ï€
(Tightening torque: 60 ± 5 N·m)
7. Remove two fixing bolts on both sides of steering gear
brackets.
ï€
(Tightening torque: 120 ± 10 N·m)
