Headlight Assembly
Removal
HINT:
Use the same procedures for the right side and left side.ï€
Procedures listed below are for the left side.
1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the radiator grille assembly (See page 48-8).
4. Remove the water tank upper crossmember trim board (See page 48-10).
5. Remove the headlight assembly.

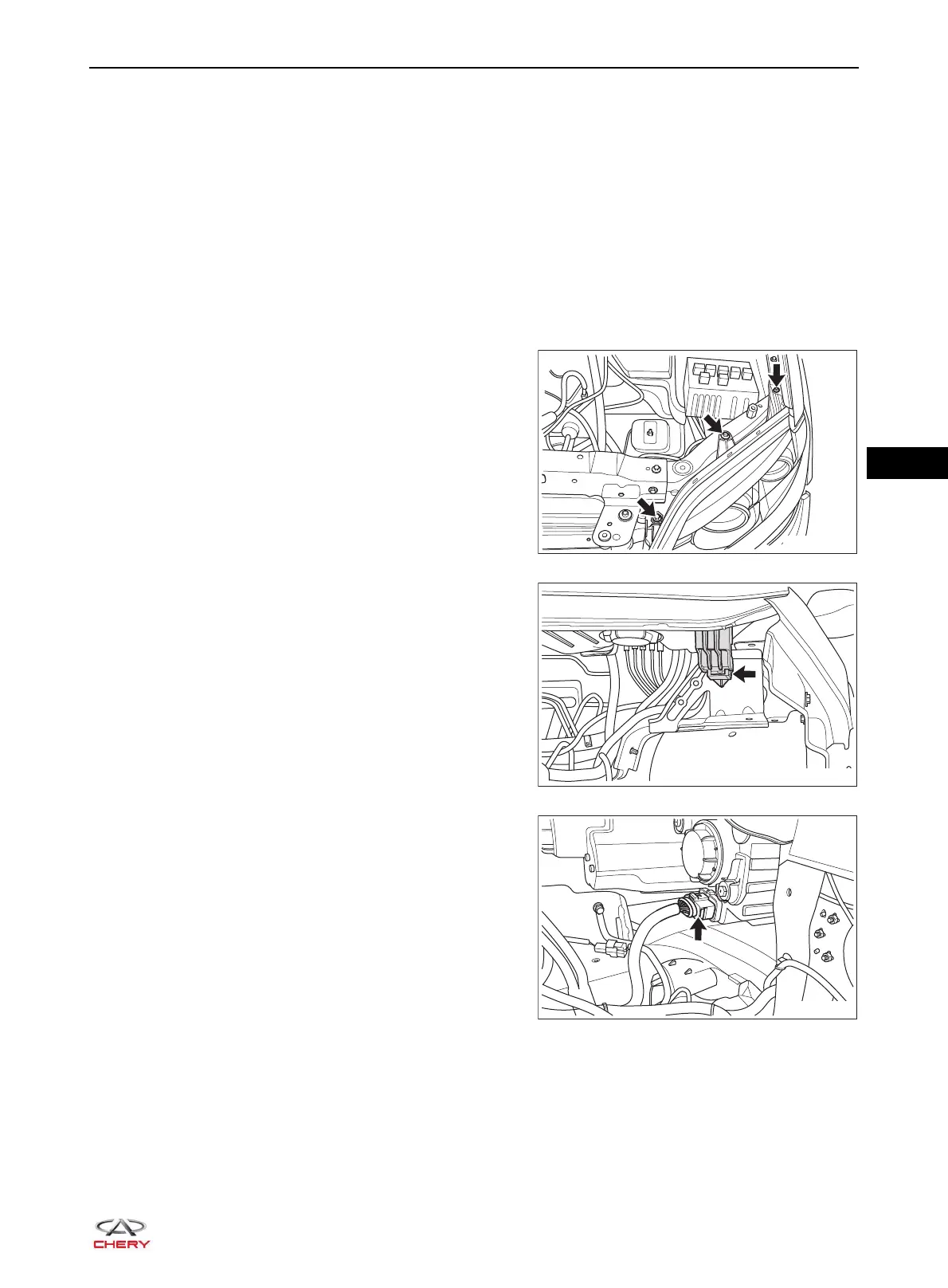

a. Remove 3 fixing bolts (arrow) from headlight
assembly.
ï€
(Tightening torque: 3.5 ± 0.5 N·m)
b. Move the headlight assembly along vehicle driving
direction, and detach the fixing clip (arrow) between
headlight assembly and mounting bracket.
c. Disconnect the headlight assembly wire harness
connector (arrow), and remove the headlight
assembly.
