Chery T21 2014 - Tank Upper Crossmember Assembly; Removal

Chery Automobile Co., Ltd.
12 - SQR484F COOLING SYSTEM
12–16
12
Tank Upper Crossmember Assembly
Removal
1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the engine trim cover assembly (See page 10-10).
4. Remove the radiator grille assembly (See page 48-8).
5. Remove the water tank upper crossmember trim board (See page 48-10).
6. Remove the engine hood lock assembly (See page 37-39).
7. Move away the hood lock cable from tank upper crossmember assembly.
8. Remove the tank upper crossmember assembly.

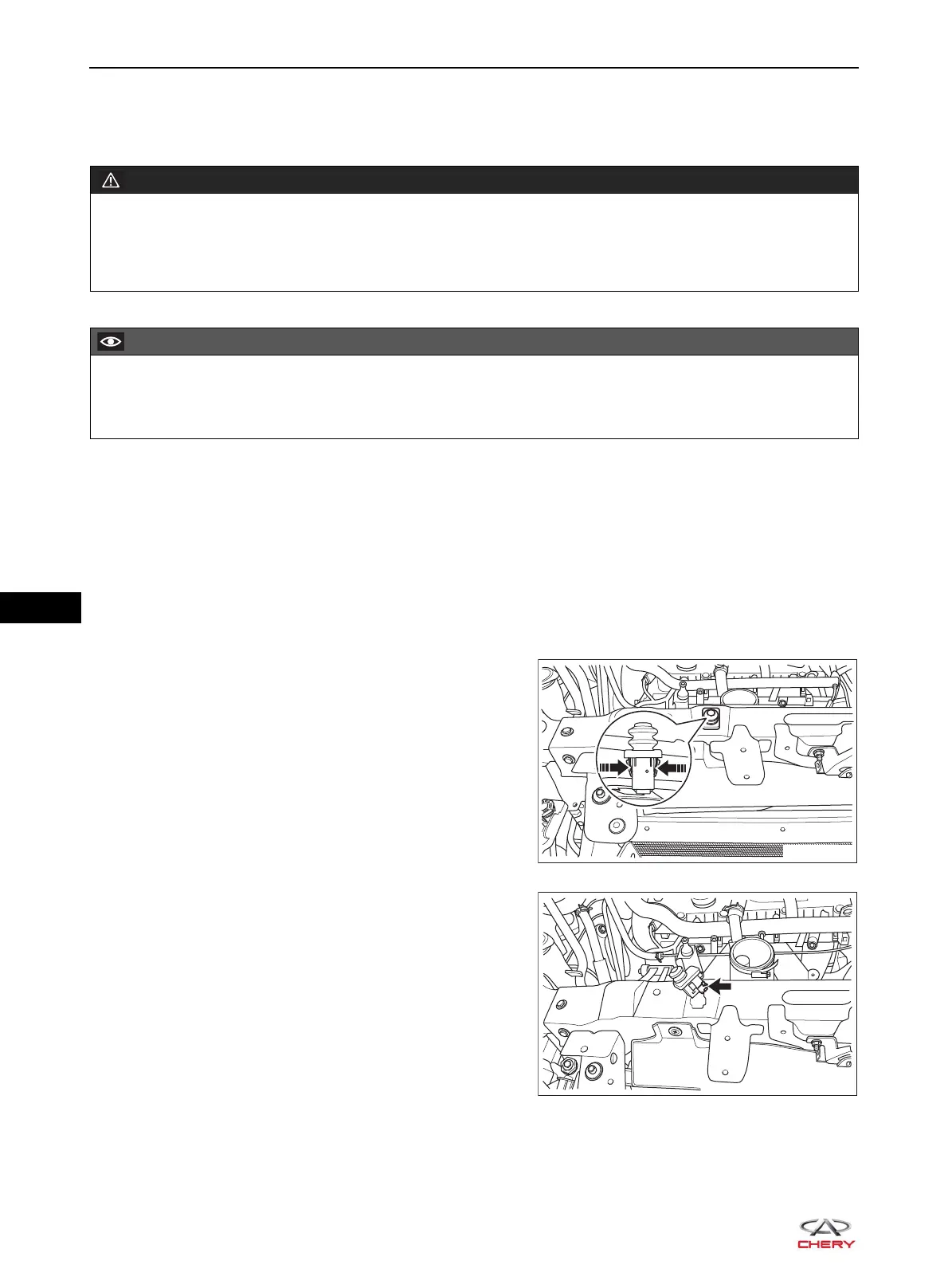

a. Press the clips on both sides of engine compartment
contact switch in the direction of arrow as shown in
the illustration, and remove the engine compartment
contact switch from tank upper crossmember
assembly.
b. Disconnect the connector (arrow) from engine
compartment contact switch, and remove the engine
compartment contact switch.
WARNING
 Perform removal procedures with engine compartment at low temperature after cooling fan stops
completely, otherwise rotating cooling fan or hot components of engine compartment may cause
serious
injury.
CAUTION
 Be sure to wear necessary safety equipment to prevent accidents when repairing.
 Try to prevent body paint surface from being scratched during removal and installation.
RT21120031
RT21120032
