Chery Automobile Co., Ltd.
07 - SQR484F ENGINE MECHANICAL
07–64
07
Engine Mounting Assembly

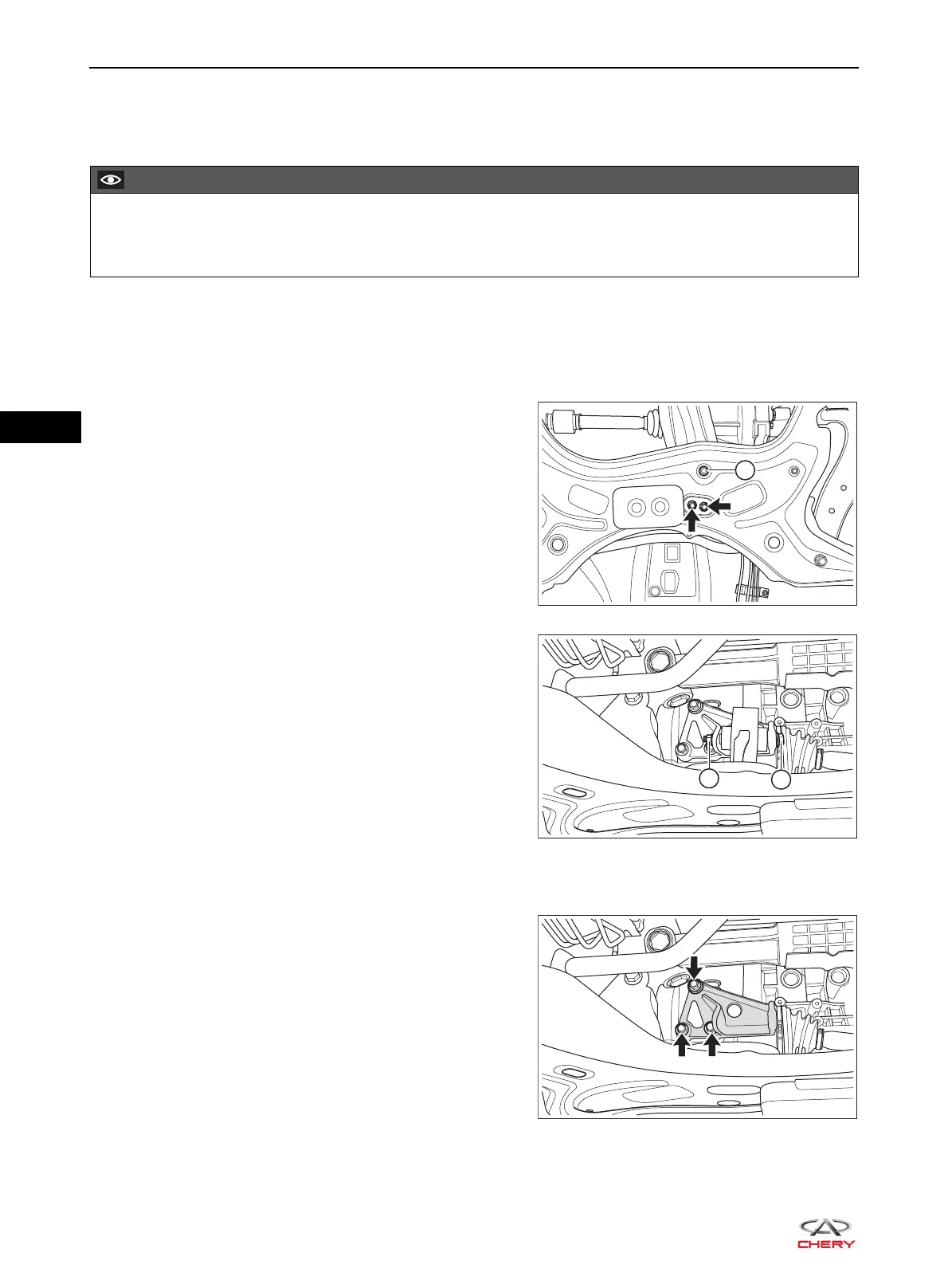

Removal & Installation - Rear Mounting Assembly
1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Support the transmission with a transmission carrier.
4. Remove the engine rear mounting cushion assembly (for MT model).
a. Remove 2 coupling bolt (arrow) between rear
mounting cushion assembly and front sub frame
welding assembly.
(Tightening torque: 70 ± 5 N·m)
b. Remove the fixing nut (1) from rear mounting cushion
assembly.
(Tightening torque: 70 ± 5 N·m)
c. Remove the locking nut (1) for through bolt between
rear mounting bracket and rear mounting cushion
assembly, and remove the through bolt (2).
(Tightening torque: 70 ± 5 N·m)
d. Remove the engine rear mounting cushion assembly.
5. Remove the engine rear mounting bracket (for MT model).
a. Remove 3 coupling bolts (arrow) between rear
mounting bracket and transmission case.
(Tightening torque: 55 ± 5 N·m)
b. Remove the engine rear mounting bracket from transmission case.
Be sure to wear necessary safety equipment when repairing to prevent accidents.
Try to prevent body paint surface from being scratched during removal and installation.
To Next Page
