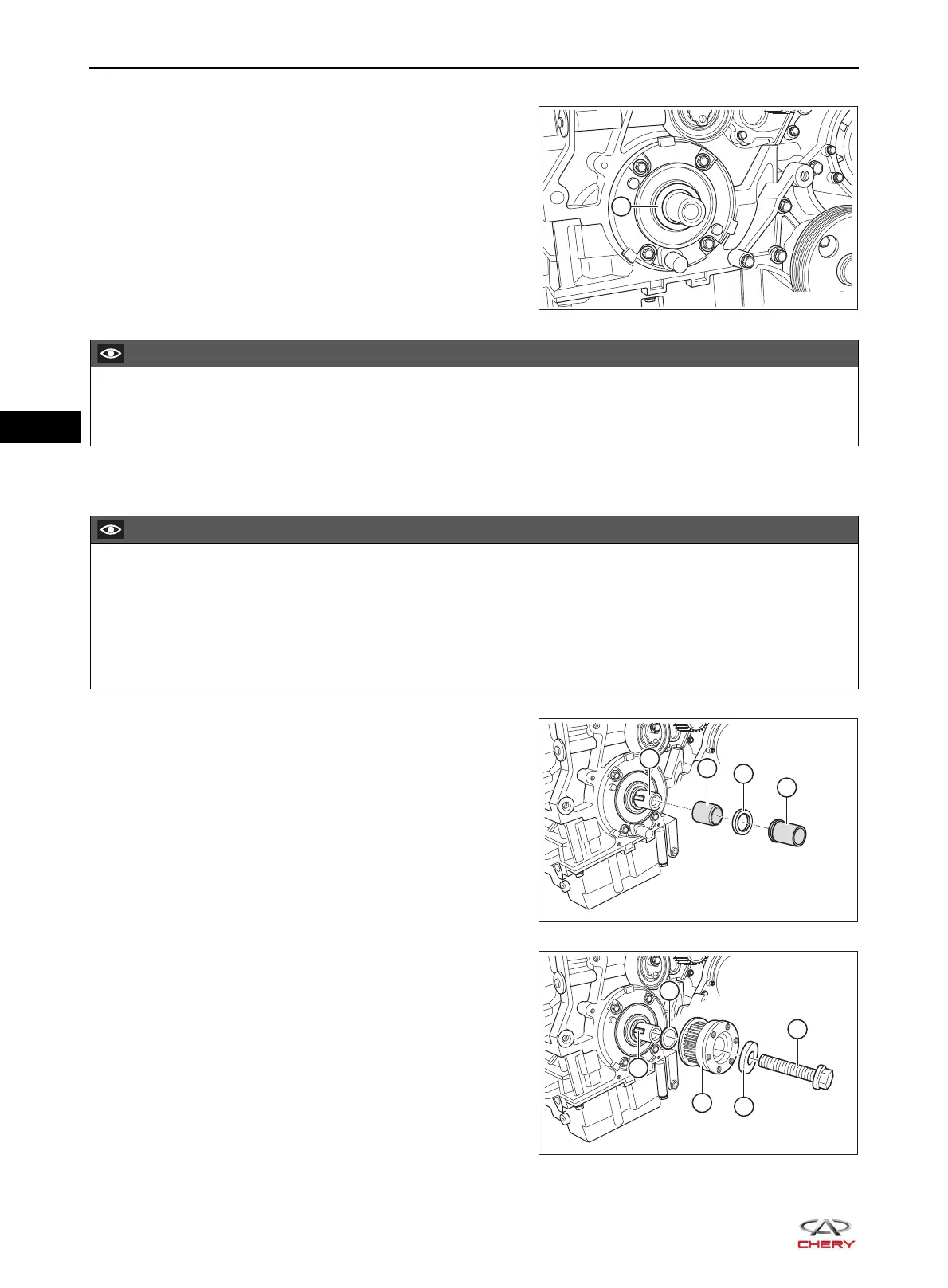

11.Remove the crankshaft front oil seal.
a. Using a flat tip screwdriver wrapped with tape, pry out
the crankshaft front oil seal (1) carefully.
Installation
1. Remove the dirt around the crankshaft front oil seal
retainer and on its inner wall.
2. Install the crankshaft front oil seal guide tool (3) to the
crankshaft (4).
3. Install the new oil seal (2) to the crankshaft front oil seal
guide tool, and install the new oil seal to the oil seal
retainer completely with a crankshaft front oil seal
installer (1).
4. Install the lining (4).
5. Using a brass bar, install the semi-circle key (5) in place.
HINT:
Protrusion height of semi-circle key should be 2.2 - 2.3
mm.
6. Install the crankshaft timing pulley (3), washer (2) and
bolt (1) in order.
ï‚· Be careful not to damage the oil seal retainer and surface of crankshaft when removing crankshaft front
oil seal.
ï‚· Apply a coat of engine oil to crankshaft front oil seal guide tool before installing the new oil seal.
ï‚· Remove the dirt on oil seal retainer and apply a coat of engine oil to oil seal retainer and oil seal lip
before installation.
ï‚· Be sure to prevent the lip of crankshaft front oil seal from being scratched during installation. If it is
damaged, replace immediately.
RT21070280
1
2
3
4
RT21070260
4
1
5
3
2
