51 - WIRE HARNESS
51–37
51

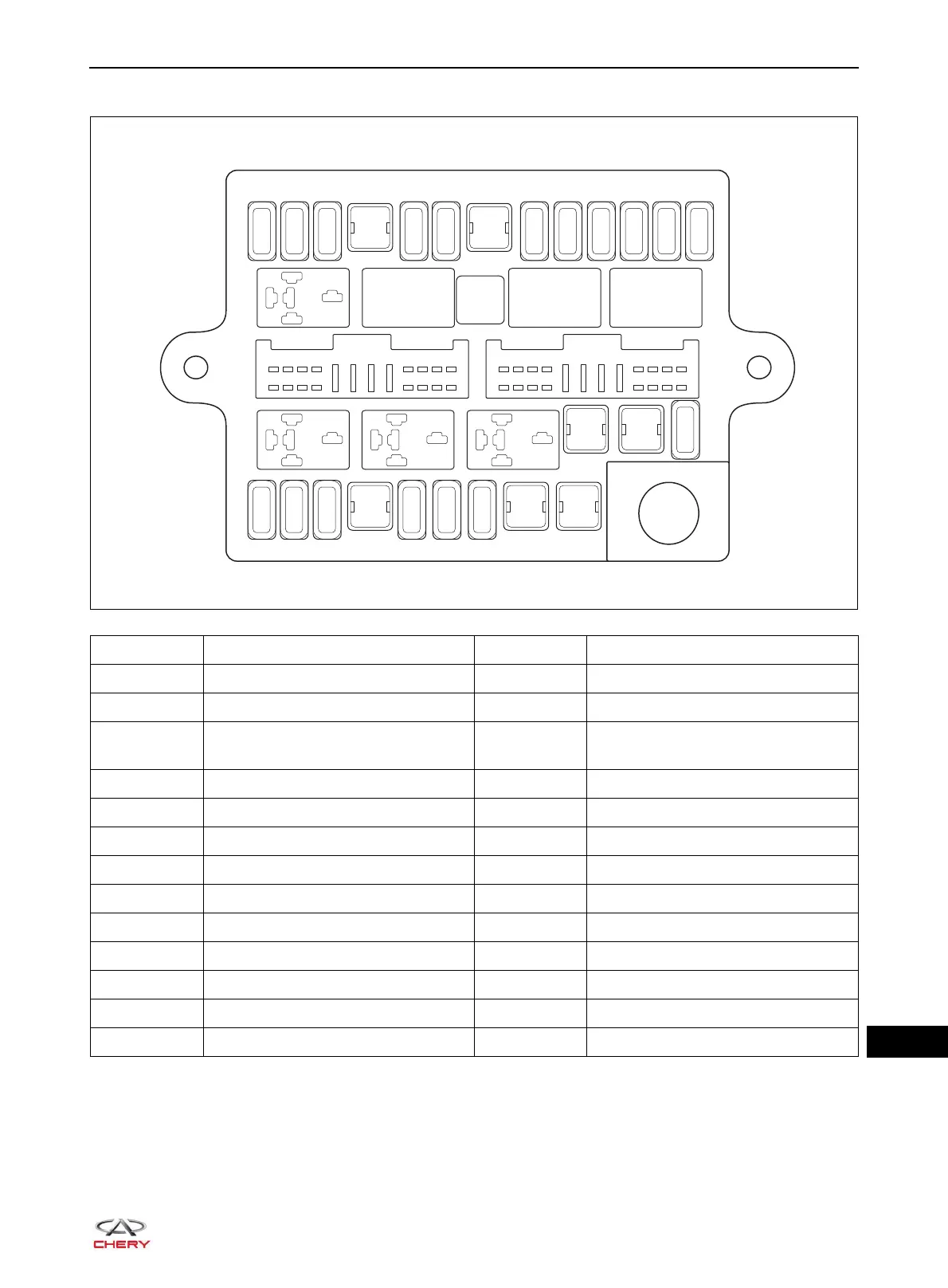

Instrument Panel Fuse and Relay Box B
No. Description No. Description
RF27 Spare RF40 Right Window Jam Protection
RF28 - RF41 Left Window Jam Protection
RF29 - RF42
Outside Rear View Mirror Heating/
Defrosting Feedback Signal
RF30 IP Fuse and Relay Box A RF43 -
RF31 - RF44 -
RF32 Power Seat Adjustment RF45 Backup Power Supply
RF33 Rear Defroster RF46 Ignition Switch
RF34 Left Seat Heater RF47 PEPS
RF35 Brake Light Switch RF48 -
RF36 Reserve RF49 Sunroof
RF37 Right Seat Heater RF50 -
RF38 - RF51 -
RF39 -
RF27 15A RF32 20A RF34 10A RF35 10A RF36 10A RF37 10A
RF42 10A
RF28 RF29 RF31
Rear defroster
Left seat
relay
heater relay
Right seat
heater relay
RF38 RF39
RF43 RF44
RF30
20A 25A
RRL Y02 RRL Y03 RRL Y04
RF33
RF40
30A 30A
RF41
RF46
25A
RF50 RF51
Fuse
puller
+
RF45 10A RF47 10A
RF48
RF49 20A
RT21510140
