17 - QR525MHE TRANSMISSION
17–47
17
Inspection

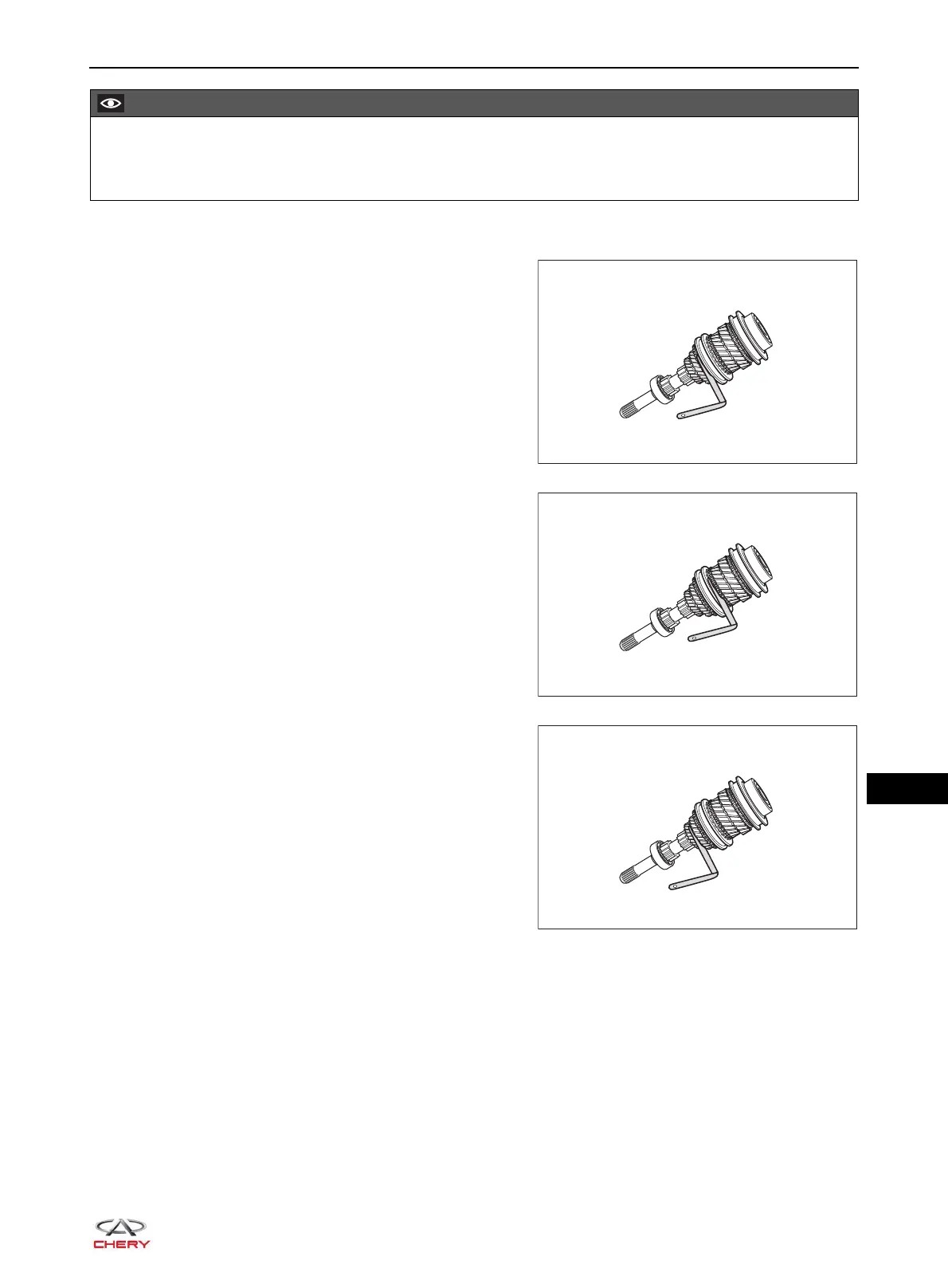

1. Using a feeler gauge, measure clearance between 3rd
drive gear and synchronizer ring.
Standard value: 1.35 mm
Limit value: 1.100 - 1.600 mm
2. Using a feeler gauge, measure clearance between 4th
drive gear and synchronizer ring.
Standard value: 1.35 mm
Limit value: 1.100 - 1.600 mm
3. Using a feeler gauge, measure clearance between 2nd
drive gear and 3rd drive gear.
Standard value: 0.65 mm
Limit value: 0.45 - 0.85 mm
CAUTION
 Check gears on the input shaft for smooth rotation after installation.
 Check engagement of gears on the input shaft for looseness or sticking.
RT21173040
RT21173041
RT21173042
