49 - INTERIOR
49–23
49
C-pillar Lower Protector Assembly
Removal
HINT:
 Use the same procedures for the right side and left side.
 Procedures listed below are for the left side.
1. Remove the rear left doorsill pressure plate assembly (See page 49-11).
2. Remove the rear left door opening weatherstrip (See page 49-14).
3. Remove the luggage compartment carpet assembly (See page 49-12).
4. Remove the rear left seat assembly (See page 49-15).

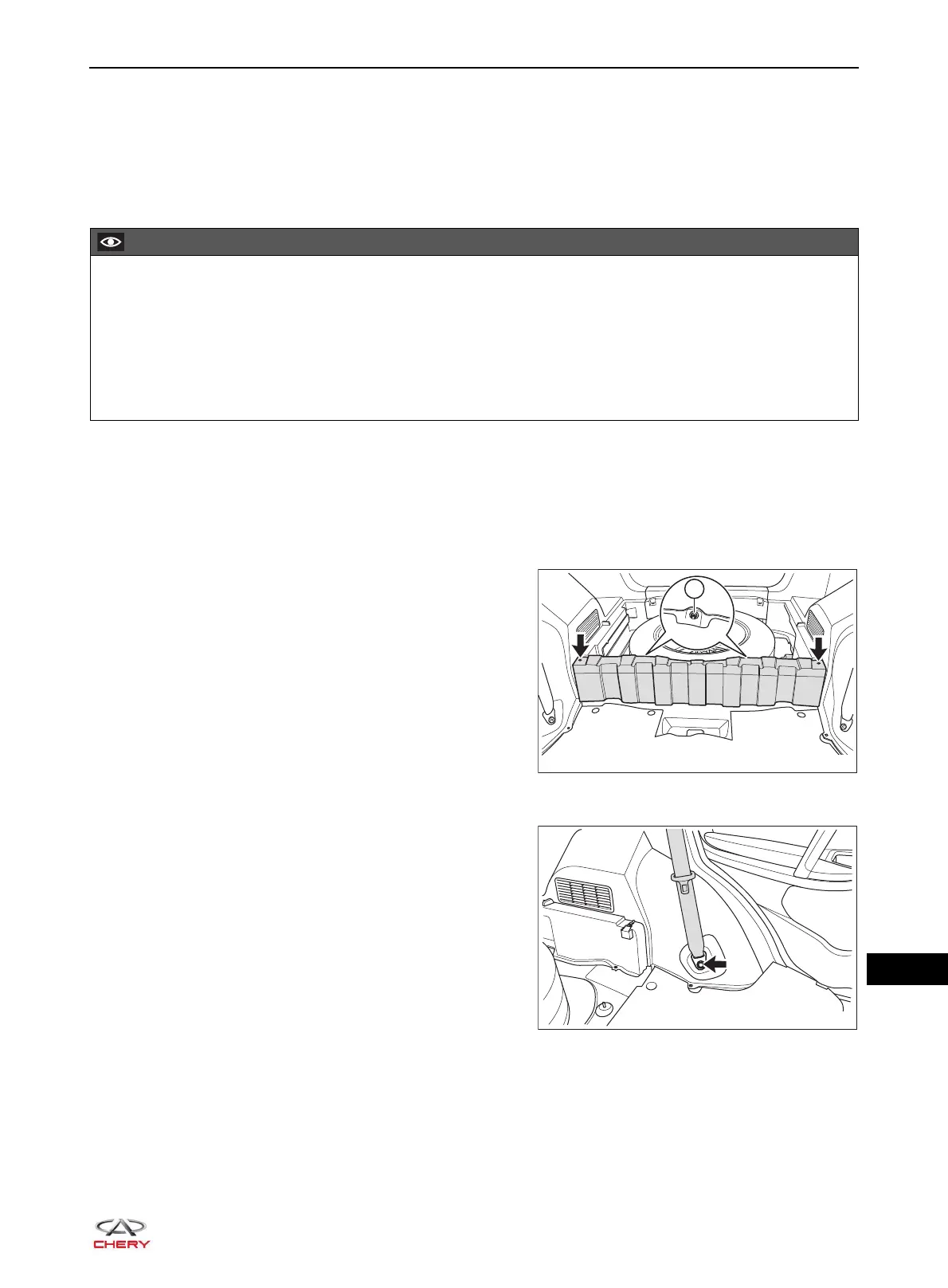

5. Remove the back door baffle plate assembly.
a. Remove 2 fixing nuts (1) from the back door baffle
plate assembly.

(Tightening torque: 1.5 ± 1 N·m)
b. Remove 2 fixing screws (arrow) from the back door
baffle plate assembly and remove the back door baffle
plate assembly.

(Tightening torque: 1.5 ± 1 N·m)
6. Remove the left C-pillar lower protector assembly.
a. Remove the fixing bolt (arrow) from the lower part of
front seat belt.

(Tightening torque: 50 ± 5 N·m)
CAUTION
 Make sure to wear safety equipment to prevent accidents when removing the C-pillar lower protector
assembly.
 Appropriate force should be applied when removing the C-pillar lower protector assembly. Be careful not
to operate roughly.
 Prevent interior and body paint from being scratched when removing the C-pillar lower protector
assembly.
RT21490141
1
RT21490140
