Chery T21 2014 - Installation

Chery Automobile Co., Ltd.
08 - SQR484F FUEL SUPPLY SYSTEM
08–25
08

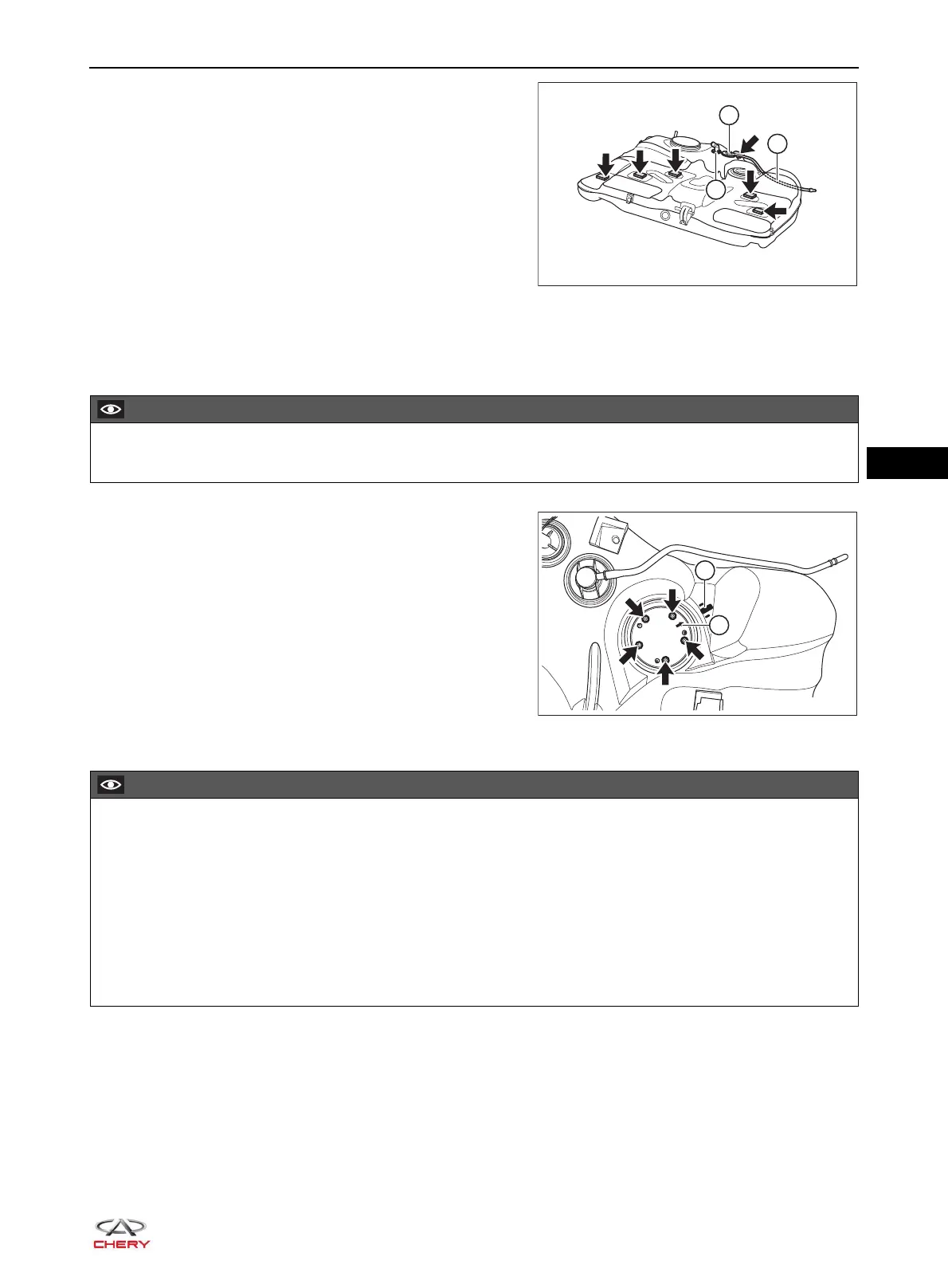

3. Fuel Tank Cushion
Pay attention to installation positions of fuel tank
cushions (arrow). Incorrect installation will damage the
fuel tank or fuel pipe due to friction between fuel tank and
body.
Installation
1. Install the fuel level sensor.
a. Install the fuel level sensor into the fuel tank.
b. Align mark (1) on the fuel level sensor and mark (2) on
the fuel tank.
c. Install 5 fixing bolts (arrow) to the fuel level sensor.
(Tightening torque: 13 ± 2 N·m)
2. Other installation procedures are in the reverse order of removal.
RT21080250
1
2
3
CAUTION
 DO NOT break the float when installing the fuel level sensor.
RT21080251
1
2
CAUTION
 Fuel lines and ventilation pipes must be reinstalled to the original positions on fuel tank. Otherwise the
friction caused by body vibration will damage fuel lines and lead to fuel leakage.
 Before connecting hose, check if there is any damage or foreign matter on hose or joint.
 During installation, push in fuel pipe connector until a click sound is heard, then check that fuel pipe joint
clip is on the collar of fuel pipe joint. After installing the pipe joint clip, check that fuel pipe joint cannot be
pulled out. Be careful not to damage the joint. If the clip is damaged, replace it.
 Turn ignition switch ON (without starting engine) to apply fuel pressure to fuel supply system, and then
check connections for leakage.
