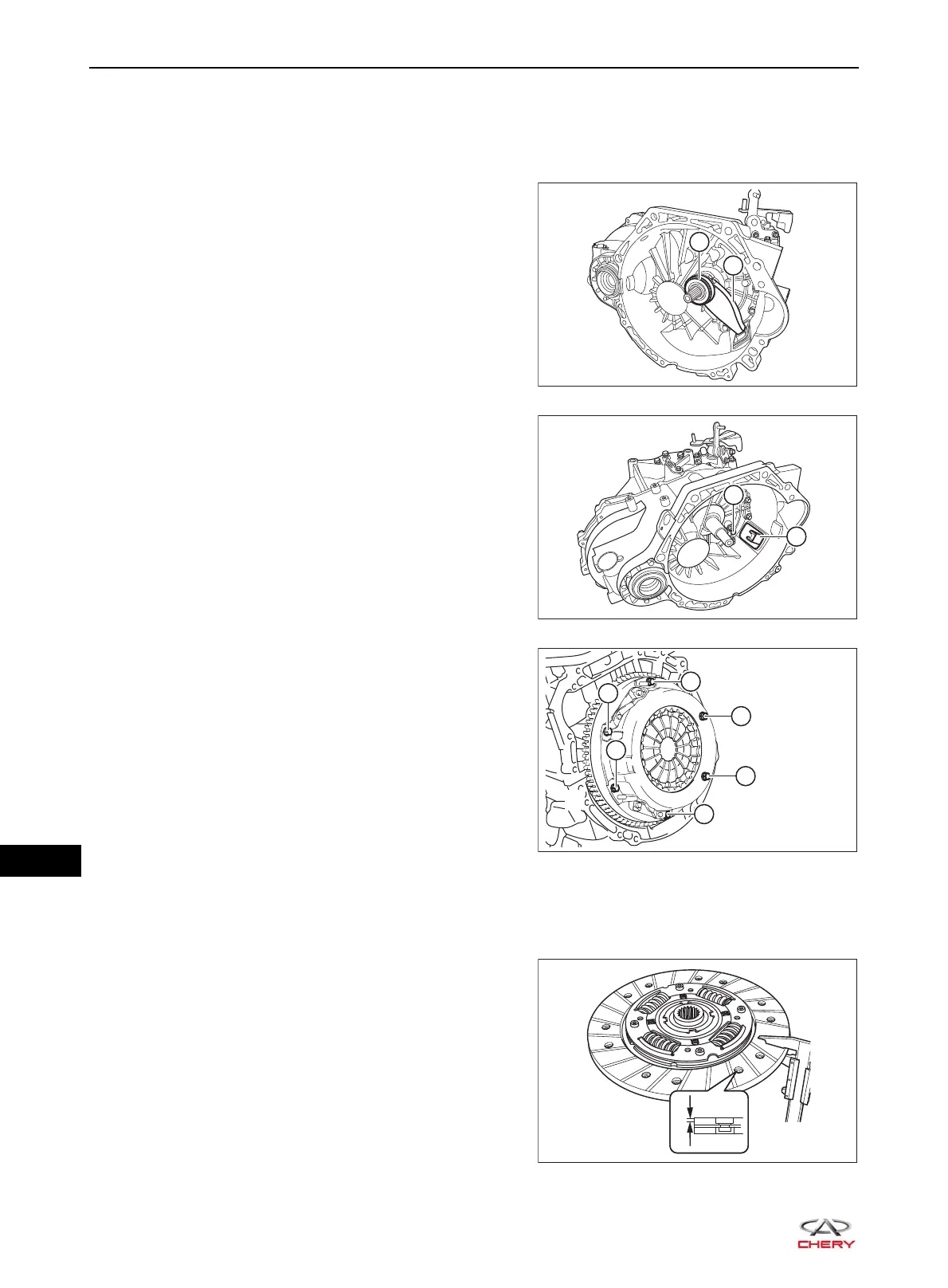

Clutch Unit
Removal
1. Remove the transmission assembly (See page 17-21).
2. Remove the clutch release bearing (1).
3. Remove the release fork (2) from clutch cover.
4. Remove the release fork ball seat (1).
5. Remove the release fork dust boot (2).
6. Remove the clutch pressure plate bolts.
7. Remove the clutch pressure plate and clutch driven disc.
Inspection
1. Check clutch driven disc.
a. Visually check clutch driven disc for dirt or glazing. Clean or replace clutch driven disc as necessary.
2. Use a vernier caliper to measure the thickness of clutch
driven disc.
Standard thickness: 7.6 ± 0.2 mm
Minimum rivet depth: 1.2 mm
If result is not as specified, replace clutch driven disc.
1
2
RT21190170
1
2
RT21190180
RT21190190
1
3
5
6
4
2
RT21190200
