41 - HORN
41–6
41
DIAGNOSIS & TESTING
Problem Symptoms Table
HINT:
Use the table below to help determine the cause of the problem symptoms. Check each suspected area in
sequence. Repair or replace the faulty components, or adjust as necessary.

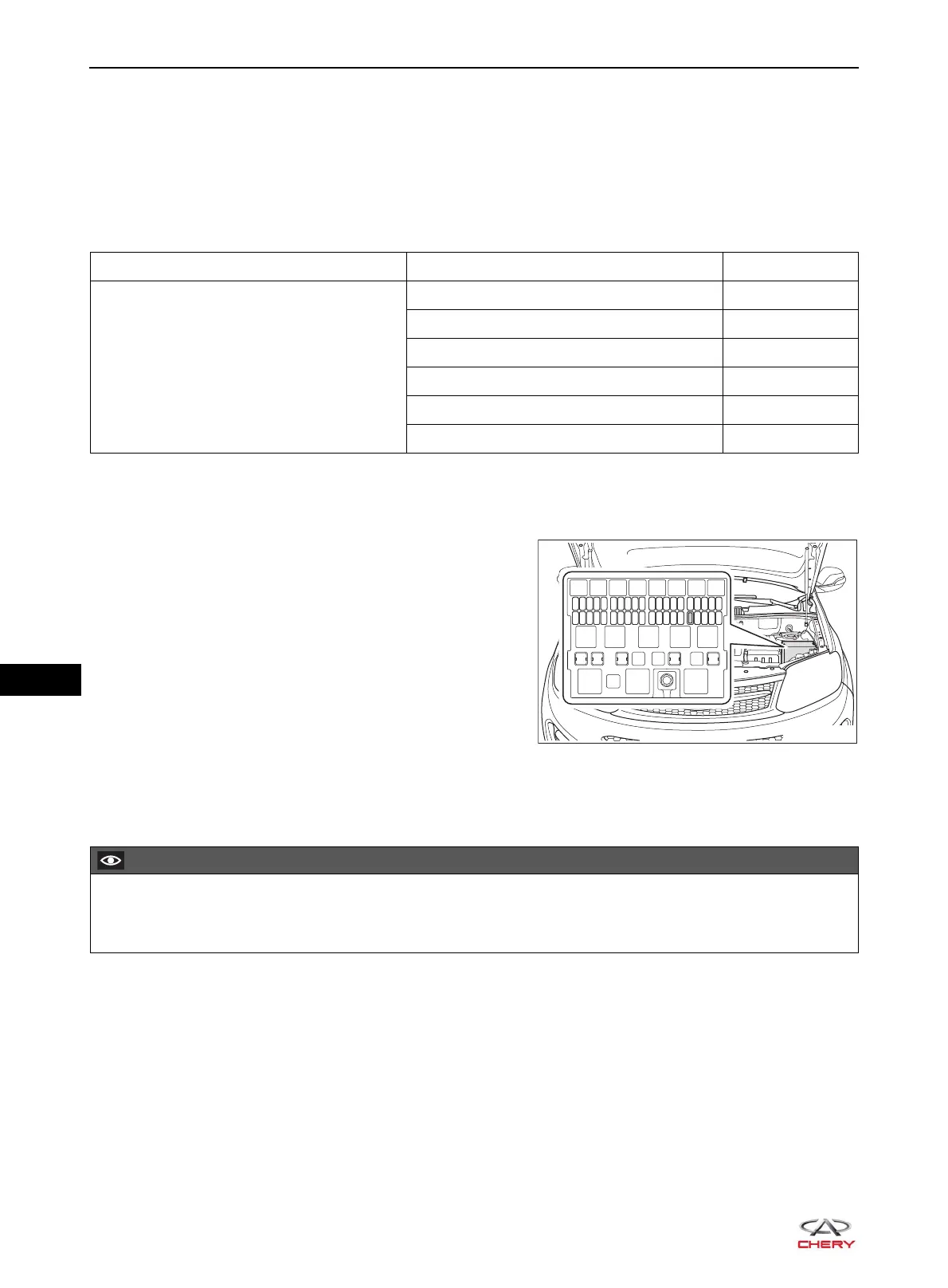

Horn Fuse Inspection
1. Identify the horn fuse on the engine compartment fuse
and relay box.
2. Check horn fuse.
a. Using a fuse puller, remove the horn fuse (15 A).
b. Check if the fuse is blown. Replace the fuse if it is blown.
Symptom Suspected Area See page
Horn does not sound
Horn fuse (blown)
51-34
Low pitched horn (damaged) 41-8
High pitched horn (damaged) 41-8
Horn switch (damaged) 32-65
Spiral cable (damaged) 32-67
Wire harness (short or open) -
ï‚· Use a fuse with the same specification as the original fuse to avoid affecting normal usage of electrical
equipment.
