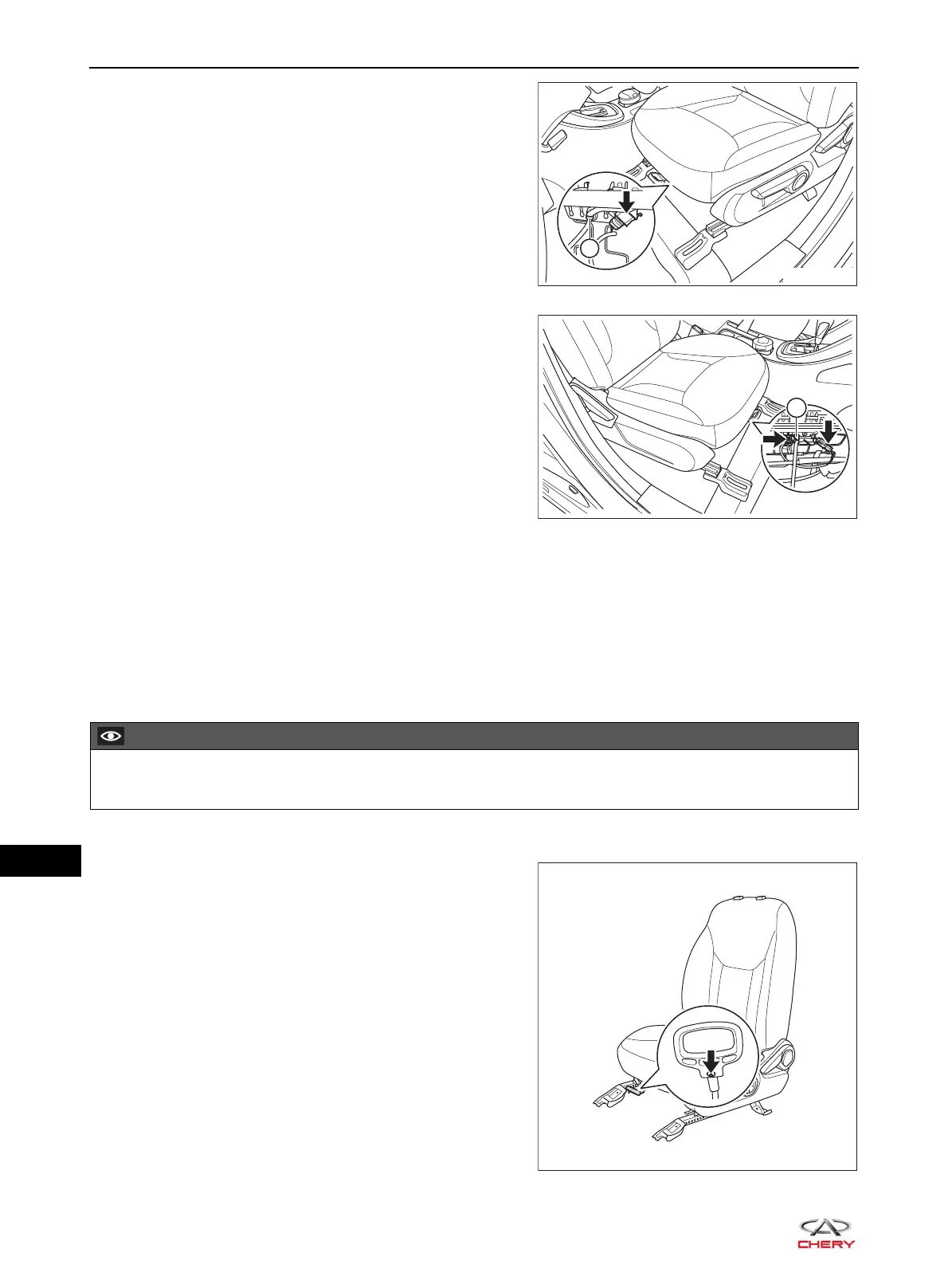

g. Disconnect the wire harness connector (arrow) and
clip (1) under the seat assembly (for driver seat
assembly).
h. Disconnect the wire harness connectors (arrow) and
clip (1) under the seat assembly (for front passenger
seat assembly).
i. Pull up the seat track unlock handle and move the seat assembly to the mid-position. At the same time,
operate the seat reclining adjuster handle and move the seatback to the upright position, and remove
the driver seat assembly.
Disassembly
HINT:
Use the same procedures for the front passenger seat assembly and driver seat assembly.
Procedures listed below are for the driver seat assembly.
1. Remove the driver seat track unlock handle.
a. Remove the fixing screw (arrow) from the seat track
unlock handle, and remove the driver seat track
unlock handle.
(Tightening torque: 4.8 ± 0.5 N·m)
Be sure to wear safety equipment to prevent accidents when disassembling seat assembly.
