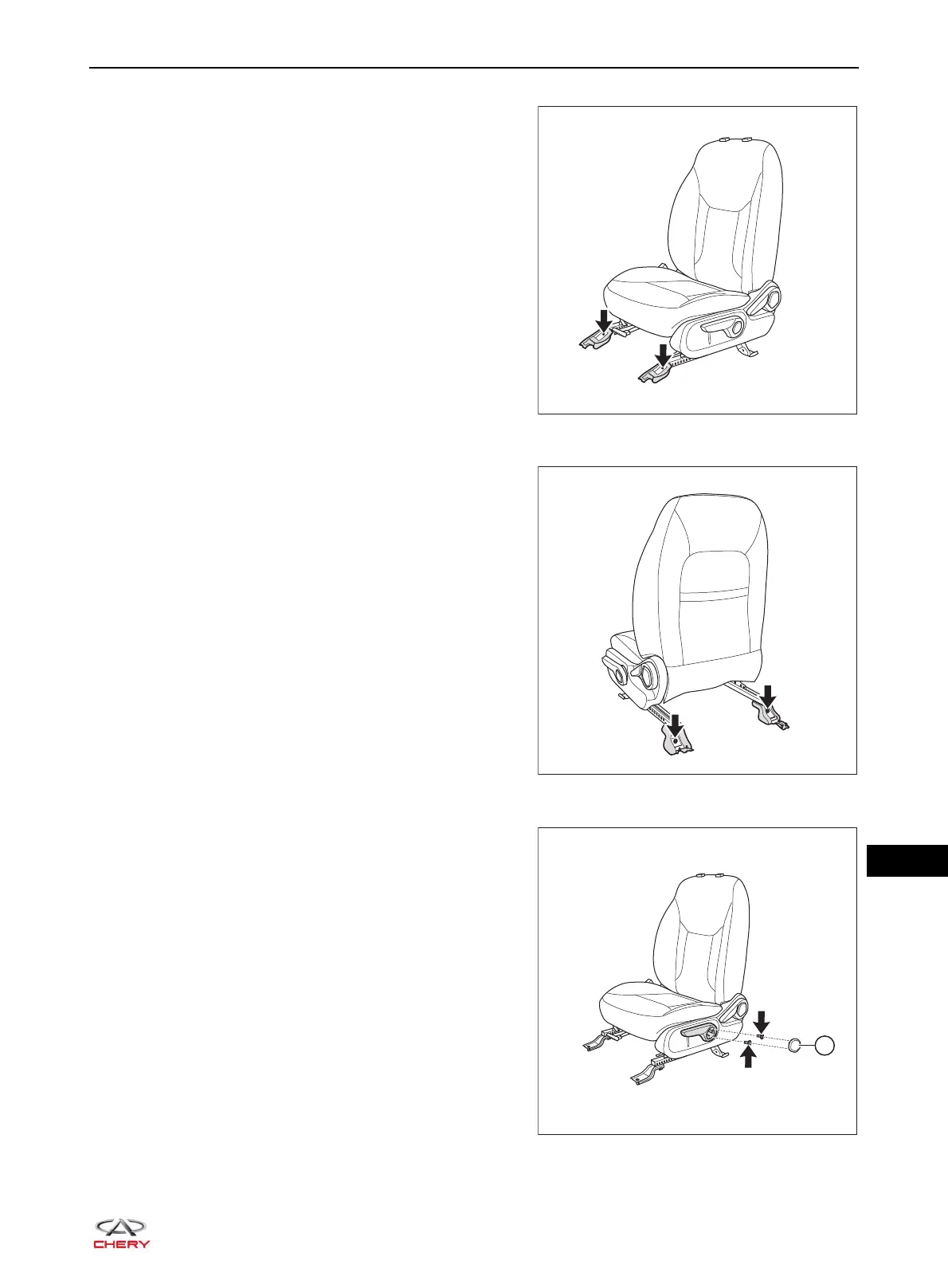

2. Remove the driver seat front mounting foot cover assembly.
a. Remove 2 fixing screws (arrow) from the seat front
mounting foot cover assembly, and remove the driver
seat front mounting foot cover assembly.
(Tightening torque: 4.8 ± 0.5 N·m)
3. Remove the driver seat rear mounting foot cover assembly.
a. Remove 2 fixing screws (arrow) from the seat rear
mounting foot cover assembly, and remove the driver
seat rear mounting foot cover assembly.
(Tightening torque: 4.8 ± 0.5 N·m)
4. Remove the seat height adjuster handle (for driver side).
a. Using a screwdriver wrapped with protective tape, pry
up the seat height adjuster handle cover (1).
b. Remove 2 fixing screws (arrow) from the seat height
adjuster handle, and remove the seat height adjuster
handle.
(Tightening torque: 4.8 ± 0.5 N·m)
