Chery Automobile Co., Ltd.
12 - SQR484F COOLING SYSTEM
12–26
12

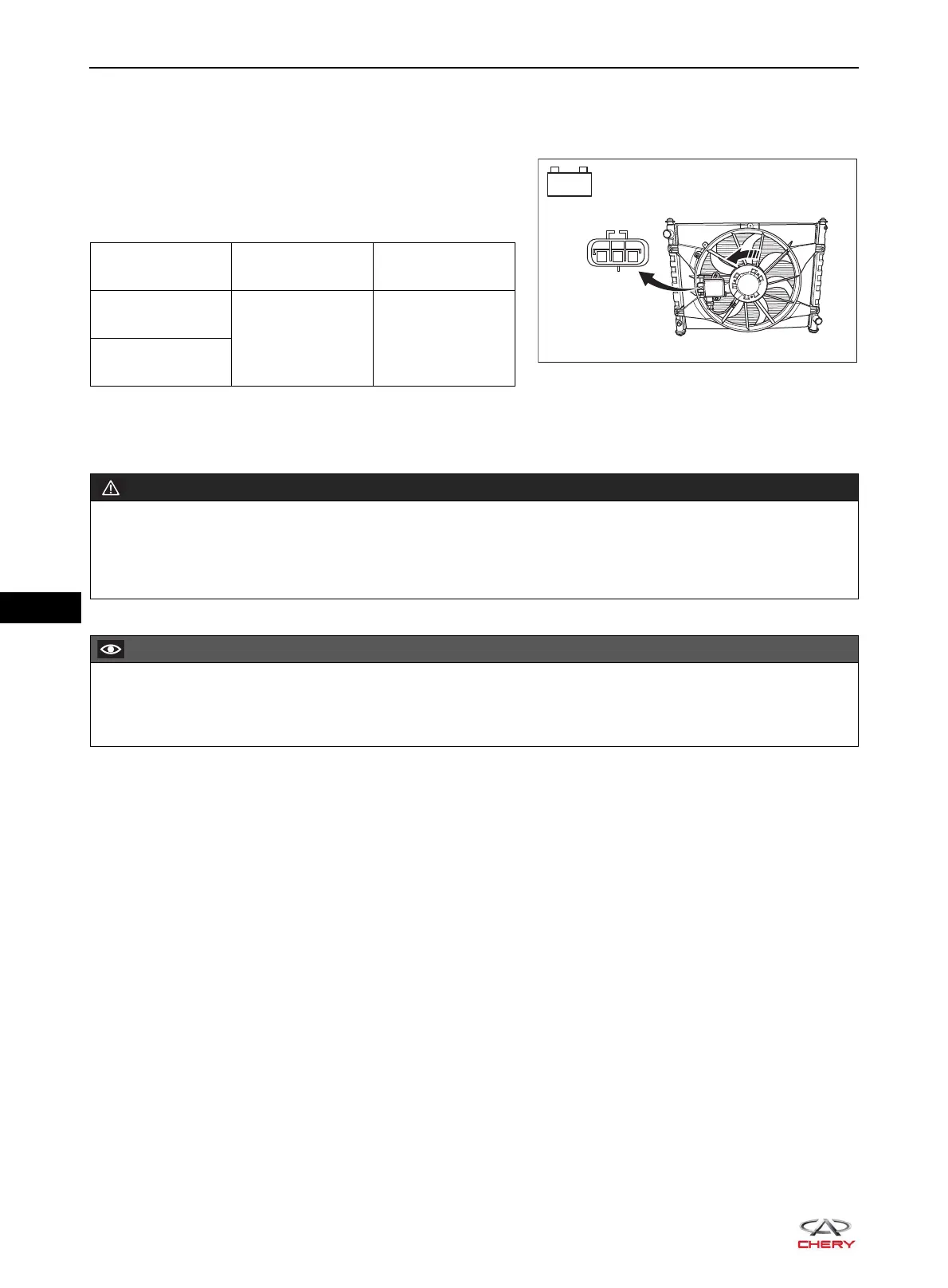

Cooling Fan Assembly
On-vehicle Inspection
1. Apply battery voltage to the specified connector terminals
of cooling fan respectively according to the table below,
and check that the cooling fan operates smoothly when
applying battery voltage.
If result is not as specified, replace cooling fan assembly (See page 12-26).
Removal
1. Turn off all the electrical equipment and ignition switch.
2. Disconnect the negative battery cable.
3. Remove the engine trim cover assembly (See page 10-10).
4. Remove the air induction pipe assembly (See page 10-16).
5. Remove the radiator grille assembly (See page 48-8).
6. Remove the water tank upper crossmember trim board (See page 48-10).
7. Remove the engine hood lock assembly (See page 37-39).
8. Remove the tank upper crossmember assembly (See page 12-16).
9. Remove the cooling fan assembly.
Multimeter
Condition
Condition
Specified
Condition
Battery positive
(+) - Terminal 1
Always
Operates
smoothly
Battery negative
(-) - Terminal 3
ï‚· Perform removal procedures with engine compartment at low temperature after cooling fan stops
completely, otherwise rotating cooling fan or hot components of engine compartment may cause
serious
injury.
ï‚· Be sure to wear necessary safety equipment to prevent accidents when repairing.
ï‚· Try to prevent body paint surface from being scratched during removal and installation.
