Chery Automobile Co., Ltd.
26 - BRAKE
26–20
26
Removal
1. Drain the brake fluid (See page 26-13).
2. Remove the air filter assembly (See page 10-17).

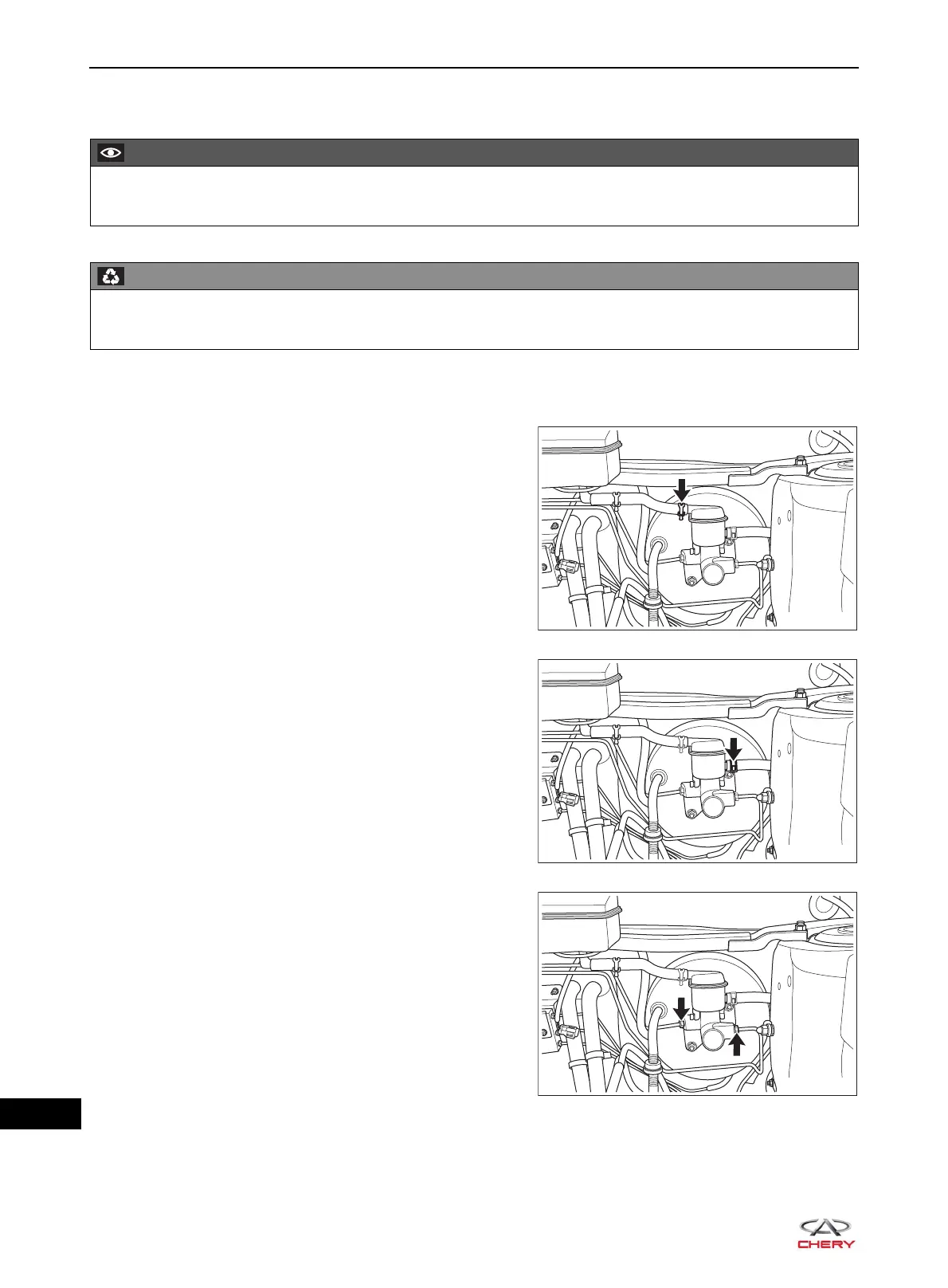

3. Remove the vacuum booster with brake master cylinder assembly.
a. Loosen the brake fluid tube fixing clamp (arrow) and
disengage the brake fluid tube from brake fluid
reservoir assembly.
b. Loosen the clutch hose fixing clamp (arrow) and
disengage the clutch hose from brake fluid reservoir
assembly (for only MT model).
c. Loosen 2 coupling plugs (arrow) between brake
master cylinder assembly and brake pipes.
ï€
(Tightening torque: 16 ± 2 N·m)
ï‚· Wash off brake fluid immediately if it comes in contact with any paint surface.
ï‚· Drained brake fluid should be well kept in a container. Never discard it at will.
To Next Page
