On-vehicle Inspection

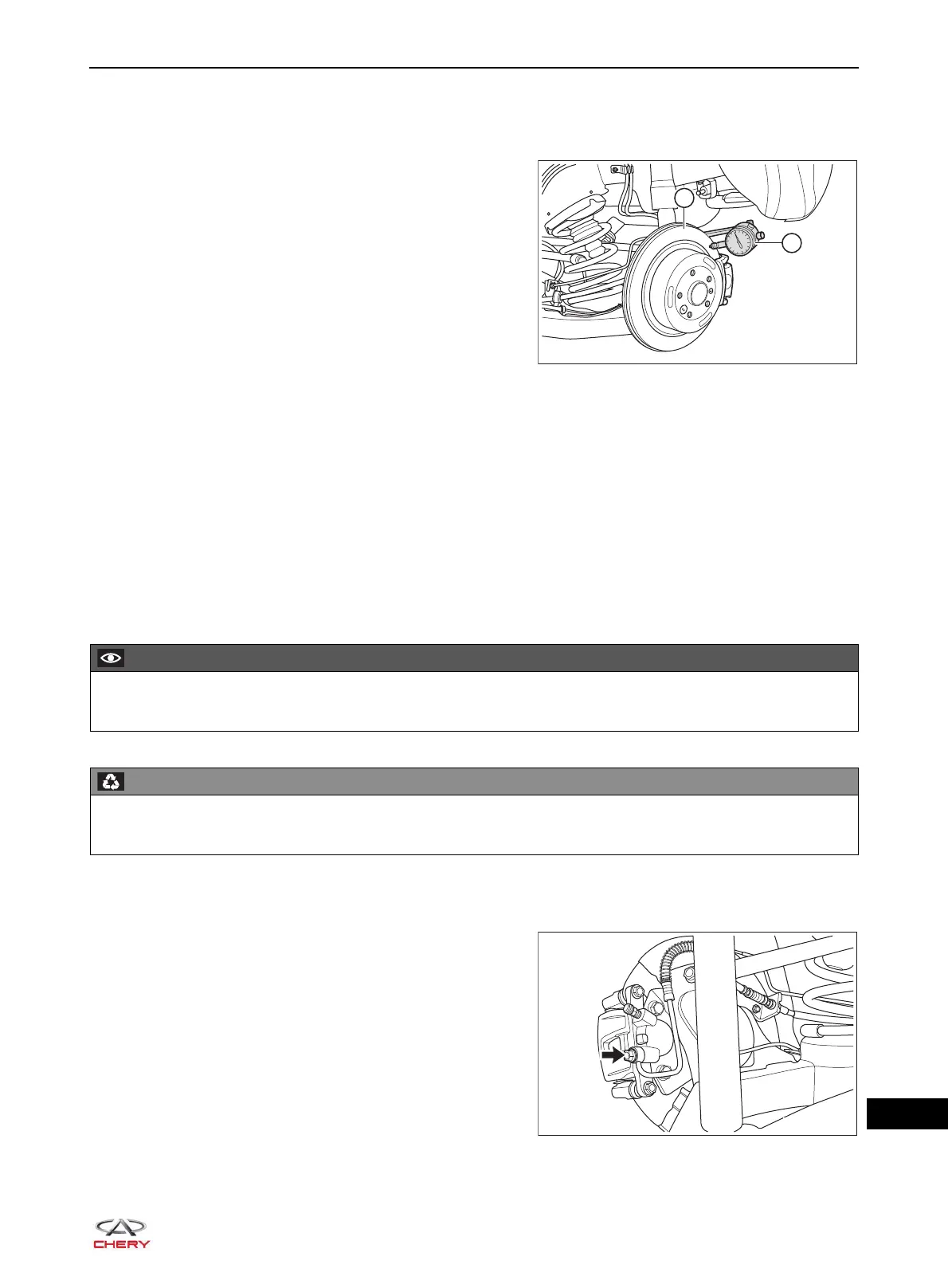

1. Check brake disc runout.
a. Remove the rear wheel (See page 24-9).
b. Secure the dial indicator (1) to the proper position.
Position the dial indicator pointer approximately 10
mm from the outer edge of rear brake disc.
c. Slowly rotate the brake disc (2) and check the runout.
Mark the lowest and highest points and record these
measurements.
d. Check the runout on the opposite side of brake disc in the same way. Mark the lowest and highest
points and record these measurements.
e. Compare the recorded runout value and limit value.ï€
Maximum runout for front brake disc: 0.06 mm
f. If the runout exceeds the maximum value, replace the brake disc.
Removal
HINT:
ï‚· Use the same procedures for the right side and left side.
ï‚· Procedures listed below are for the left side.
1. Drain the brake fluid (See page 26-13).
2. Remove the rear left wheel (See page 24-9).
3. Remove the rear left brake caliper assembly.
a. Remove the coupling bolt and washer (arrow)
between rear left brake caliper assembly and rear left
brake hose assembly.
ï€
(Tightening torque: 20 ± 2 N·m)
ï‚· Wash off brake fluid immediately if it comes in contact with any paint surface.
ï‚· Drained brake fluid should be well kept in a container. Never discard it at will.
